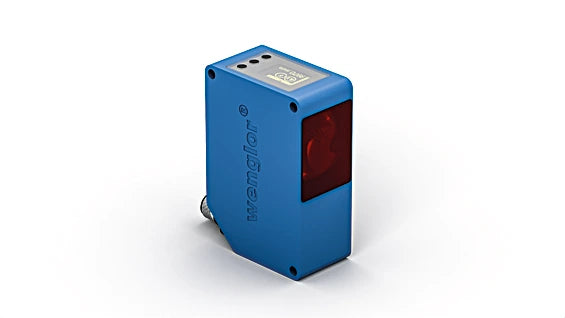

Y1TA100QXT3 - Scratch-Resistant Laser Distance Sensor with Switchable Light

Y1TA100QXT3 - Scratch-Resistant Laser Distance Sensor with Switchable Light

SKU: Y1TA100QXT3 Download PDF

Variant:
  • Y1TA100QXT3 - Scratch-Resistant Laser Distance Sensor with Switchable Light
Now $1,038.00
BEFORE   $0.00 Now $1,038.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover advanced measuring capabilities with these cutting-edge sensors, designed with scratch-resistant optics for enhanced durability Utilizing the transit time measurement method, these sensors accurately gauge the distance to an object, independent of its color, shape, or surface traits Even dark surfaces are effortlessly detected Although this product is no longer in production, it remains available for order.

Click here to explore its innovative successor!.

Features and Benefits:

    •2 mutually independent switching outputs.

    •Graphical display for easy operation.

    •Switching output A1 as analog output switchable (0...10 V/4...20 mA).

    •Temperature drift eliminable.

    •Working range of 0.1 ... 10.1 m.

    •Easy measurement with resolution between 1 ... 12 mm.

    •Switching frequency of 50 Hz.

    •Protection class III.

Specifications:

 Working Range: 0.1 ... 10.1 m
 Measuring Range: 10 m
 Resolution: 1 ... 12 mm
 Linearity: 0.5 %
 Linearity Deviation: 50 mm
 Switching Hysteresis: 3 ... 20 mm
 Light Source: Laser (red)
 Wavelength: 660 nm
 Service Life (T = +25 °C): 100,000 h
 Laser Class (EN 60825-1): 2
 Max. Ambient Light: 10,000 Lux
 Beam Divergence: < 2 mrad
 Electrical Data {'Supply Voltage:': '18 ... 30 V DC', 'Current Consumption (Ub = 24 V):': '< 100 mA', 'Switching Frequency:': '50 Hz', 'Measuring Rate:': '1 ... 100 /s', 'Response Time:': '10 ... 200 ms', 'On-/Off-Delay:': '0 ... 10,000 ms', 'Temperature Drift (-10 °C < Tu < 50 °C):': '< 0.2 mm/K', 'Temperature Drift (Tu < -10 °C, Tu > 50 °C):': '< 0.4 mm/K', 'Temperature Range:': '-25 ... 60 °C', 'Number of Switching Outputs:': '2', 'Switching Output Voltage Drop:': '< 2.5 V', 'Switching Output / Switching Current:': '200 mA', 'Analog Output:': '0...10 V', 'Short Circuit Protection:': 'yes', 'Reverse Polarity Protection:': 'yes', 'Overload Protection:': 'yes'}
 Mechanical Data {'Setting Method:': 'Menu (OLED)', 'Housing Material:': 'Plastic, ABS, Plastic, PC', 'Optic Cover:': 'Plastic, PMMA', 'Degree of Protection:': 'IP68', 'Connection:': 'M12 × 1; 4-pin'}
 Safety-relevant Data {'MTTFd (EN ISO 13849-1):': '346.68 a', 'Output Error Output:': 'yes', 'PNP NO:': 'yes', 'Configurable as PNP/NPN /Push-Pull:': 'yes', 'Analog Output:': 'yes'}
