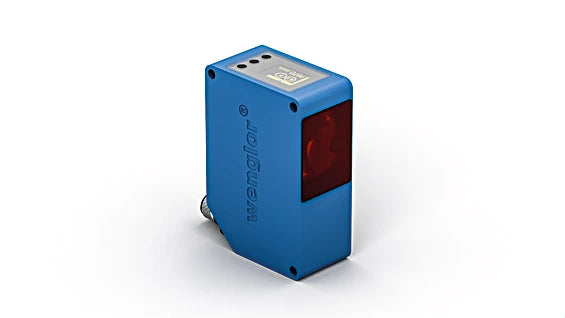

Y1TA100MHV80 - Precision Laser Distance Sensor with Scratch-Resistant Optics

Y1TA100MHV80 - Precision Laser Distance Sensor with Scratch-Resistant Optics

SKU: Y1TA100MHV80   Download PDF

Select a Variant:
  • Y1TA100MHV80 - Precision Laser Distance Sensor with Scratch-Resistant Optics
Qty:
Now $1,378.00   Web pricing policy
BEFORE   $0.00 Now $1,378.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our advanced sensors, designed with scratch-resistant optics and the capability to deactivate emitted light Utilizing the precise transit time measurement technique, these sensors accurately gauge distance while being minimally affected by the color, shape, or surface features of the detected object They successfully identify even dark surfaces with precision Ready for immediate delivery.

Features and Benefits:

    •Analog output (0...10 V/4...20 mA).

    •Graphical display for easy operation.

    •Emitted light disengageable.

    •Temperature drift eliminable.

    •Working Range: 0.1...10.1 m.

    •Measuring Range: 10 m.

    •Resolution: 1...12 mm.

    •Linearity (Working Range 0.1…5 m): 0.05 %.

    •Linearity (Working Range 5…10.1 m): 0.2 %.

    •Switching Hysteresis: 3...20 mm.

    •Light Source: Laser (red).

    •Wavelength: 660 nm.

    •Service Life (T = +25 °C): 100,000 h.

    •Laser Class (EN 60825-1): 2.

    •Max. Ambient Light: 10,000 Lux.

    •Beam Divergence: < 2 mrad.

    •Reflector required: no.

Specifications:

 Supply Voltage 18...30 V DC
 Current Consumption (Ub = 24 V) < 100 mA
 Switching Frequency 50 Hz
 Measuring Rate 1...100 /s
 On-/Off-Delay 0...10,000 ms
 Temperature Drift (-10 °C < Tu < 50 °C) < 0.2 mm/K
 Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 0.4 mm/K
 Temperature Range -25...60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 FDA Accession Number 0710891-002
 Setting Method Menu (OLED)
 Housing Material Plastic, ABS, Plastic, PC
 Optic Cover Plastic, PMMA
 Degree of Protection IP68
 Connection M12 × 1; 8-pin
 MTTFd (EN ISO 13849-1) 345.73 a
 Output Error Output yes
 PNP NO yes
 Analog Output yes
 Display brightness may decrease with age. This does not result in any impairment of the sensor function.
