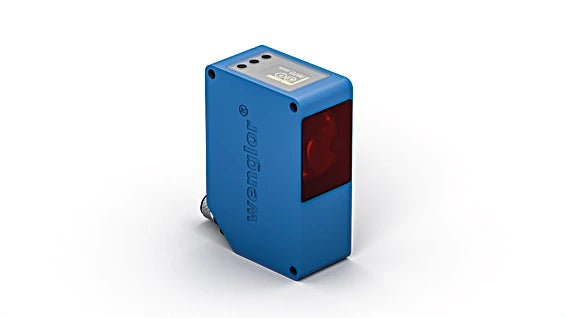

Y1TA100MHT88 - Scratch-Resistant Laser Distance Sensor for Reliable Measurements

SKU: SKU: Y1TA100MHT88 Download PDF

Variant:

Y1TA100MHT88 - Scratch-Resistant Laser Distance Sensor for Reliable Measurements

Now $1,378.00

~~BEFORE $0.00~~ Now $1,378.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable precision with these advanced sensors, which feature scratch-resistant optics and the capability to turn off emitted light Utilizing the transit time measurement method, they effectively gauge the distance from the sensor to various objects This design minimizes the influence of an object's color, shape, and surface traits on the readings, ensuring accurate detection even for darker items.

Features and Benefits:

•Analog output (0...10 V/4...20 mA).

•Graphical display for easy operation.

•Emitted light can be disengaged.

•Temperature drift can be eliminated.

Specifications:

Working Range	0.1 ... 10.1 m
Measuring Range	10 m
Resolution	1 ... 12 mm
Linearity (Working Range 0.1…5 m)	0.05 %
Linearity (Working Range 5…10.1 m)	0.2 %
Switching Hysteresis	3 ... 20 mm
Light Source	Laser (red)
Wavelength	660 nm
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	2
Max. Ambient Light	10,000 Lux
Beam Divergence	< 2 mrad
Electrical Data	{'Supply Voltage': '18 ... 30 V DC', 'Current Consumption (Ub = 24 V)': '< 100 mA', 'Switching Frequency': '50 Hz', 'Measuring Rate': '1 ... 100 /s', 'On-/Off-Delay': '0 ... 10,000 ms', 'Temperature Drift (-10 °C < Tu < 50 °C)': '< 0.2 mm/K', 'Temperature Range': '-25 ... 60 °C', 'Number of Switching Outputs': '1', 'Switching Output Voltage Drop': '< 2.5 V', 'Switching Output / Switching Current': '200 mA', 'Analog Output': '0...10 V', 'Short Circuit Protection': 'yes', 'Reverse Polarity Protection': 'yes', 'Overload Protection': 'yes', 'Interface': 'RS-232'}
Mechanical Data	{'Setting Method': 'Menu (OLED)', 'Housing Material': 'Plastic, ABS, PC', 'Optic Cover': 'Plastic, PMMA', 'Degree of Protection': 'IP68', 'Connection': 'M12 × 1; 8-pin'}
Safety-relevant Data	{'MTTFd (EN ISO 13849-1)': '345.73 a', 'Output Error Output': 'yes', 'PNP NO': 'yes', 'Analog Output': 'yes', 'RS-232 Interface': 'yes'}
