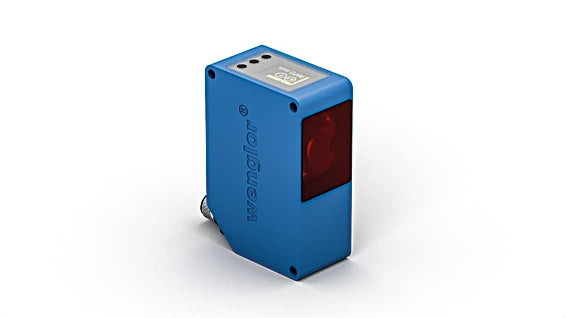

X1TA100QXT3 - Precision Laser Distance Sensor with Scratch-Resistant Optics

X1TA100QXT3 - Precision Laser Distance Sensor with Scratch-Resistant Optics

SKU: X1TA100QXT3 Download PDF

Variant:
  • X1TA100QXT3 - Precision Laser Distance Sensor with Scratch-Resistant Optics
Now $727.00
BEFORE   $0.00 Now $727.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced sensors featuring scratch-resistant optics, designed for precision and reliability These sensors utilize the transit time measurement technique to accurately gauge the distance to any object By employing an appropriate reflector, they can achieve exceptional accuracy even over lengthy distances Users can easily navigate configurations via a menu, with the option to secure settings with a password for added protection.

Although this product has been discontinued, it remains available for order.

Features and Benefits:

    •Emitted light disengageable.

    •Graphical display for easy operation.

    •Temperature drift eliminable.

    •Switching output A1 as analog output switchable (0...10 V/4...20 mA).

Specifications:

 Working Range: 100 ... 10,200 mm
 Analog Working Range: 200 ... 10,200 mm
 Measuring Range: 10,000 mm
 Reference Reflector / Reflector Foil: RF508
 Resolution: 2 ... 6 mm
 Linearity: 0.5 %
 Linearity Deviation: 50 mm
 Switching Hysteresis: 3 ... 20 mm
 Light Source: Laser (red)
 Wavelength: 660 nm
 Service Life (T = +25 °C): 100,000 h
 Laser Class (EN 60825-1): 1
 Max. Ambient Light: 10,000 Lux
 Beam Divergence: < 2 mrad
 Reflector required: yes
 Supply Voltage: 18 ... 30 V DC
 Current Consumption (Ub = 24 V): < 100 mA
 Switching Frequency: 50 Hz
 Measuring Rate: 1 ... 100 /s
 Response Time: 10 ... 200 ms
 On-/Off-Delay: 0 ... 10,000 ms
 Temperature Drift (-10 °C < Tu < 50 °C): < 0.2 mm/K
 Temperature Drift (Tu < -10 °C, Tu > 50 °C): < 0.4 mm/K
 Temperature Range: -25 ... 60 °C
 Number of Switching Outputs: 2
 Switching Output Voltage Drop: < 2.5 V
 Switching Output / Switching Current: 200 mA
 Analog Output: yes
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 FDA Accession Number: 0920382-000
 Setting Method: Menu (OLED)
 Housing Material: Plastic, ABS, Plastic, PC
 Optic Cover: Plastic, PMMA
 Degree of Protection: IP68
 Connection: M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1): 346.68 a
 Output Error Output: yes
 PNP NC: yes
 Adjustable parameters Analog output: 0...10 V, 4...20 mA
