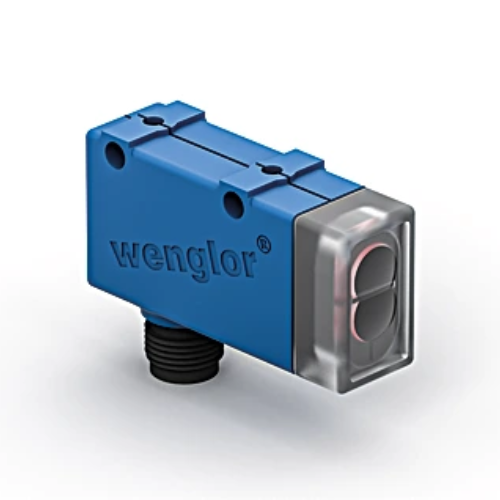

WM03PCT2 - Compact White Light Sensor for Accurate Print Mark Detection

WM03PCT2 - Compact White Light Sensor for Accurate Print Mark Detection

SKU: WM03PCT2 Download PDF

Variant:
  • WM03PCT2 - Compact White Light Sensor for Accurate Print Mark Detection
Now $285.00
BEFORE   $0.00 Now $285.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced sensors specifically engineered for detecting print marks These compact devices utilize a durable white light LED, ensuring a long lifespan With the capability to recognize a wide range of color combinations and discern differences in brightness between print marks and backgrounds, only one sensor is necessary for effective operation.

Features and Benefits:

    •Small light spot.

    •Compact housing.

    •White light for recognition of any print mark combinations.

    •Teach-in, external teach-in.

Specifications:

 Working Range 12 ... 18 mm
 Working Distance 15 mm
 Resolution (Gray Scale) 20
 Switching Hysteresis < 2 %
 Light Source White Light
 Wavelength 400 ... 700 nm
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 1.5 × 2.5 mm
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 30 mA
 Switching Frequency 5 kHz
 Response Time 100 µs
 Off-Delay 20 ms
 Off-Delay (RS-232) 0 ... 2 s
 Temperature Drift < 2 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Teach Mode ZT, FT
 Protection Class III
 Setting Method Teach-In
 Housing Material Plastic, PBT
 Optic Cover Plastic, PMMA
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 2,164.07 a
 Output PNP NO / NC switchable yes
 RS-232 with Adapterbox yes
 Adjustable parameters Circuit NC
 NC/NO NO
