Description:

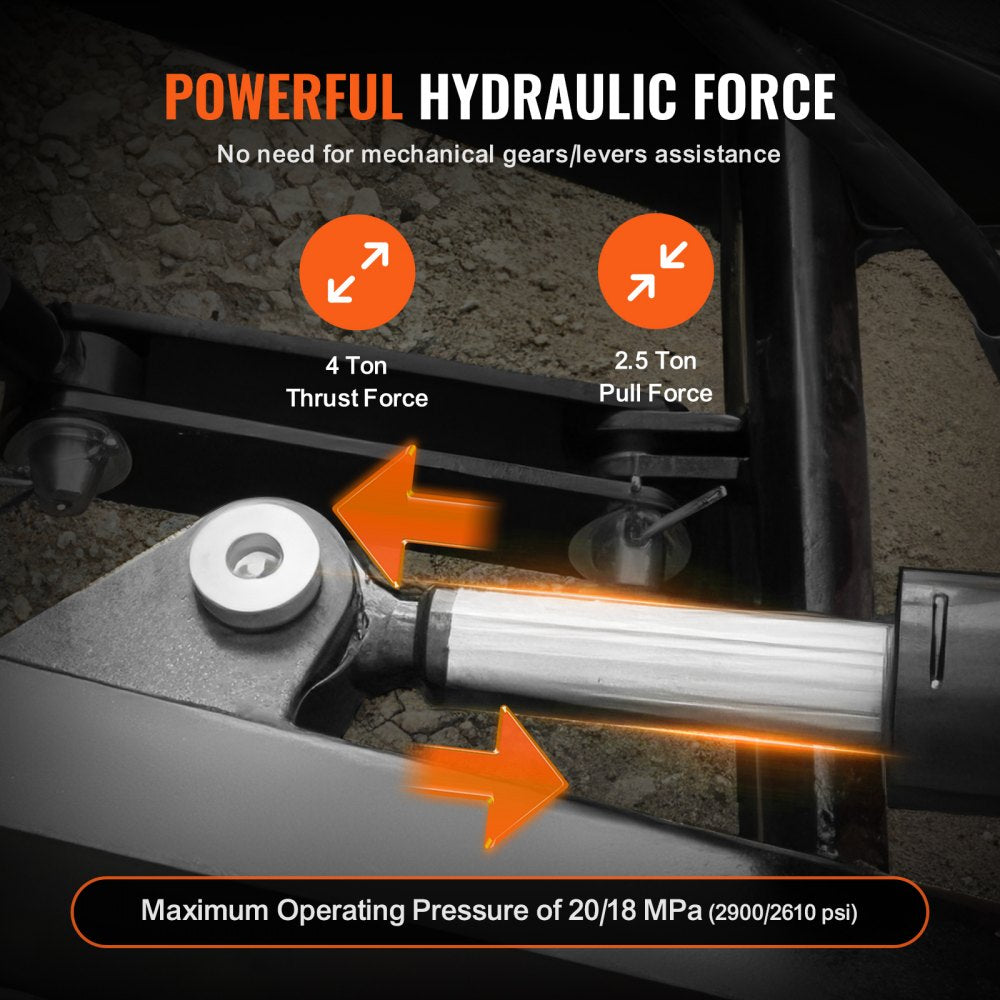

Enhance your heavy-duty farming tasks with the VEVOR hydraulic top link, specifically designed for category 2 tractors Whether you're plowing, recycling waste, or transporting materials, this robust tool is built to tackle challenging conditions while ensuring efficiency and dependability It boasts an impressive hydraulic cylinder that provides a pushing force of 4 tons and a pulling force of 24 tons, making it ideal for demanding workloads.
With a maximum working pressure of 20/18 MPa, this top link guarantees powerful performance Included with your purchase are hoses and a check valve, allowing for immediate use right out of the box This hydraulic top link is engineered to streamline your toughest tasks with ease.
Features and Benefits:

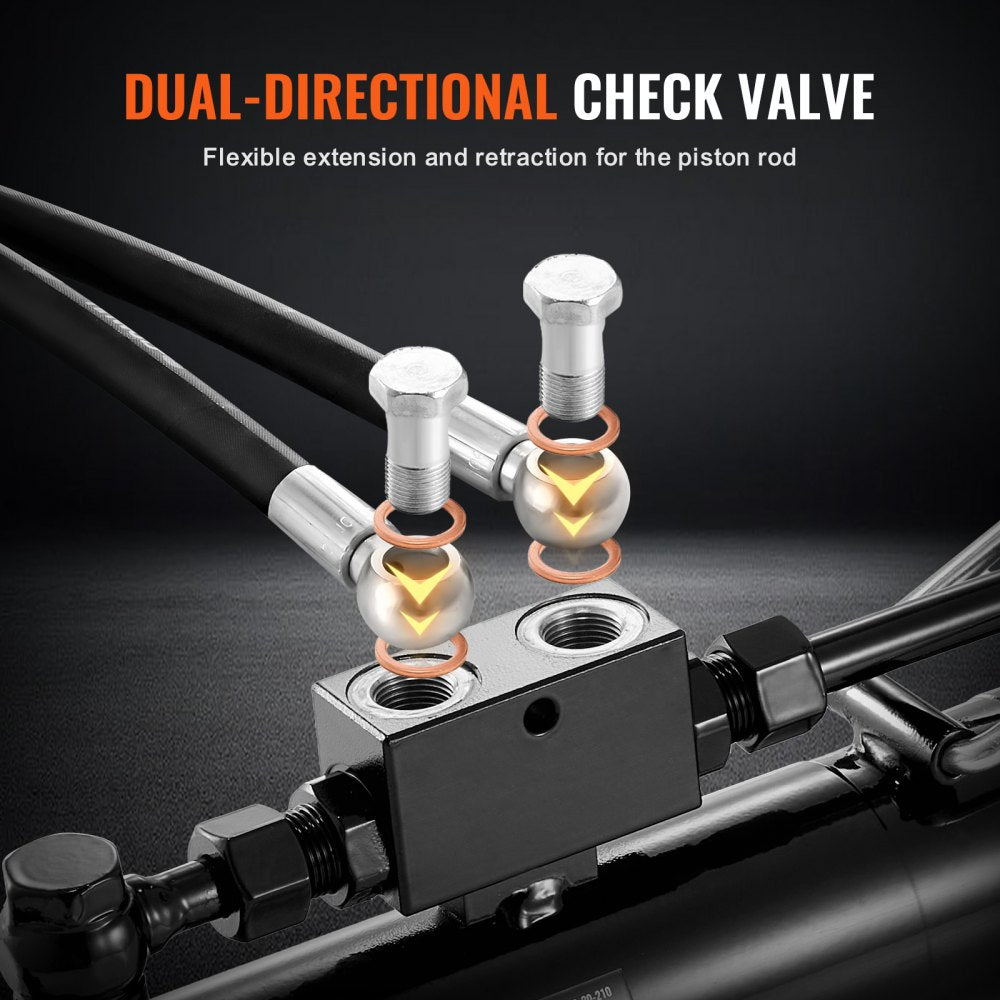

•High-Sealing Check Valve ensures minimal oil leakage and precise control..
•Compatible with Cat. 2-2 tractors for diverse applications..

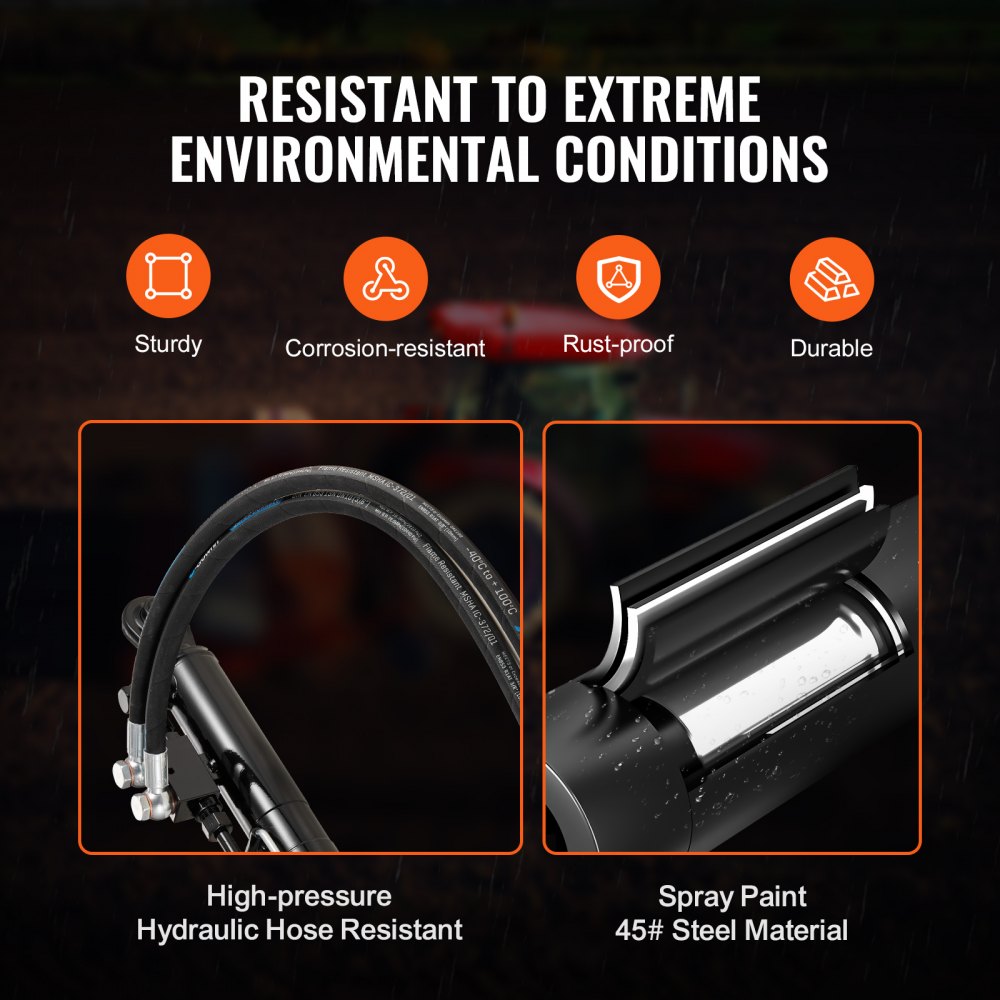

•Durable 45# Steel construction withstands harsh conditions..
•Easy installation with included high-pressure-resistant hoses..
•Plowing.
•Waste recycling.
•Transportation.

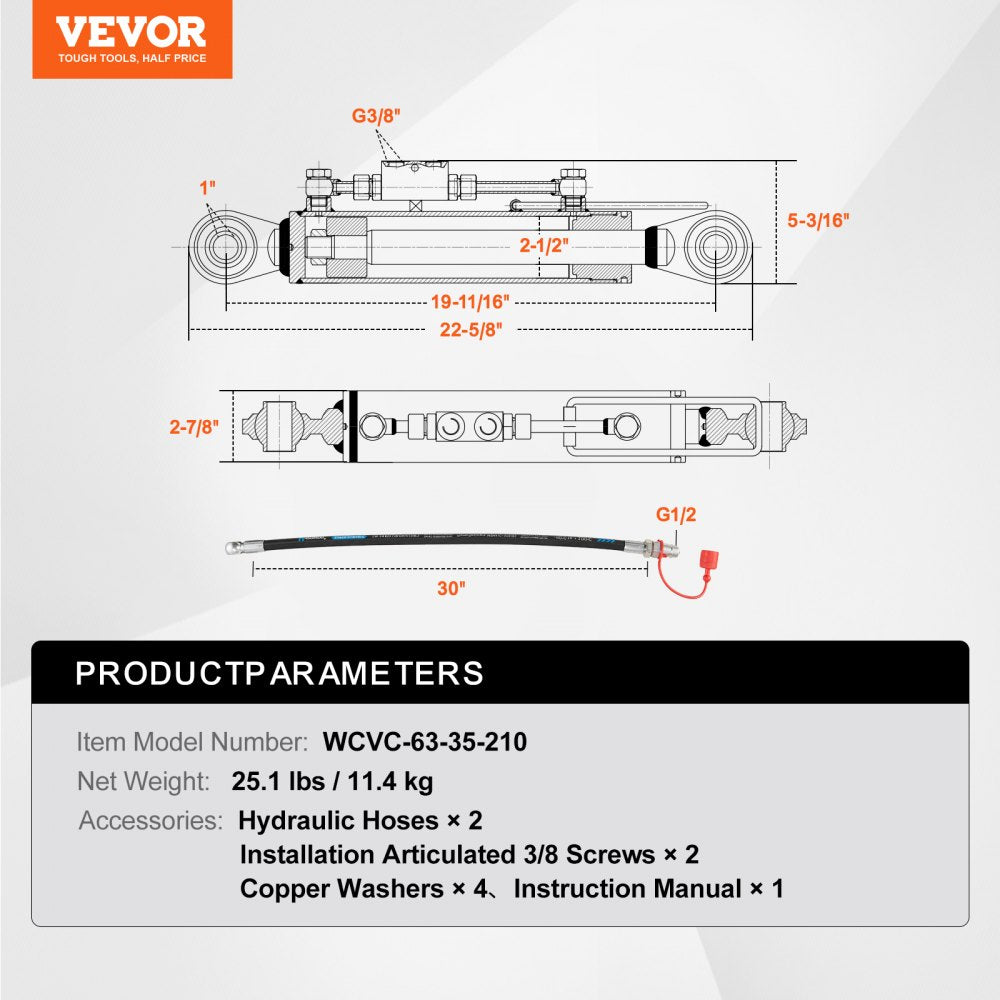

Specifications:

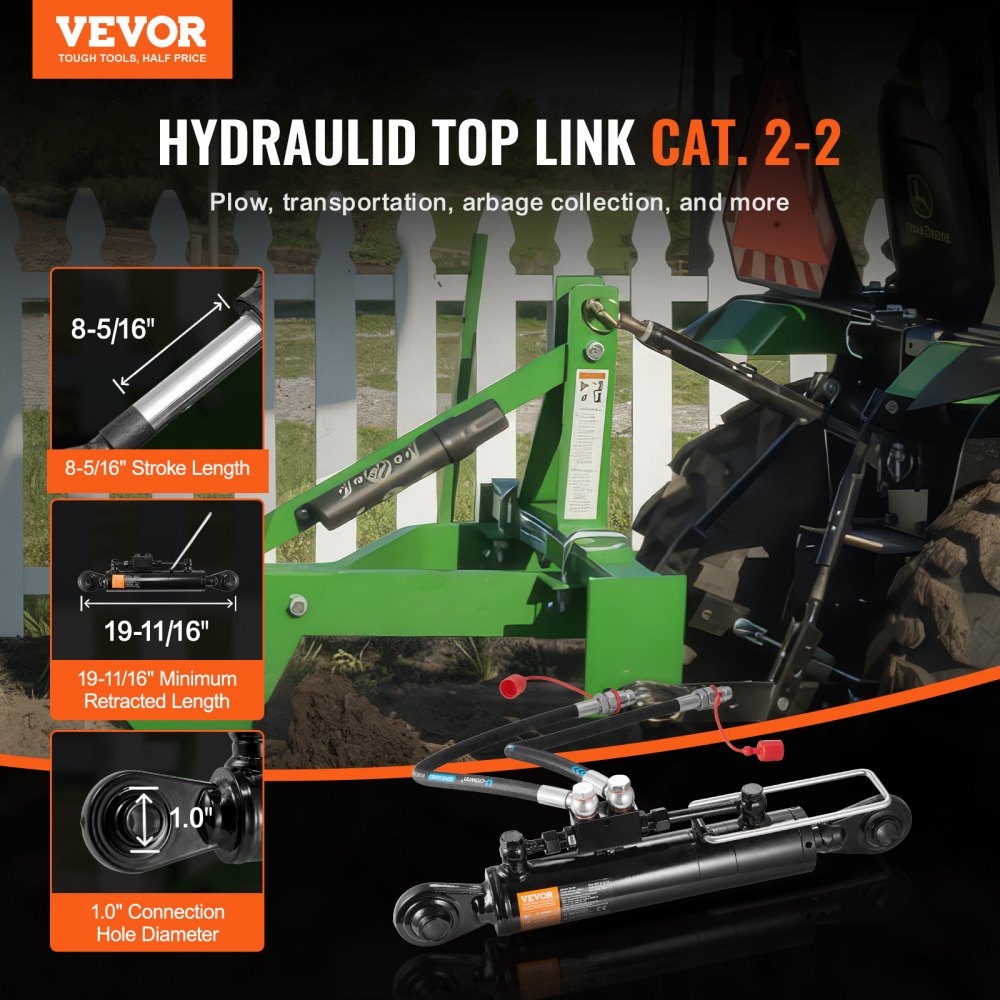

| Minimum Retracted Length | 19-11/16 inch (500 mm) |
| Stroke | 8-5/16 inch (211 mm) |
| Cylinder Diameter (I.D.) | 2.5 inch (Φ63 mm) |
| Outer Diameter | 2-7/8 inch (Φ73 mm) |
| Piston Rod Diameter | 1.4 inch (Φ35 mm) |
| Connection Hole Diameter | 1.0 inch (Φ25.5 mm) |
| Connection Hole Width | 2.0 inch (51 mm) |
| Thrust Force | 4 Tons |
| Pull Force | 2.4 Tons |
| Check Valve Inlet/Outlet Port | G3/8" |
| Maximum/Rated Working Pressure | 20/18 Mpa (2900/2610 psi) |
| Compatible Equipment | Class Ⅱ Tractors |
| Hydraulic Hose | Defined by connection specs |
| Fitting Type | G1/2 |
| Color and Surface Treatment | Black Paint |
| Main Material | 45# Steel |
| Net Weight | 25.1 lbs (11.4 kg) |
| Product Dimensions | 22.6 × 5.2 × 2.9 inch (575 × 132 × 73 mm) |
