Description:

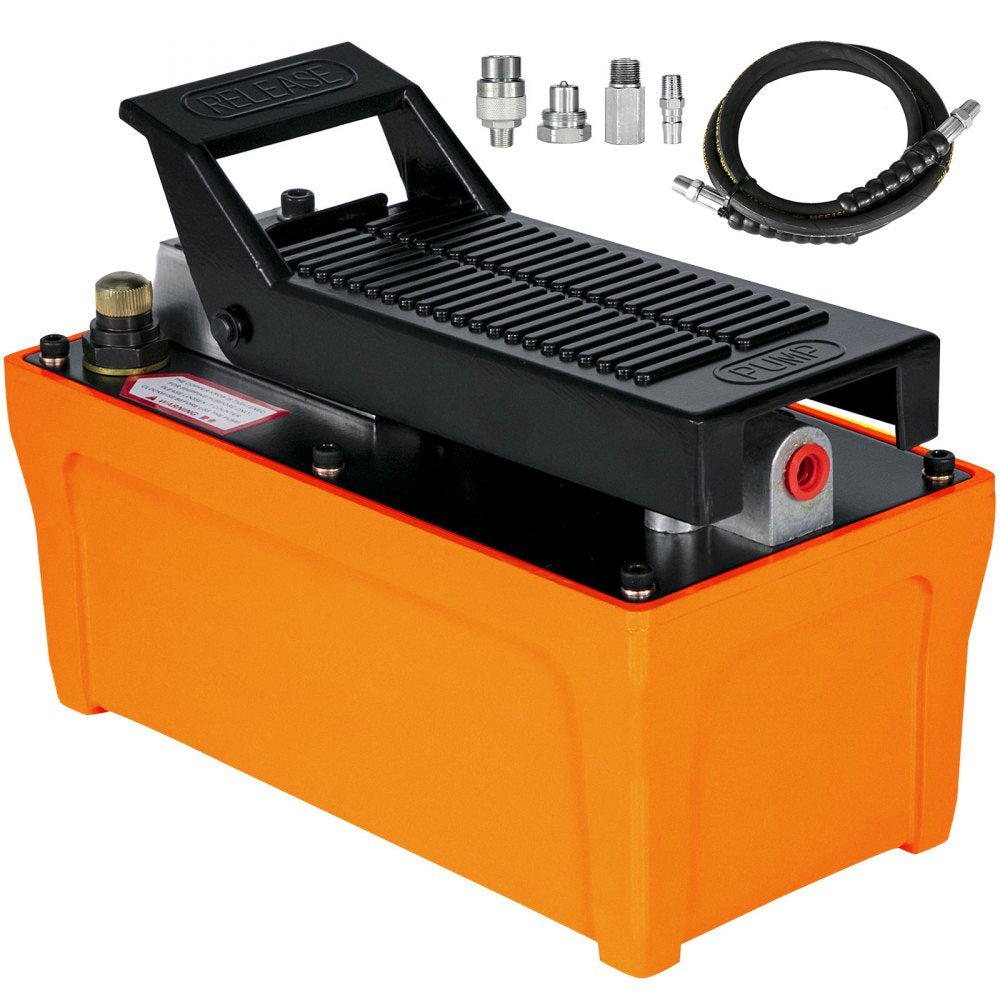

Discover the power of this high-pressure air-driven hydraulic pump, built for strength and longevity while providing enhanced oil flow Its foot-actuated mechanism allows for effortless hands-free operation, making it incredibly user-friendly Designed to exceed performance standards, this pump features excellent metering capabilities for accurate control, making it the ideal solution for all your hydraulic needs in an auto body shop.
Features and Benefits:

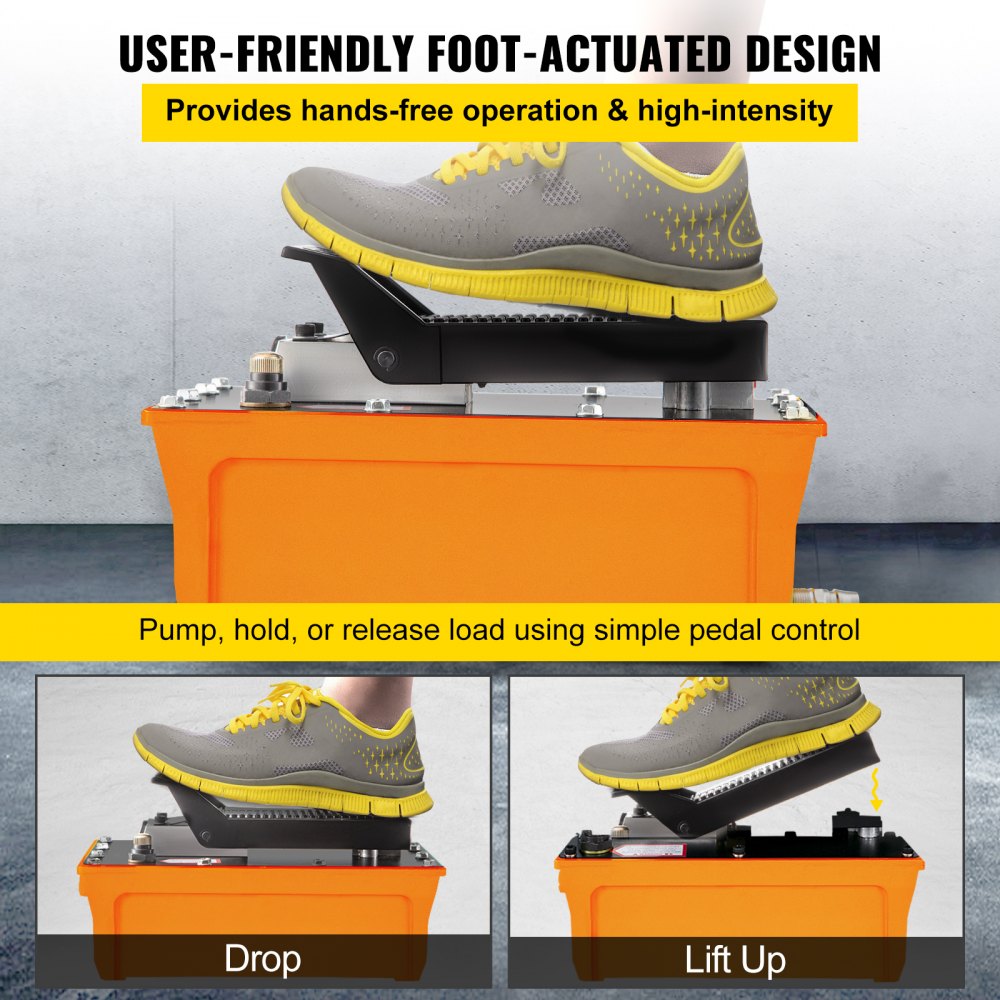

•Foot-Actuated Design.

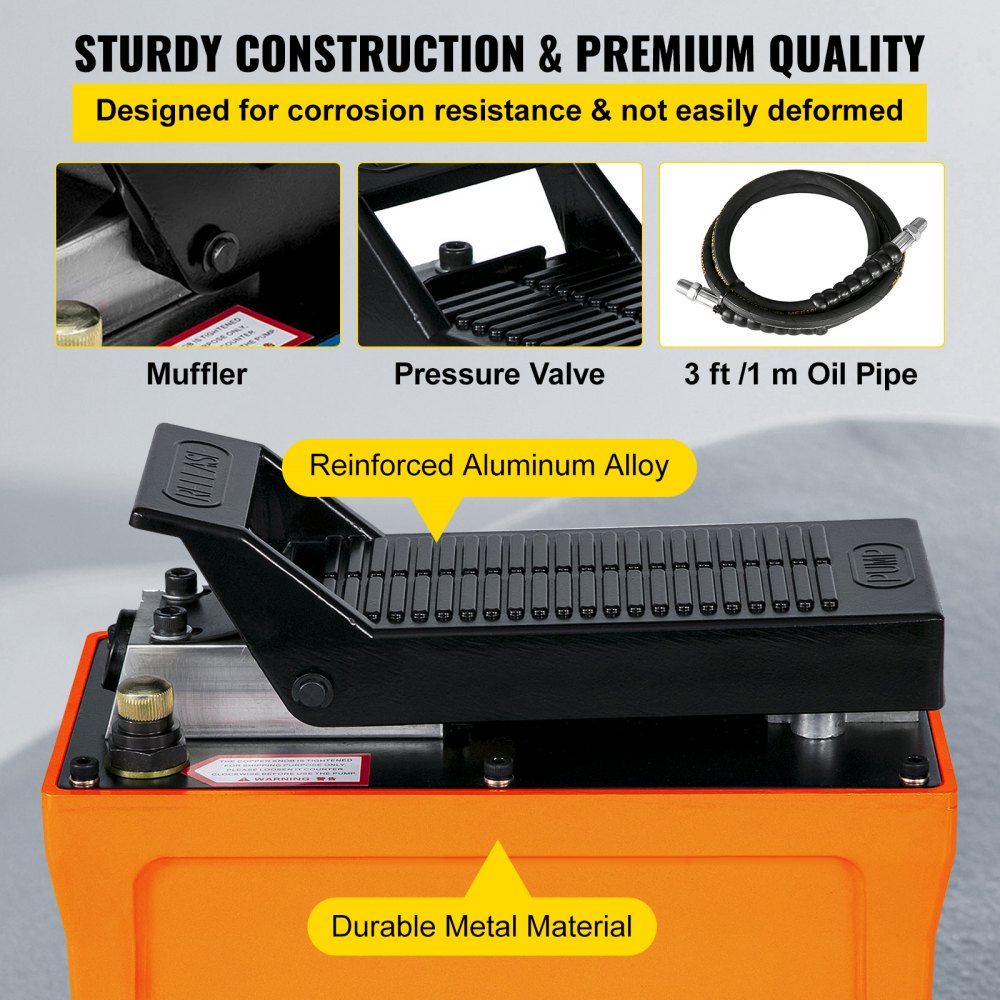

•Sturdy & Compact Construction.
•Durable Oil Pipe Included.
•10,000 PSI for Wide Application.
•Simple Foot Pedal Control.
•Premium Quality & Structure.
•1.6L Large Oil Tank.

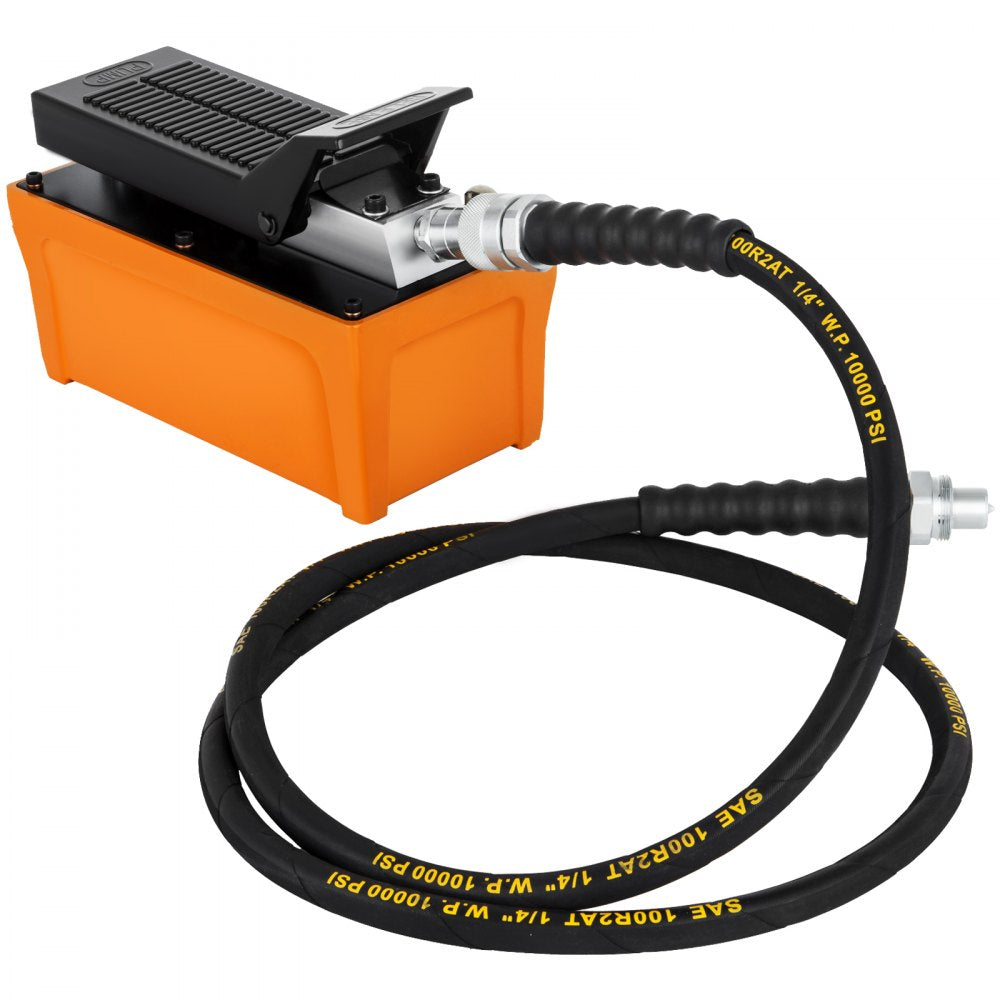

•High-Pressure Hydraulic Hose.

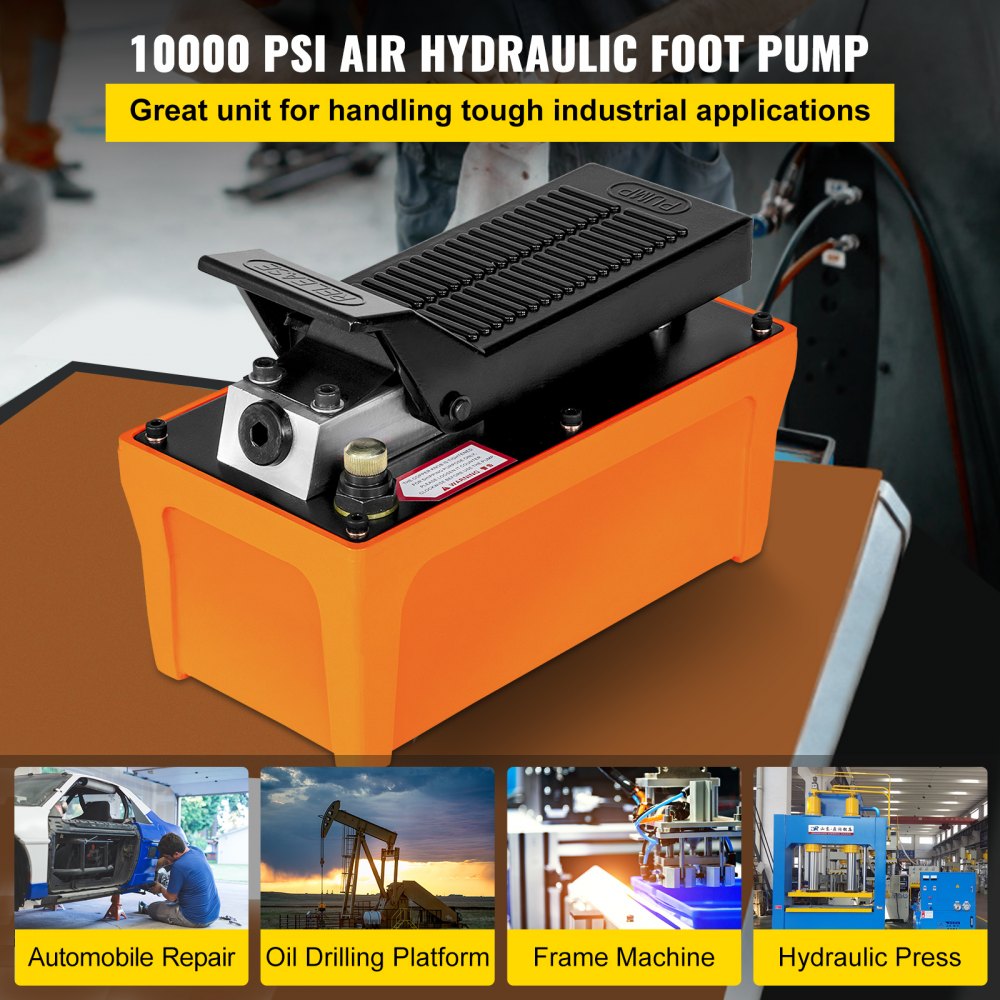

•Multiple Application.
•Heavy machinery rigging and moving.
•Auto repair.
•Oil rigging.
•Machine maintenance.
Specifications:
| Type | Air Powered Hydraulic Pump |
| Action | Single Acting |
| Control | Foot pedal pump - Release pressure to return fluid |

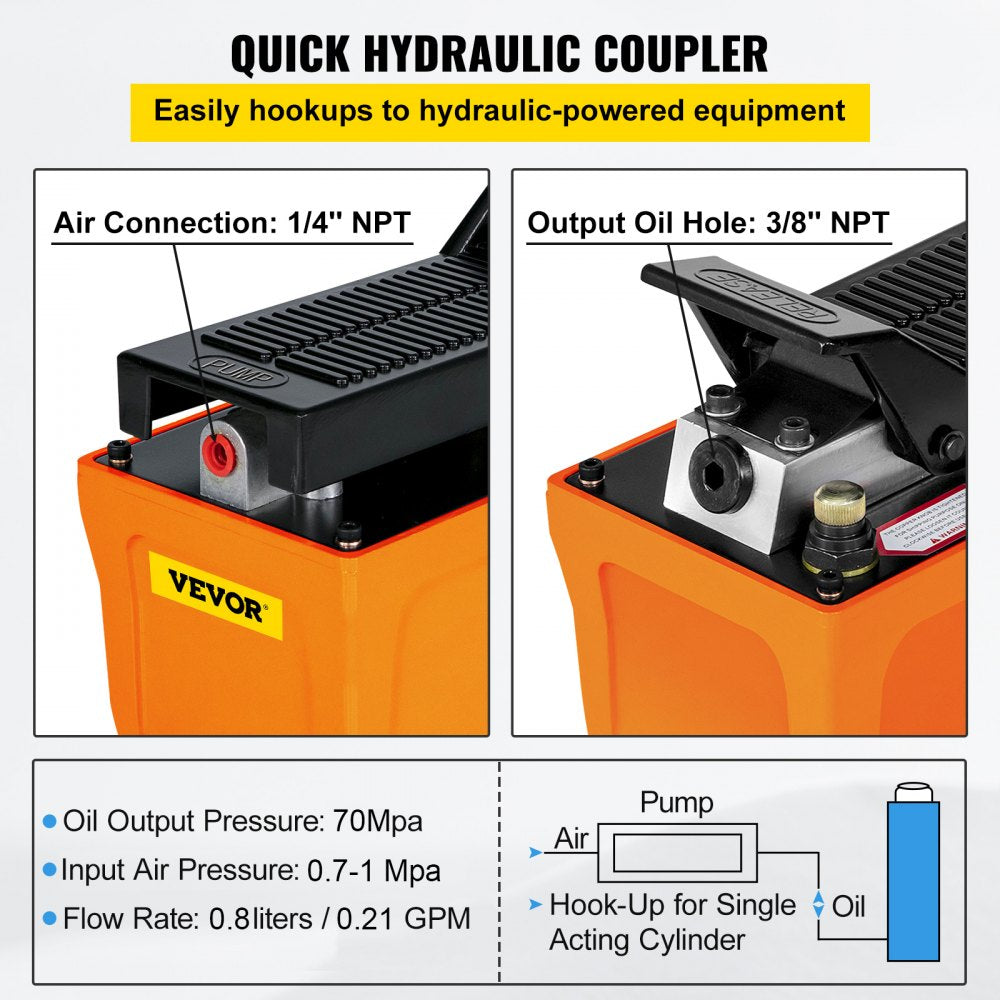

| Includes Hydraulic Hose | 1 m / 3 ft with 3/8'' NPT - Quick hydraulic coupler |
| Flow Rate | 0.8 liters / 0.21 gallons per minute |
| Air Connection | 1/4" Female NPT |
| Output Oil Hole | 3/8'' NPT Connection |

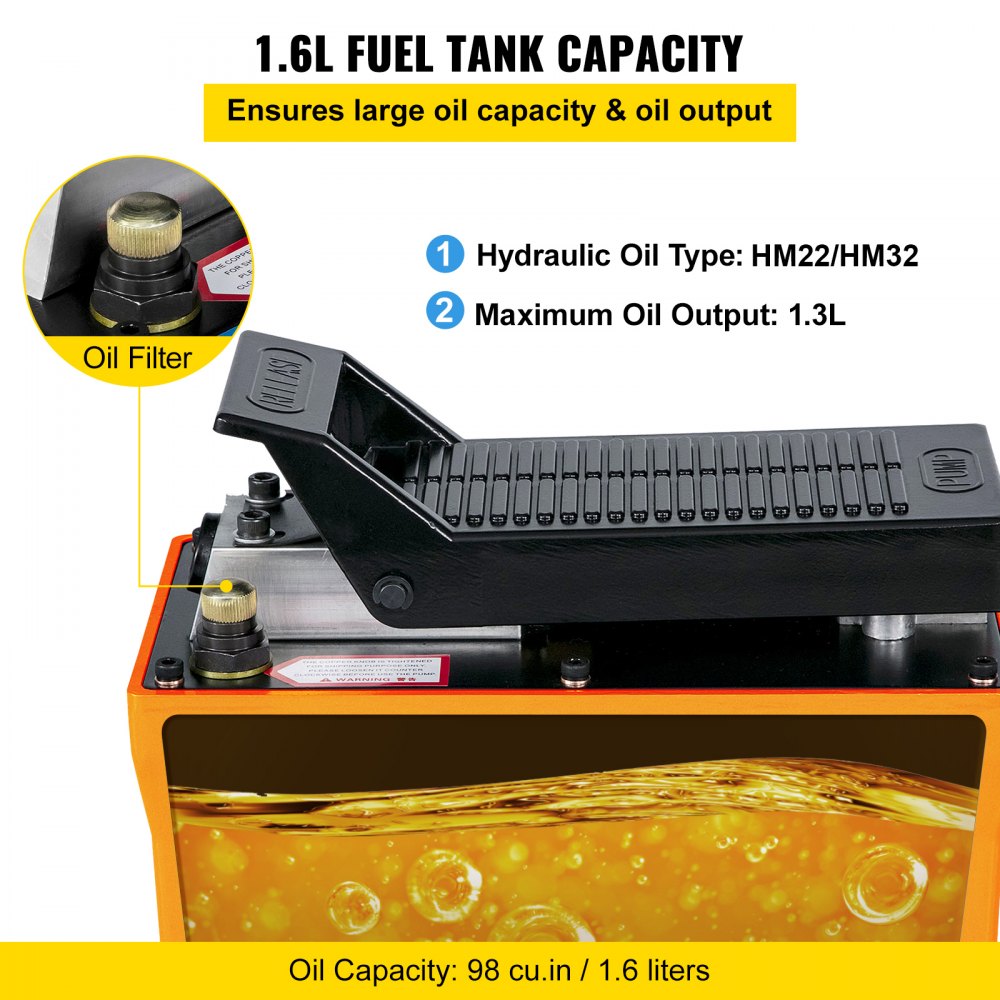

| Hydraulic Oil Type | HM22/HM32 |
| Oil Capacity | 98 Cubic Inches / 1.6 Liters(1600 cc) |
| Input Air Pressure | 0.7-1MPa |
| Shell Material | Reinforced Aluminum Alloy |
| Fuel Tank Capacity | 1.6L |
| Capacity Tolerance | ± 0.1L |
| Maximum Oil Output | 1.3L |
| Oil Output Pressure | 70MPa |
| Pressure Range | ≥ 0.5 |
| Max Output Hydraulic Pressure | 10000 psi, 700 kg/square cm |
| Total Mass | 8.0 kg / 17.64 lbs |
| Overall Dimensions(L x W x H) | 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09'' |
