Description:

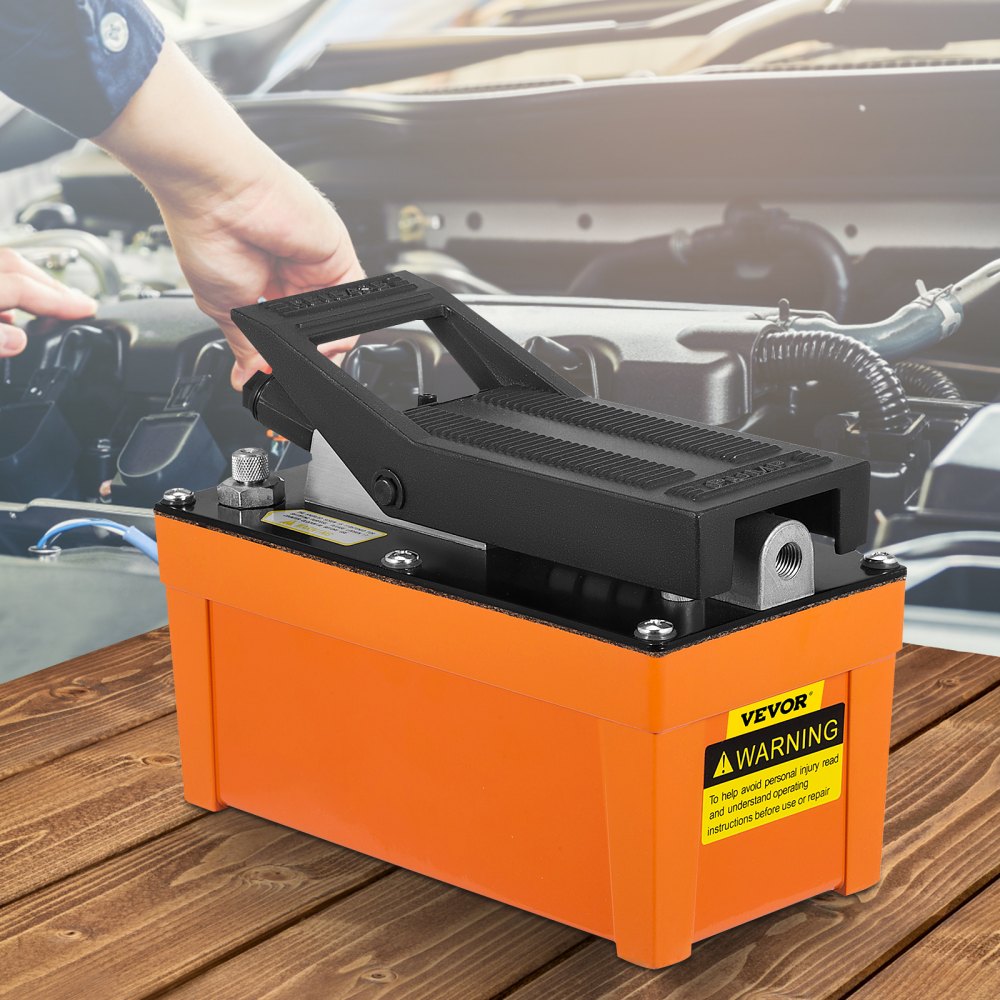

Experience powerful and efficient hydraulic performance with this high-pressure, air-operated hydraulic pump Built for reliability and longevity, it offers a superior oil flow, making it an excellent choice for compact air-over-hydraulic applications The convenient foot-actuated mechanism allows for effortless hands-free use Designed to exceed user expectations, this pump delivers exceptional control and precision, making it an essential tool for any auto body shop operation.
Features and Benefits:
•Foot-Actuated Design.

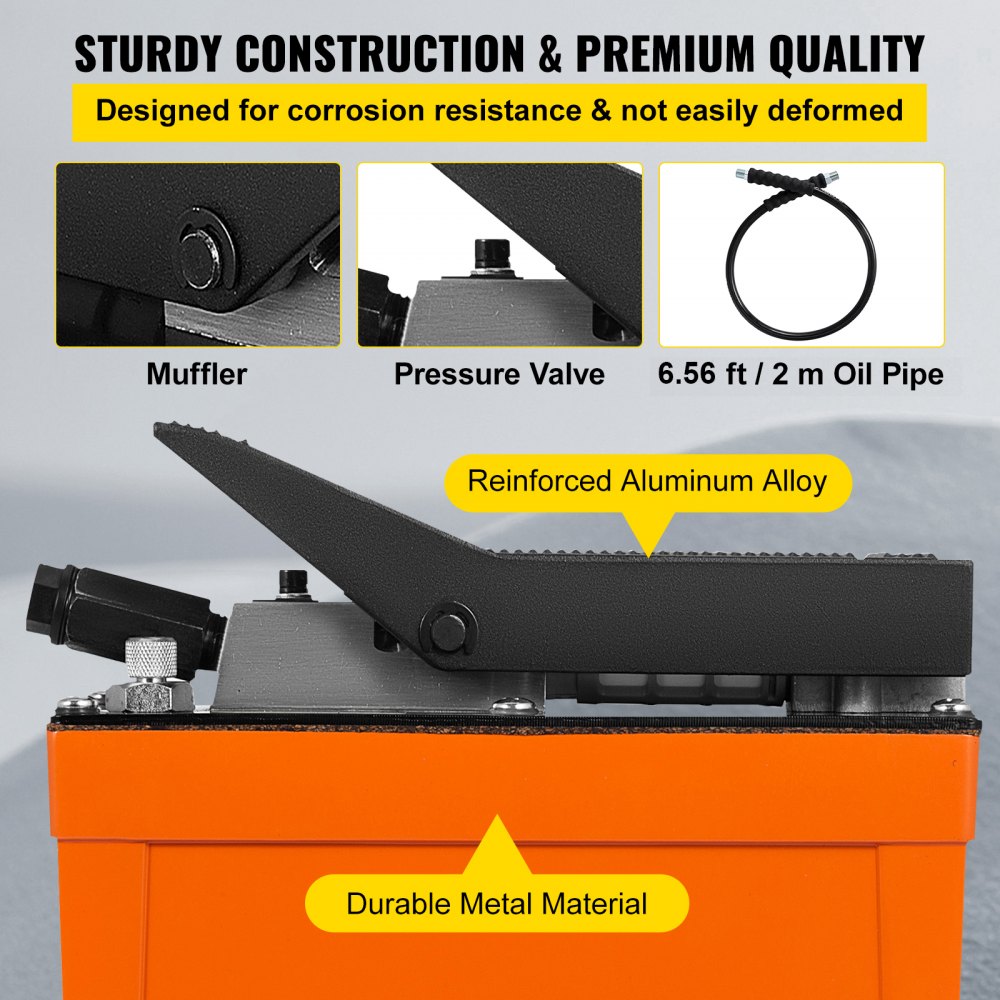

•Sturdy & Compact Construction.

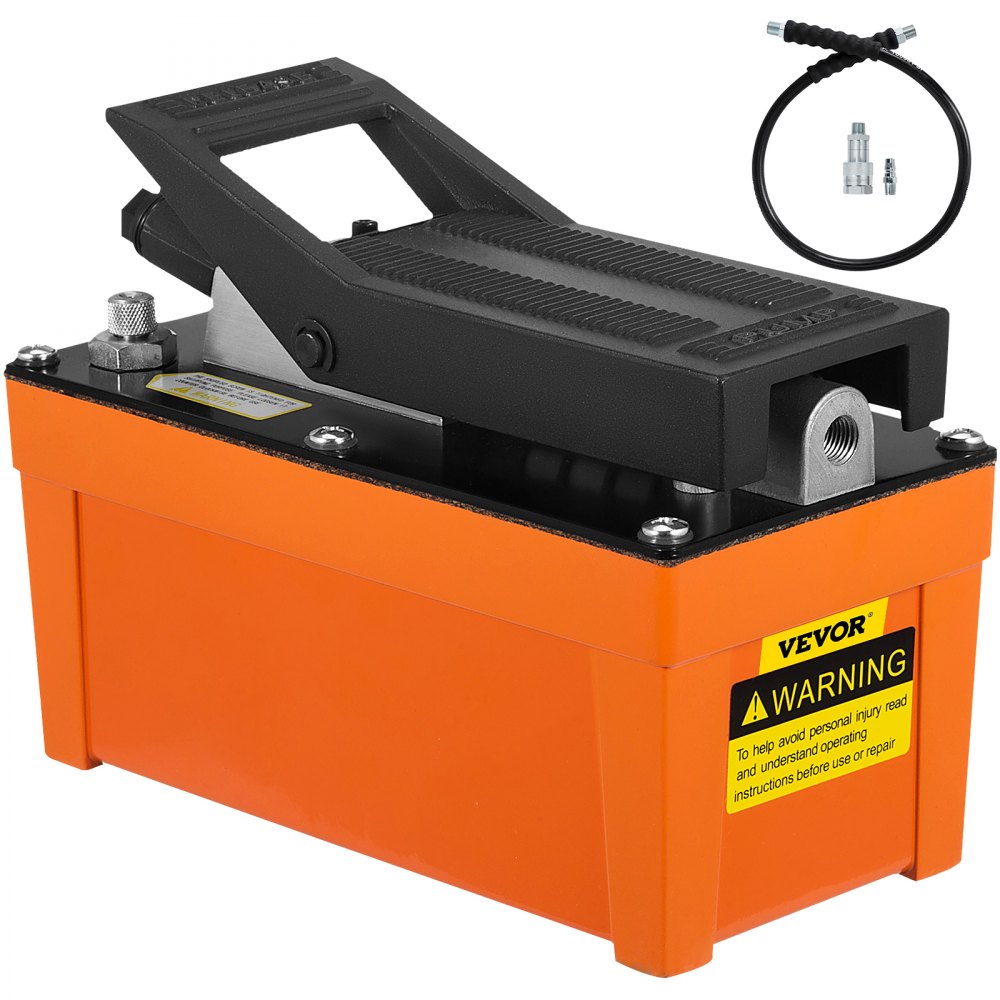

•Durable Oil Pipe Included.
•10,000 PSI for Wide Application.
•Premium Quality & Structure.
•Heavy machinery rigging and moving.
•Auto repair.
•Oil rigging.
•Machine maintenance.
Specifications:
| Type | Air Powered Hydraulic Pump |
| Action | Single Acting |
| Control | Foot pedal pump - Release pressure to return fluid |
| Includes Hydraulic Hose | 2 m / 6.56 ft with 3/8'' NPT - Quick hydraulic coupler |
| Flow Rate | 0.8 liters / 0.21 gallons per minute |
| Air Connection | 1/4" Female NPT |
| Output Oil Hole | 3/8'' NPT Connection |
| Hydraulic Oil Type | HM22/HM32 |
| Oil Capacity | 98 Cubic Inches / 1.6 Liters (1600 cc) |
| Air Pressure Range | 0.7-1MPa |
| Shell Material | Reinforced Aluminum Alloy |
| Fuel Tank Capacity | 1.6L |
| Capacity Tolerance | ± 0.1L |
| Maximum Oil Output | 1.3L |
| Oil Output Pressure | 70MPa |
| Pressure Range | ≥0.5 |
| Max Output Hydraulic Pressure | 10000 psi / 700 bar |
