Description:
Experience powerful performance with this air-operated hydraulic pump, engineered for strength and longevity Designed for optimal oil flow, it excels in providing compact air over hydraulic functions The intuitive foot-operated mechanism allows for easy hands-free maneuvering, enhancing workflow efficiency Tailored to meet the demands of precision, this pump boasts excellent performance and fine-tuning capabilities, making it an essential tool for all your automotive body shop hydraulic tasks.
Features and Benefits:

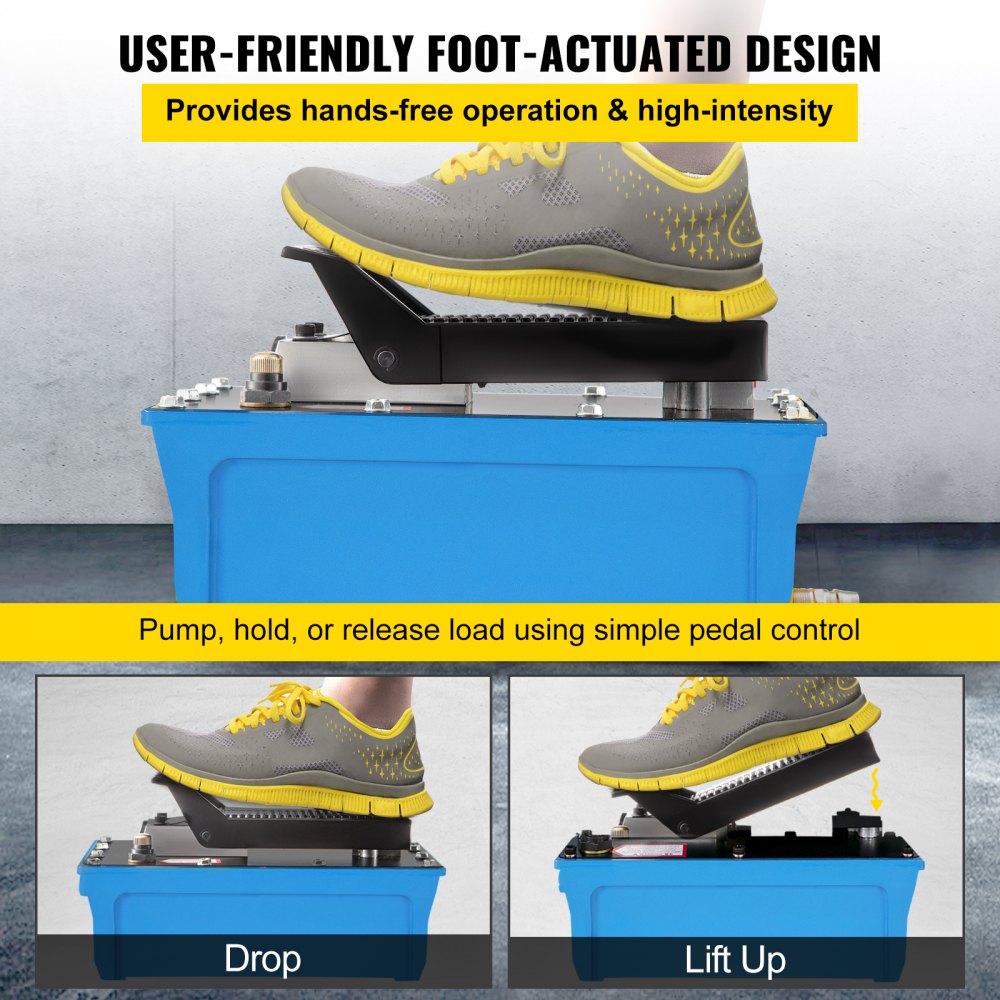

•Foot-Actuated Design.

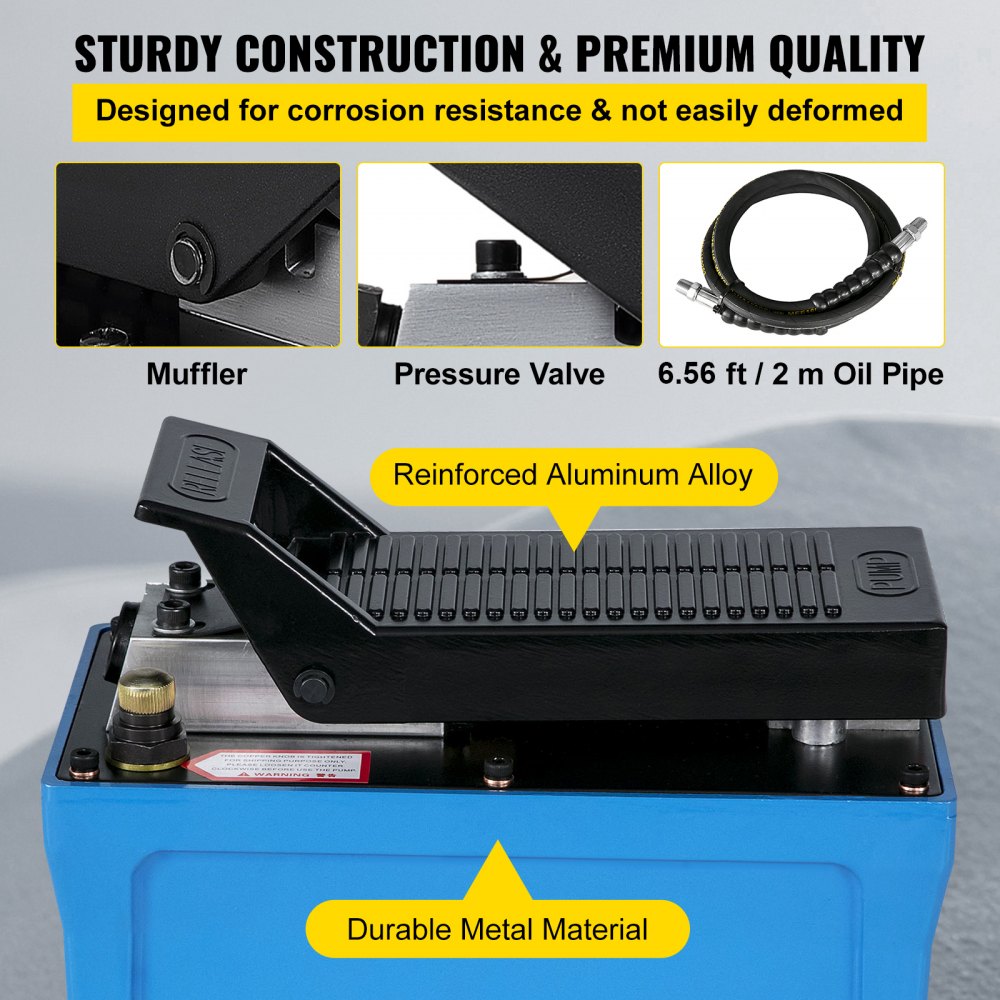

•Sturdy & Compact Construction.
•Durable Oil Pipe Included.

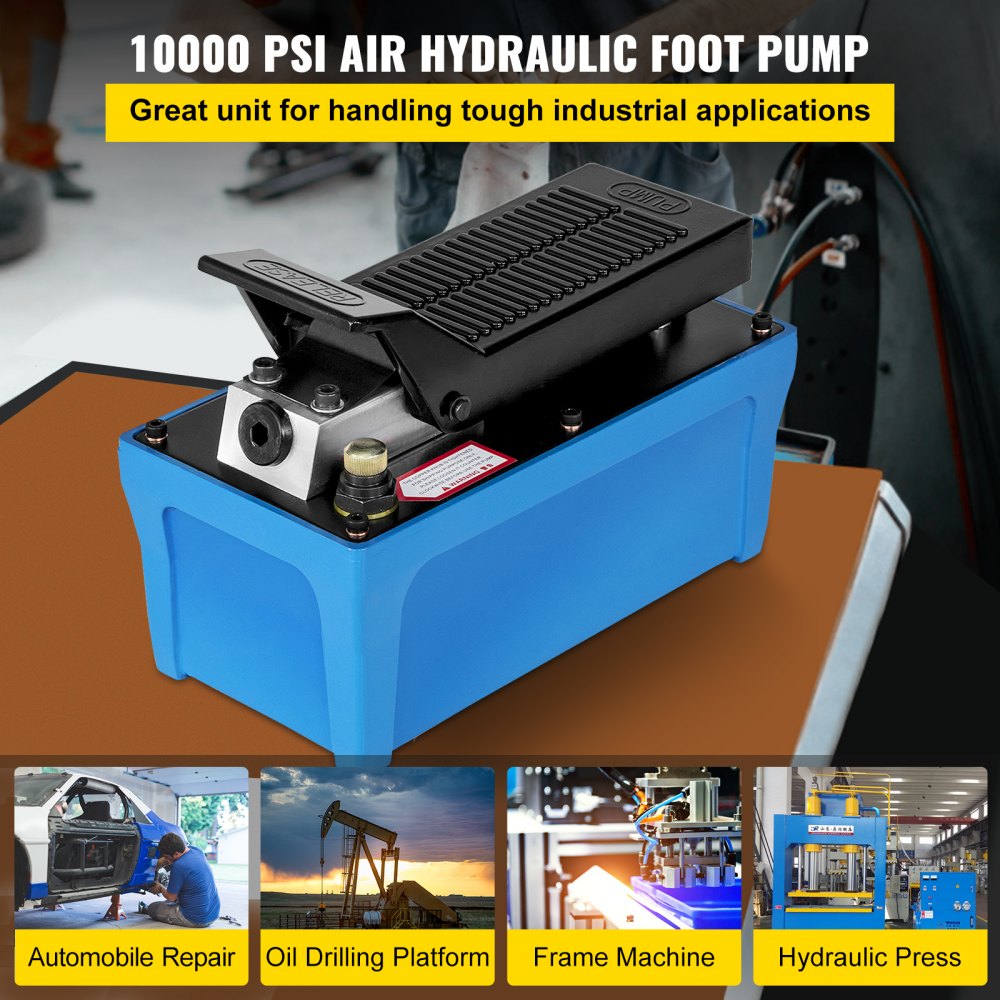

•10,000 PSI for Wide Application.
•Heavy machinery rigging and moving.
•Auto repair.
•Oil rigging.
•Machine maintenance.
Specifications:
| Type | Air Powered Hydraulic Pump |
| Action | Single Acting |
| Control | Foot pedal pump - Release pressure to return fluid |

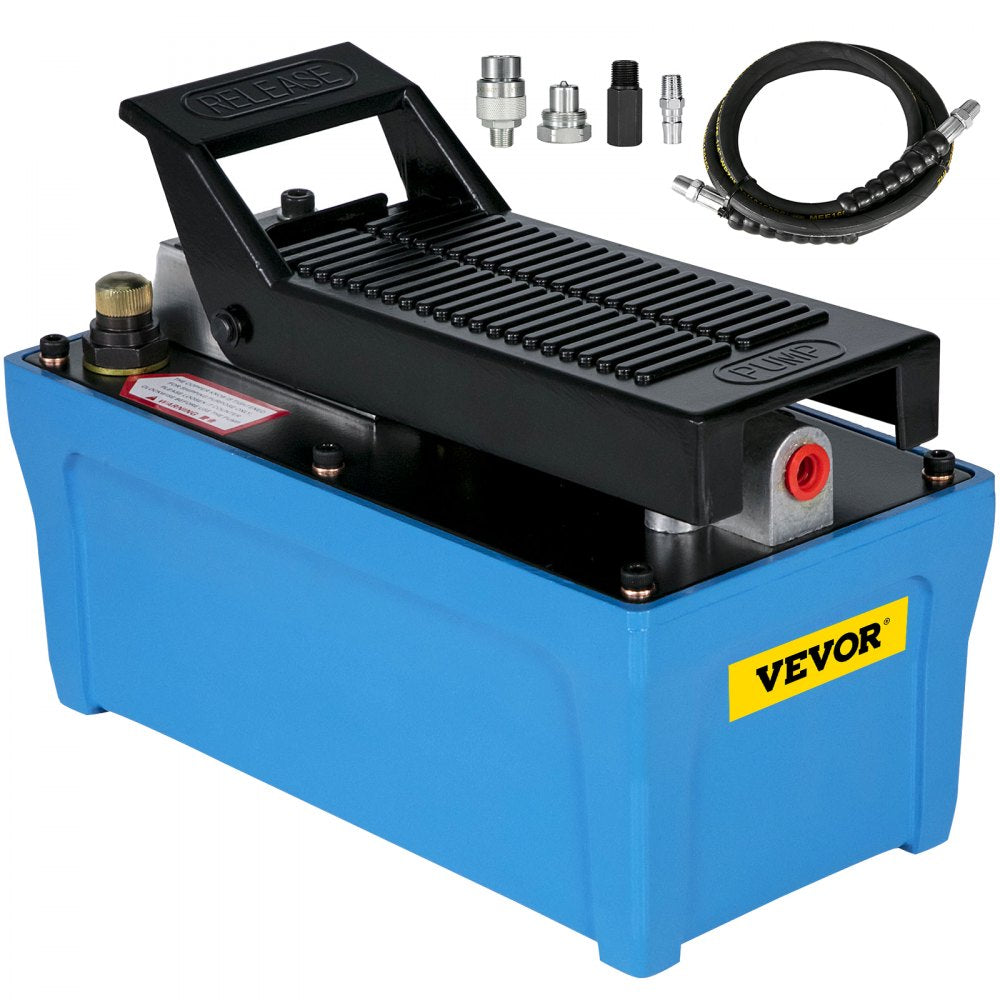

| Includes Hydraulic Hose | 6.56 ft / 2 m with 3/8'' NPT - Quick hydraulic coupler |
| Flow Rate | 0.8 liters / 0.21 gallons per minute |

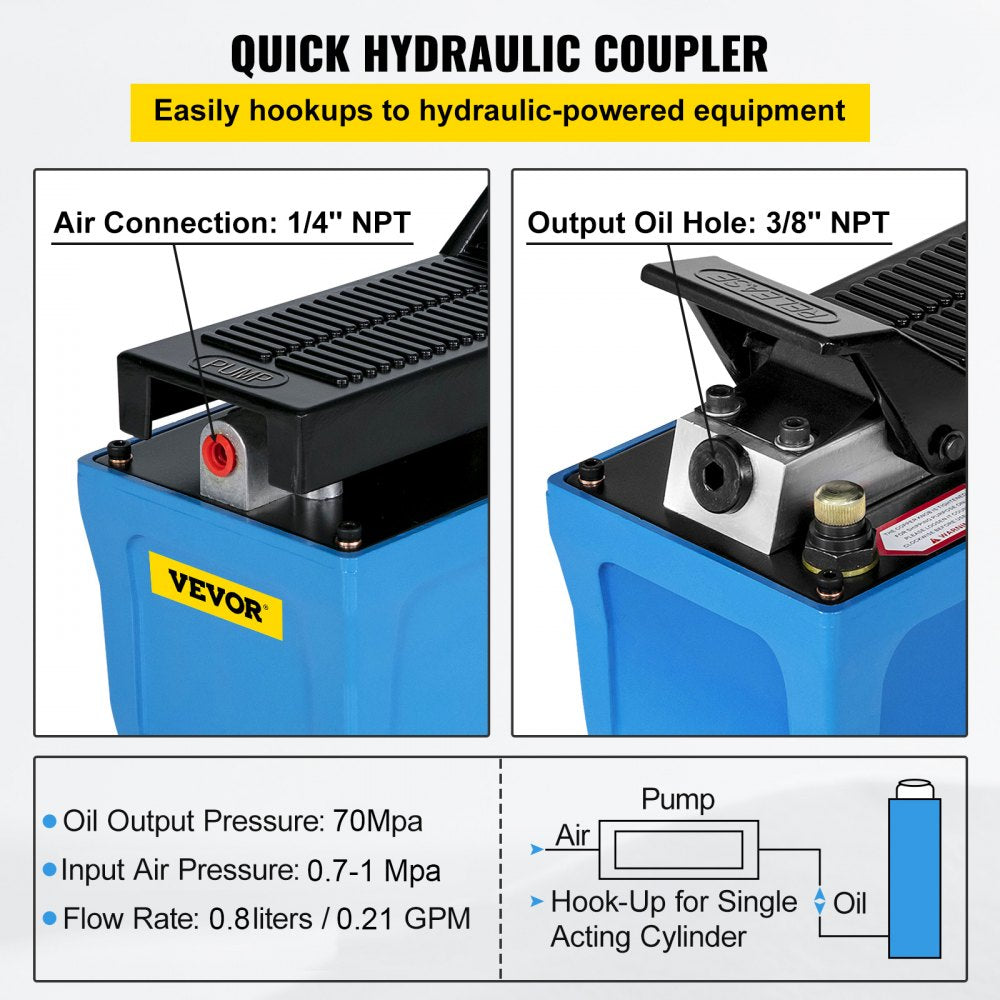

| Air Connection | 1/4" Female NPT |
| Connector Type | 3/8" NPT ISO 14540 quick hydraulic coupler |

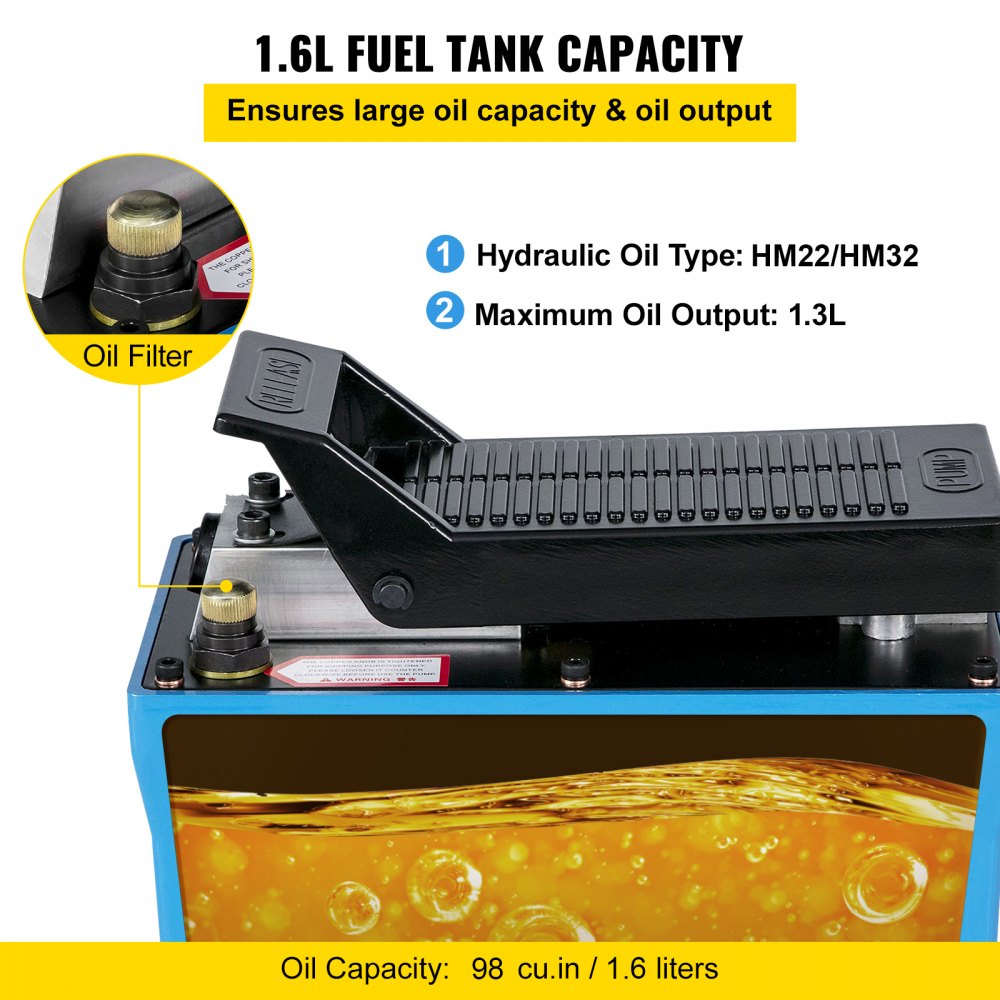

| Hydraulic Oil Type | HM22/HM32 |
| Oil Capacity | 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons |
| Input Air Pressure | 0.7-1MPa |
| Shell Material | Reinforced Aluminum Alloy |
| Fuel Tank Capacity | 1.6L |
| Capacity Tolerance | ± 0.1L |
| Maximum Oil Output | 1.3L |
| Oil Output Pressure | 70MPa |
| Pressure Range | ≥ 0.5 |
| Max Output Hydraulic Pressure | 10000 psi, 700 kg/square cm |

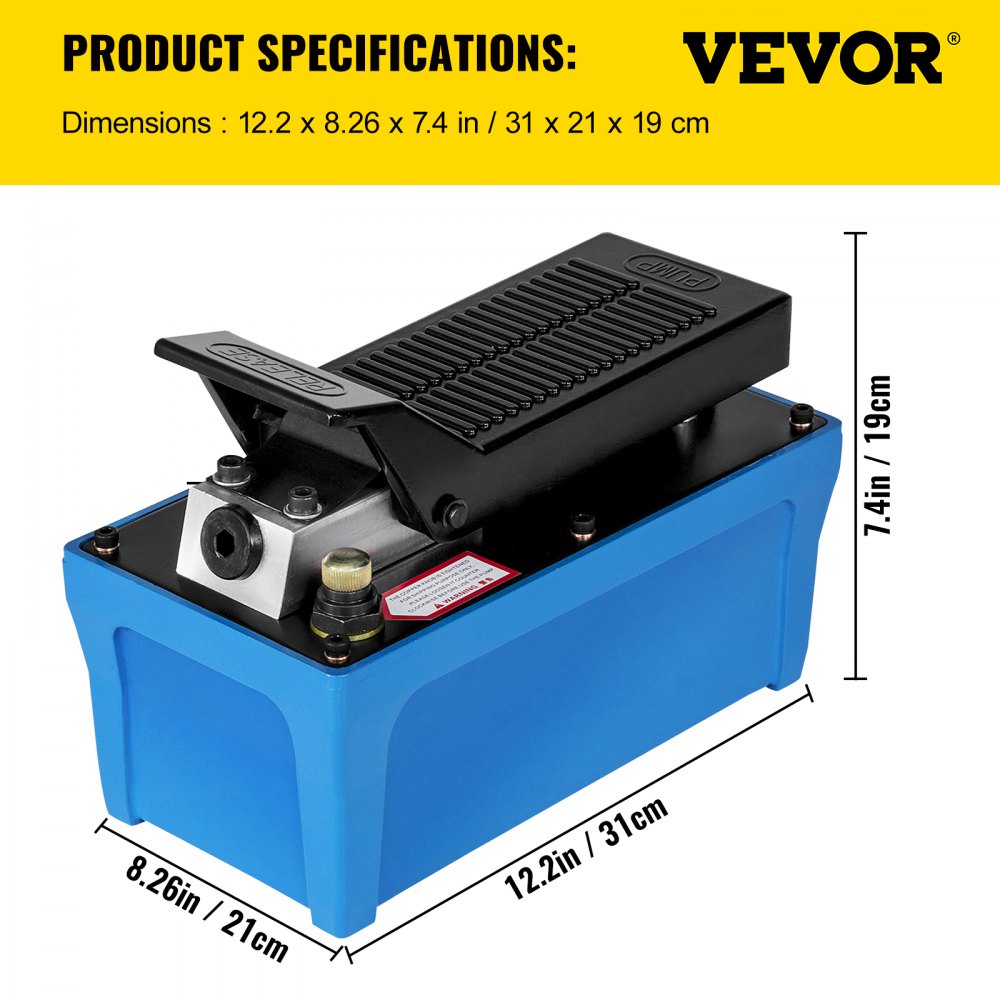

| Dimensions (L x W x H) | 12.2 x 8.26 x 7.4" / 31 x 21 x 19 cm |
