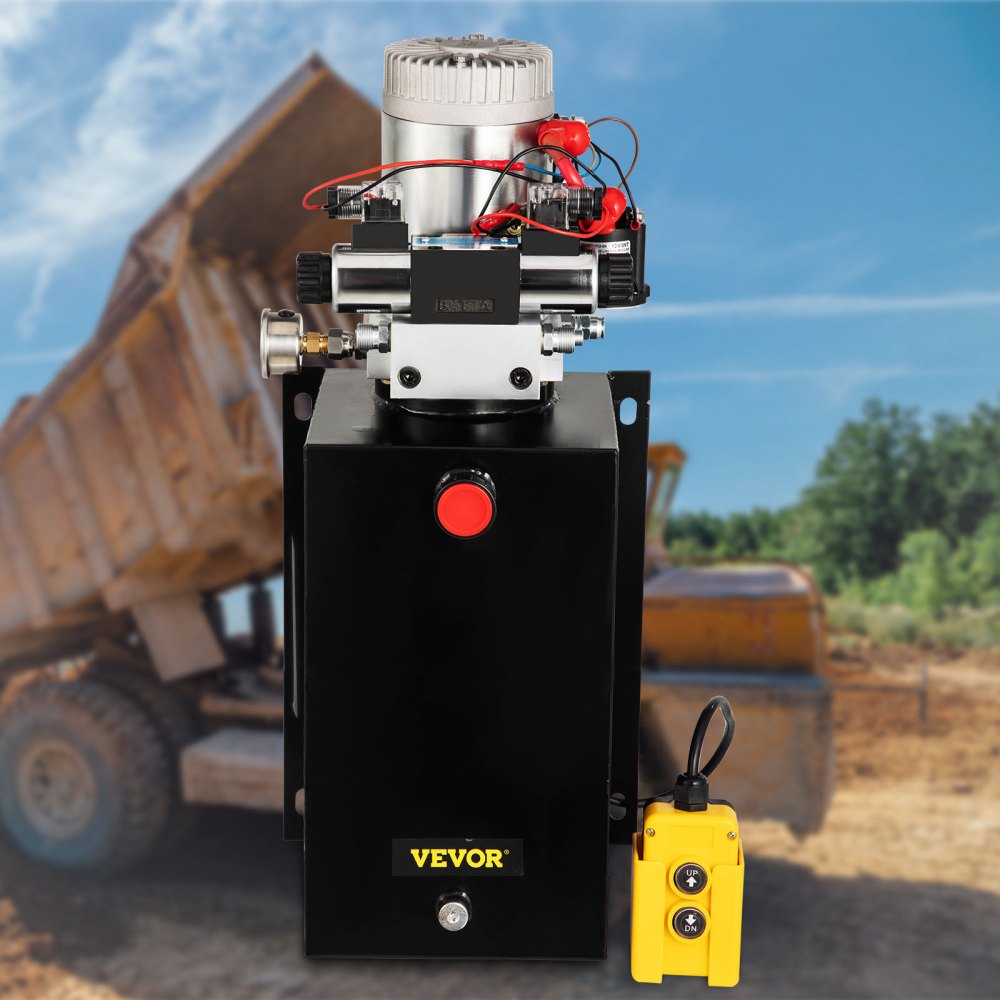

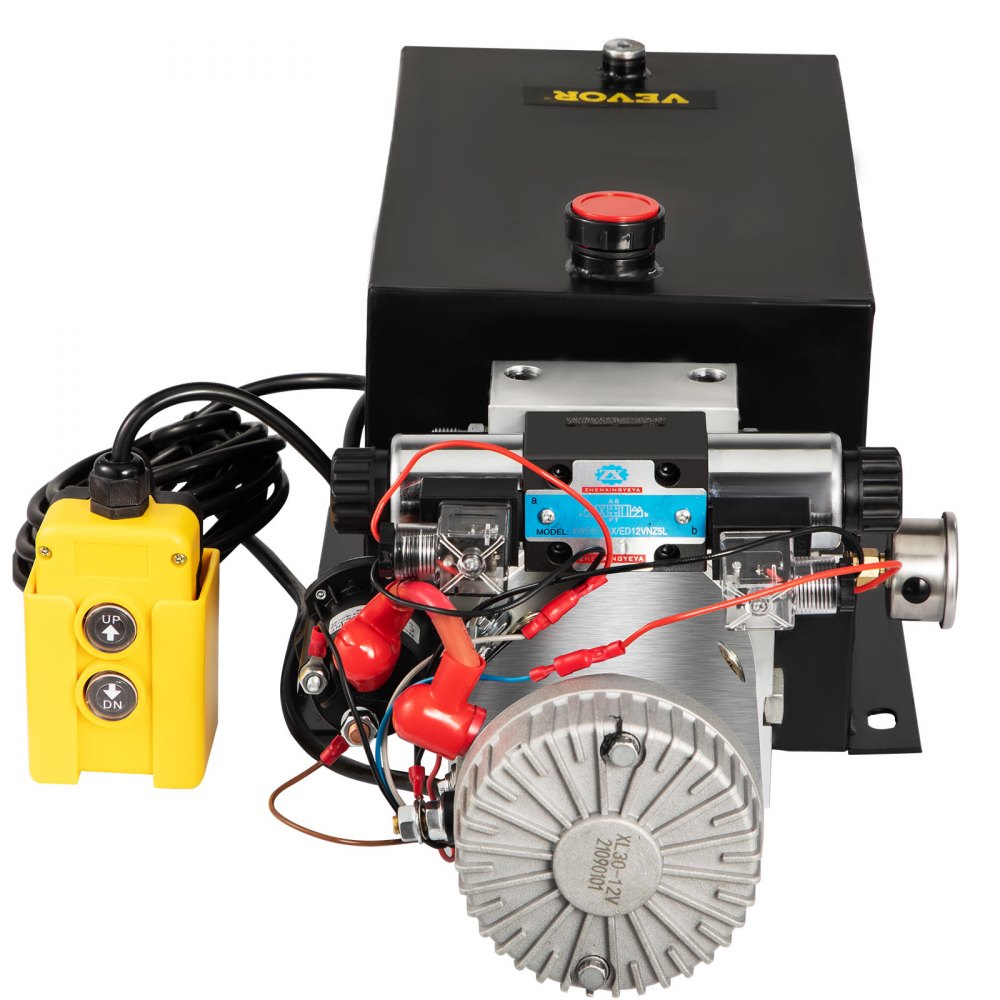

15QDAMHPWG - 15 Quart Hydraulic Pump with 12V Motor & Pressure Gauge

15QDAMHPWG - 15 Quart Hydraulic Pump with 12V Motor & Pressure Gauge

SKU: SKU: 15QDAMHPWG

Variant:
  • 15QDAMHPWG - 15 Quart Hydraulic Pump with 12V Motor & Pressure Gauge
Regular price Now $239.50
Regular price BEFORE   $0.00 Sale price Now $239.50
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

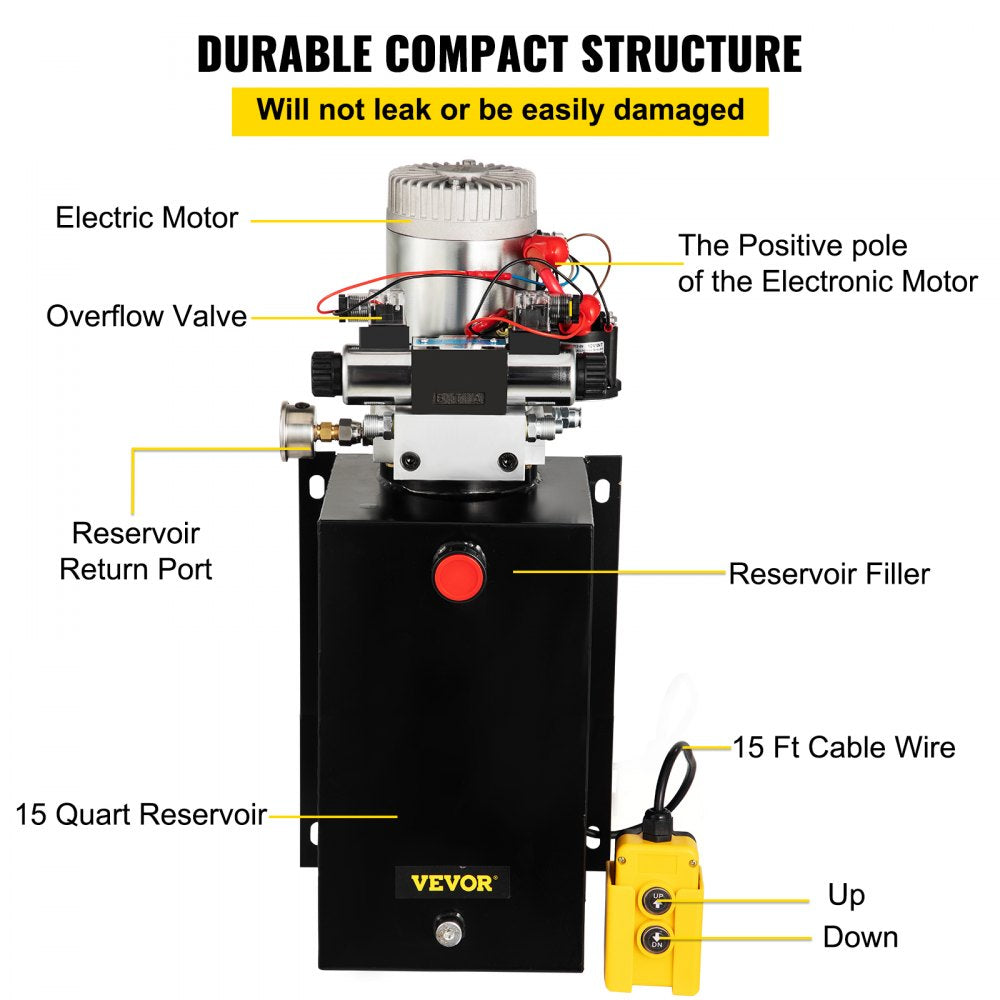

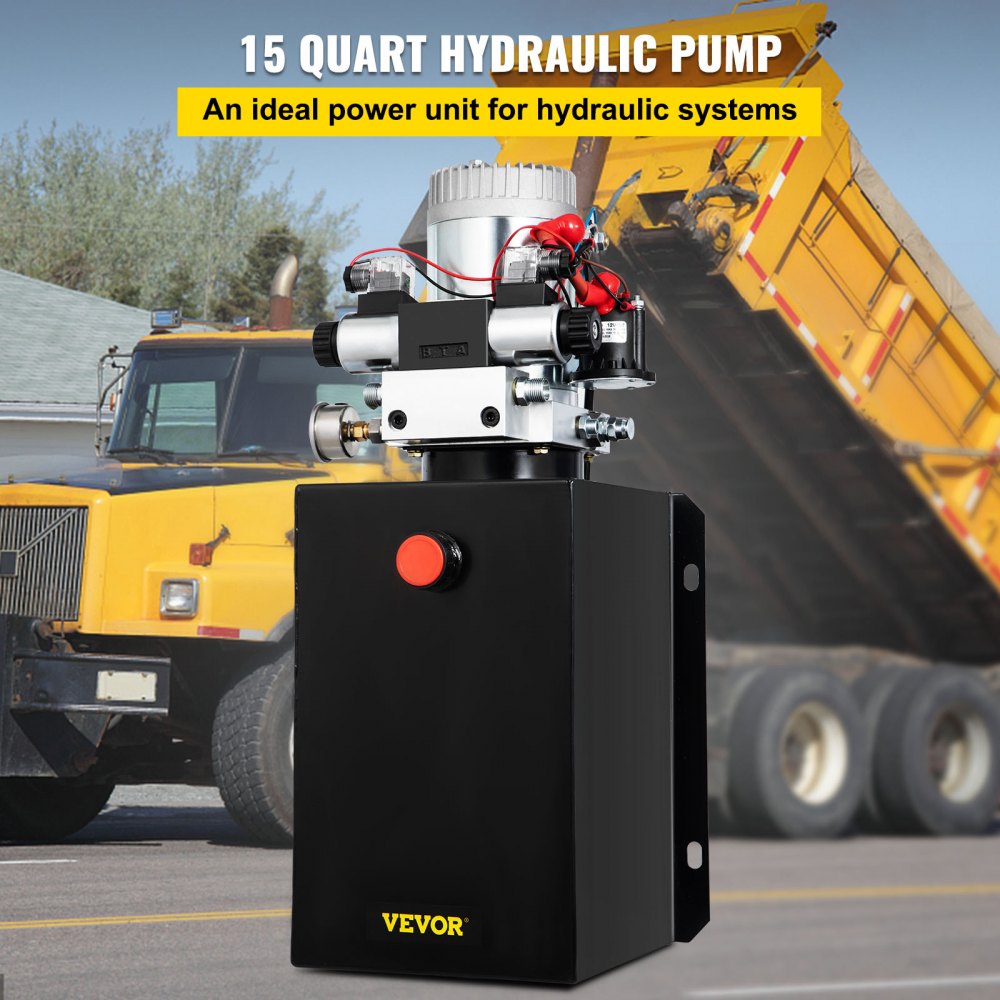

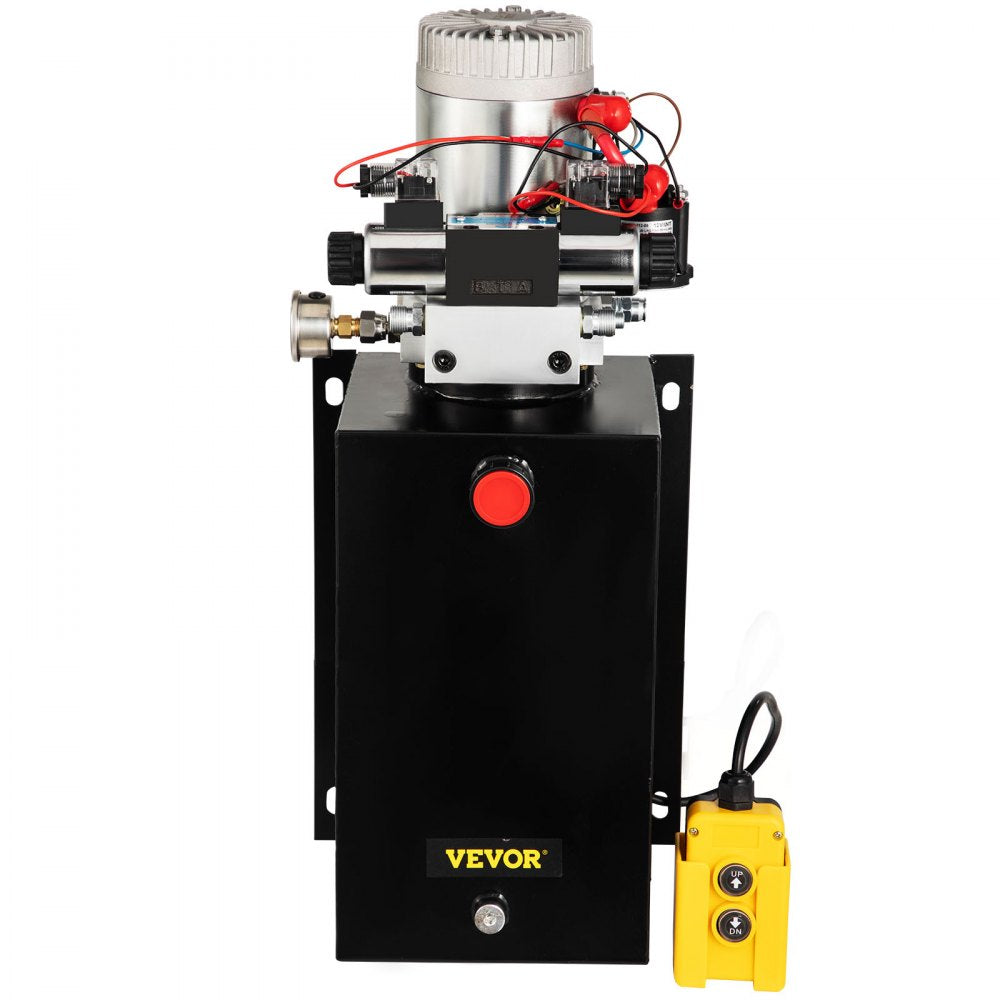

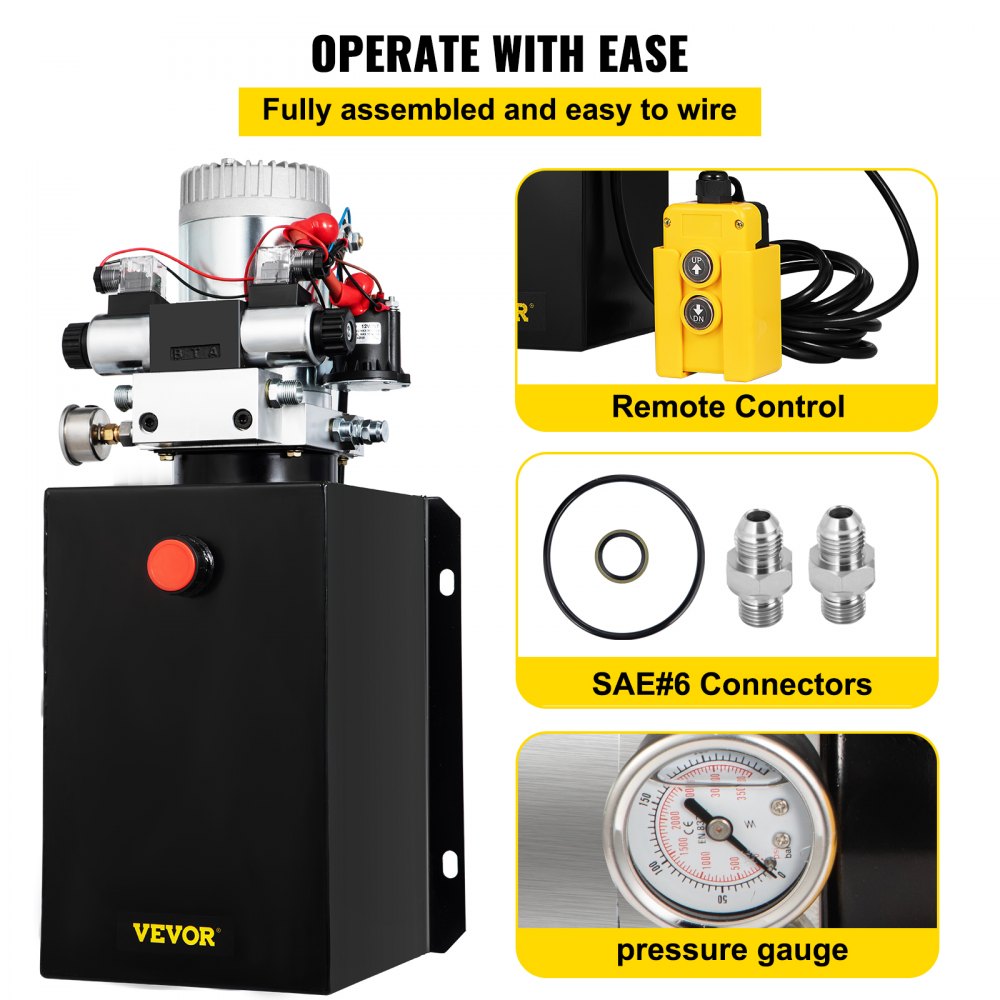

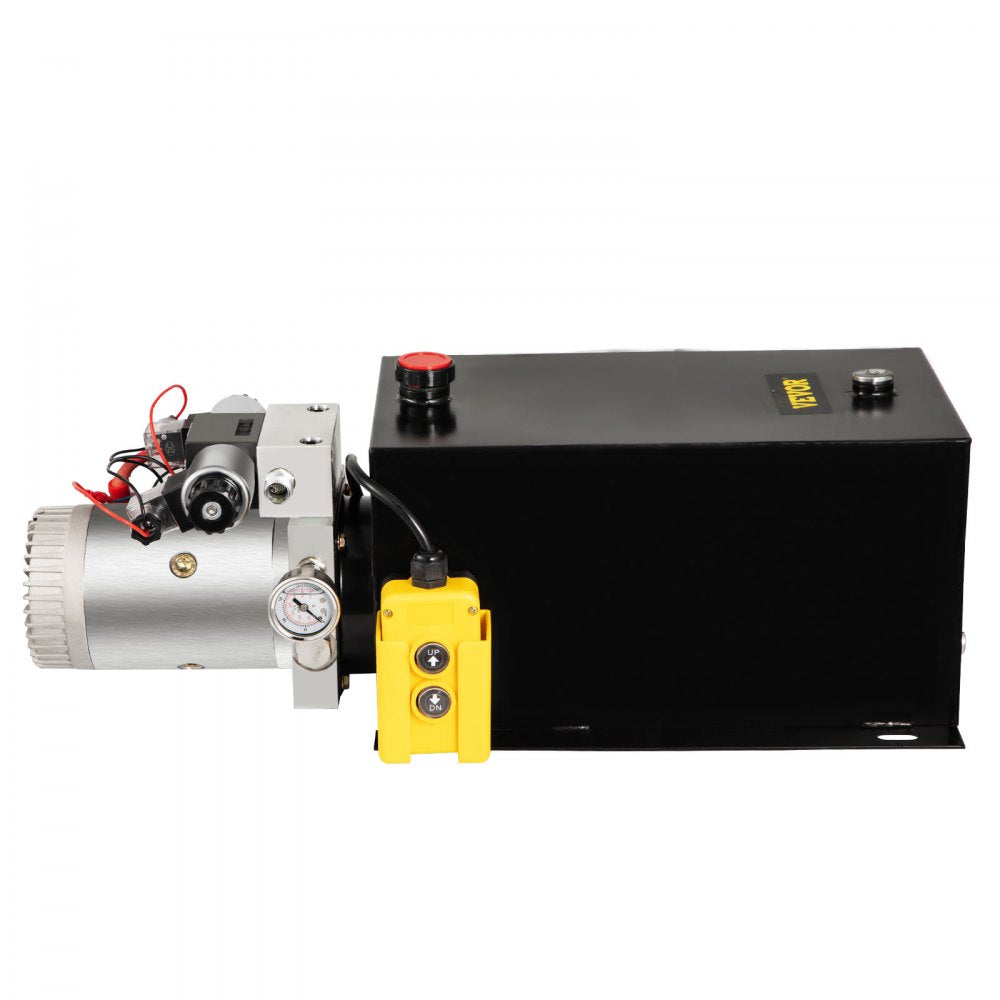

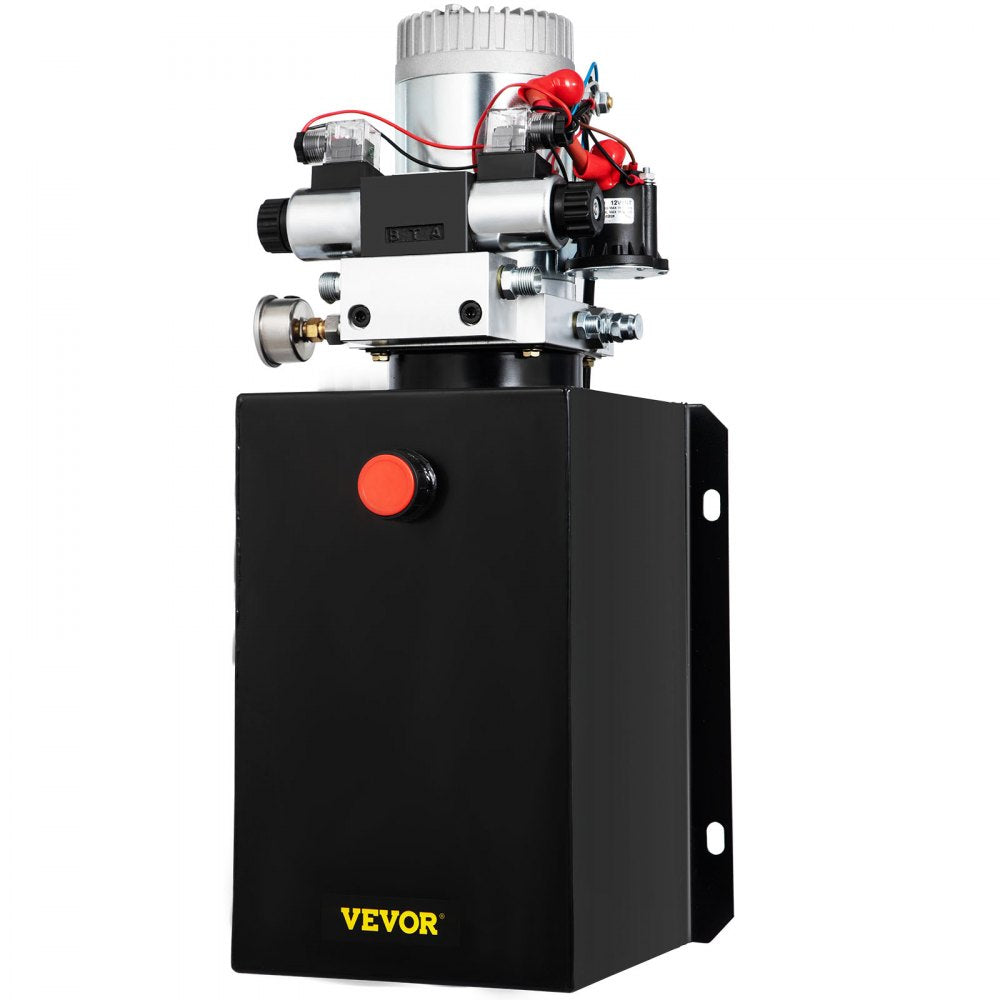

Experience exceptional performance with this hydraulic pump, specifically engineered for both lifting and lowering tasks Featuring a robust 15-quart metal reservoir, it comes equipped with a pressure gauge and a start solenoid for enhanced functionality Powered by a 12V DC motor, this unit delivers reliable strength, making it ideal for various hydraulic systems, including dump trailers, forklifts, and lifting platforms.

Features and Benefits:

    •Easy to Use.

    •Reliable Quality.

    •Rapid Start.

    •Wide Application.

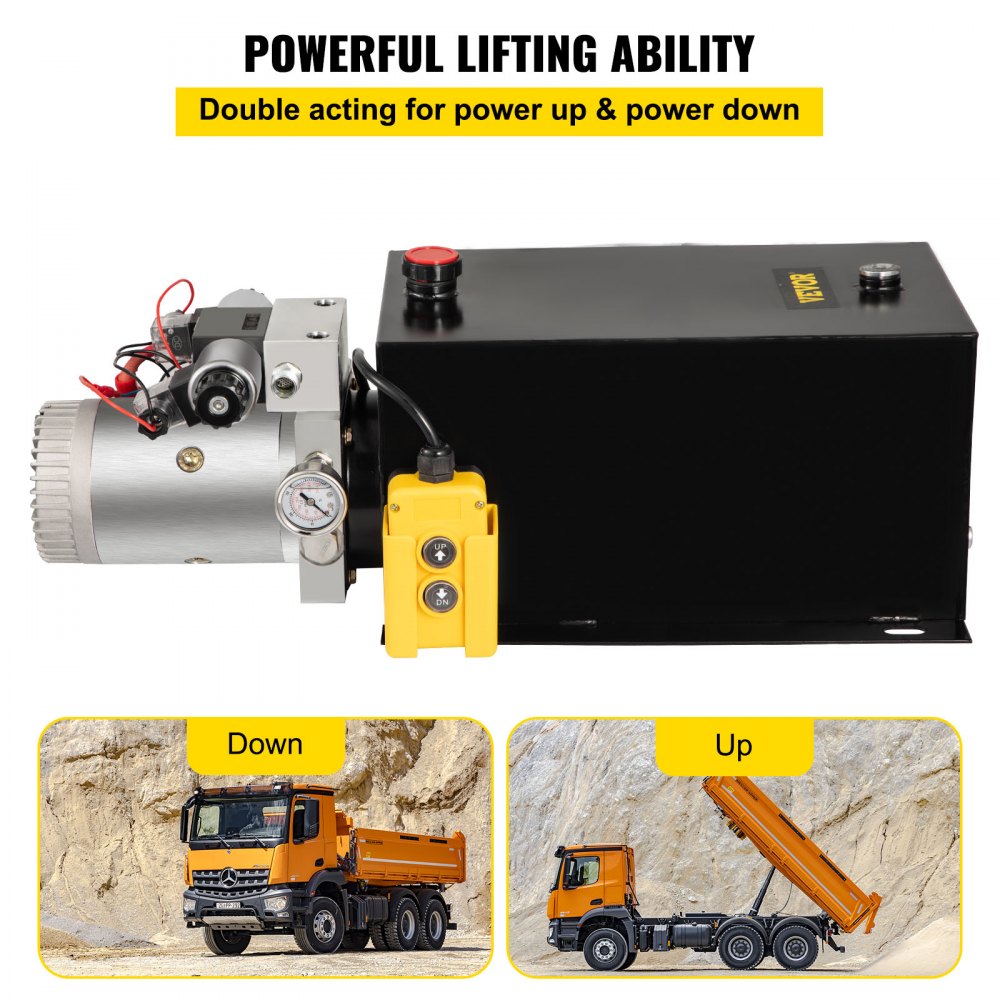

    •Double-Acting Power Unit.

    •Convenient Design.

    •Quick Start&Lifting.

    •Long Lasting.

    •Simple Installation.

    •Dump trailers.

    •Forklifts.

    •Lifting platforms.

    •Truck tailgate lift.

    •RV leveling.

    •Scissor lift.

    •Snowplow.

    •Aerial platform.

    •Road signs.

    •Material handling.

    •Wheelchair lifts.

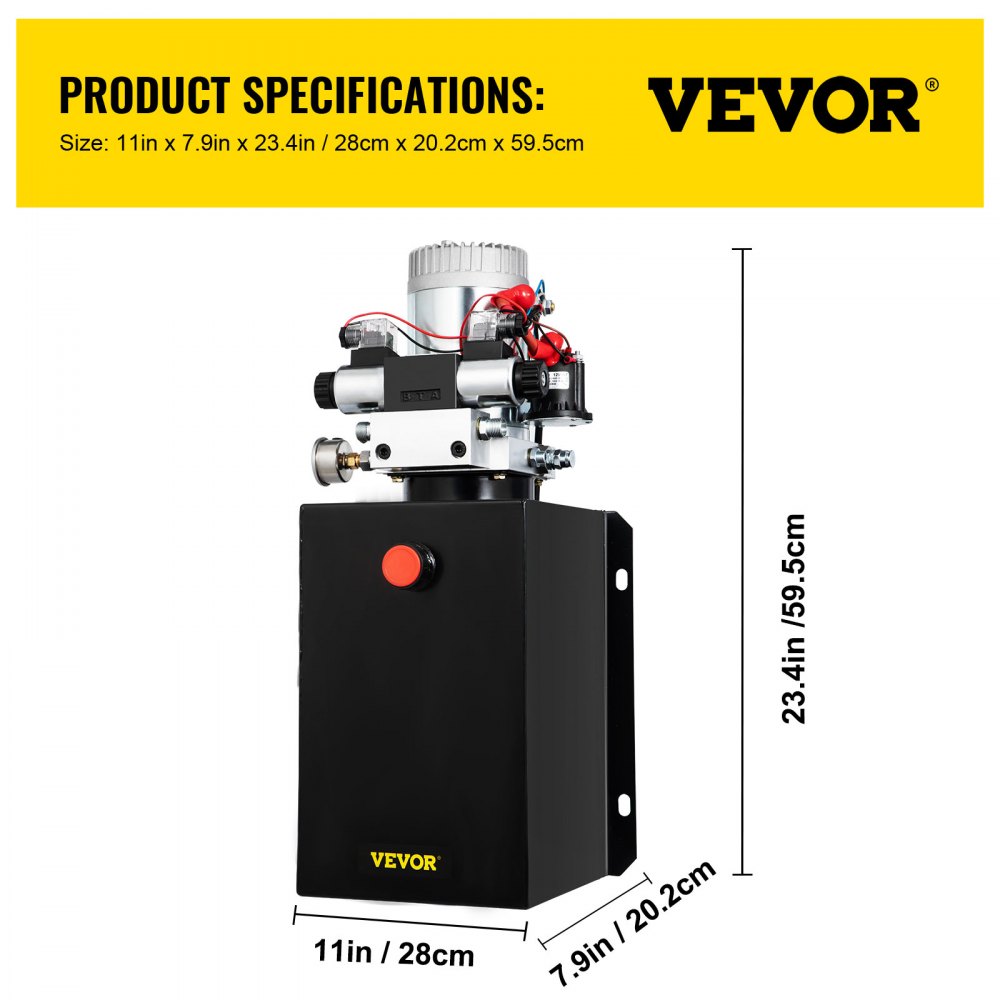

Specifications:

 Model 15QDAMHPWG
 Tank Material Metal
 Tank Capacity 15L/ 15 qt/ 3.75 Gal
 Flow 2.0 GPM
 Max. Relief Valve Setting A Port 3200 PSI
 Max. Relief Valve Setting B Port 1500 PSI
 Rated Speed 2850R/MIN
 Voltage DC12V
 Power 1.6KW (Rated), 3.0KW (Max)
 Duty 3 Min
 Traffic 1.1 cc/r
 Rotation Clockwise

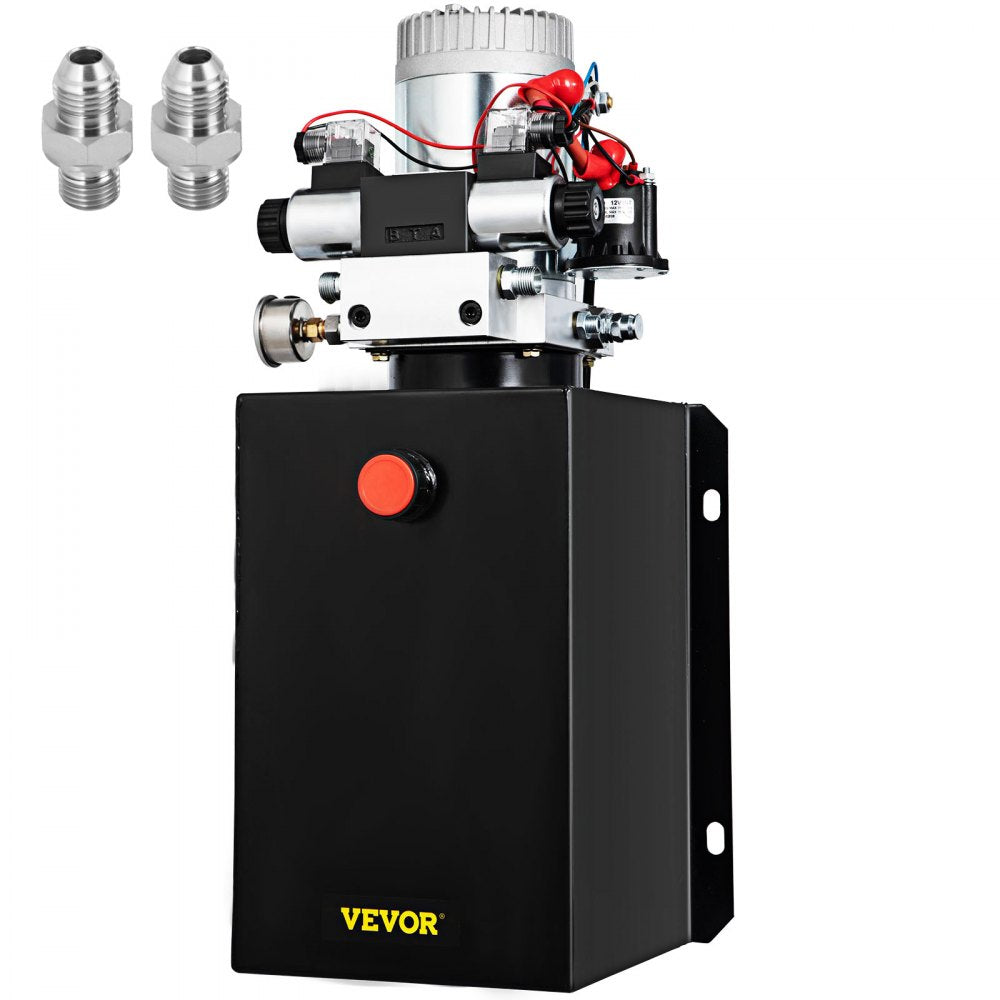

 Connector SAE # 6
 Mount Position Horizontal/ Vertical
 Control Solenoid and Handheld Pendant
 Pendant Control Length 15ft/ 4.5 m
