Description:

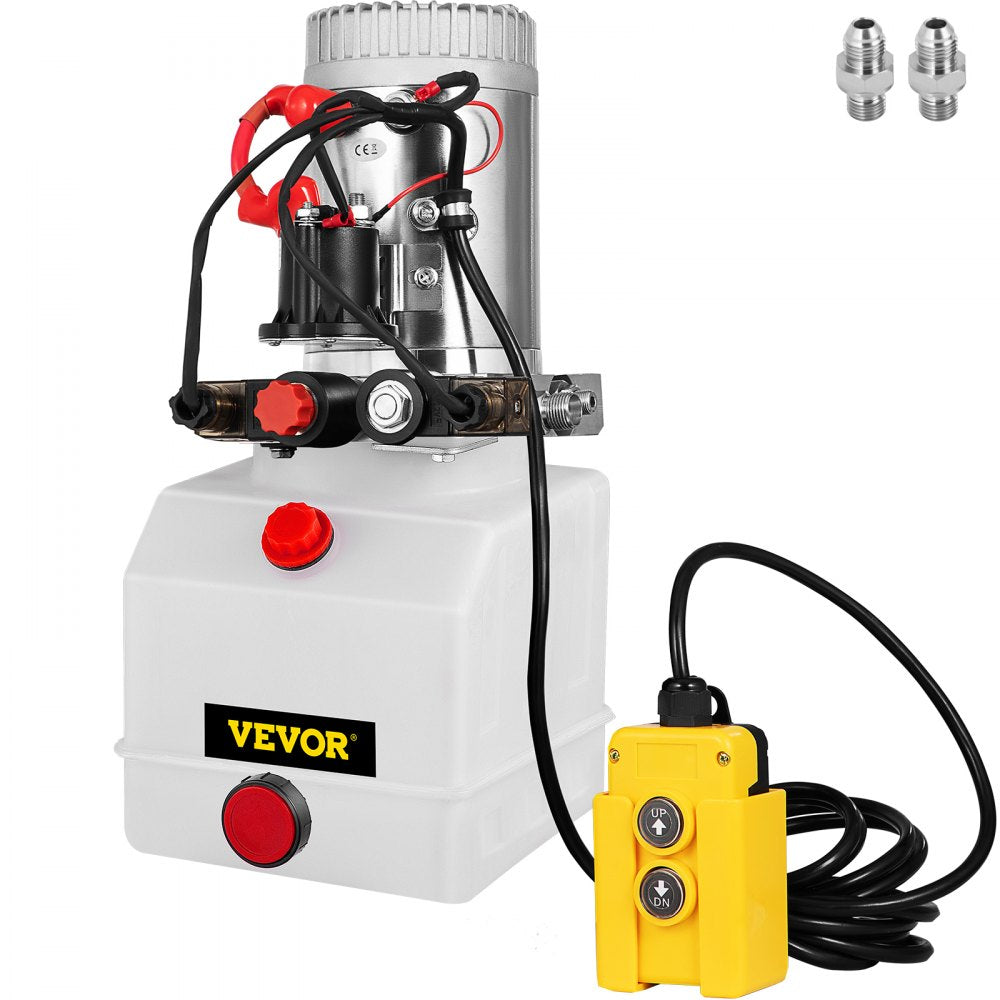

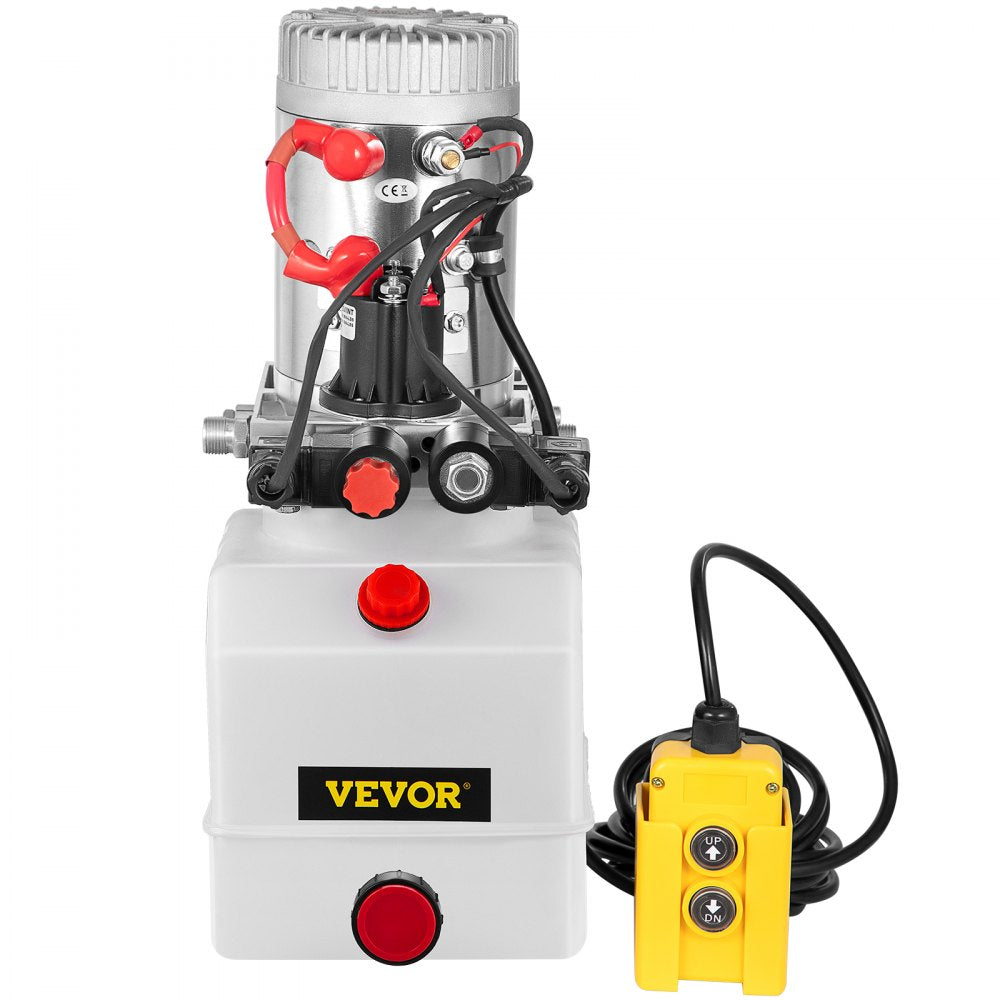

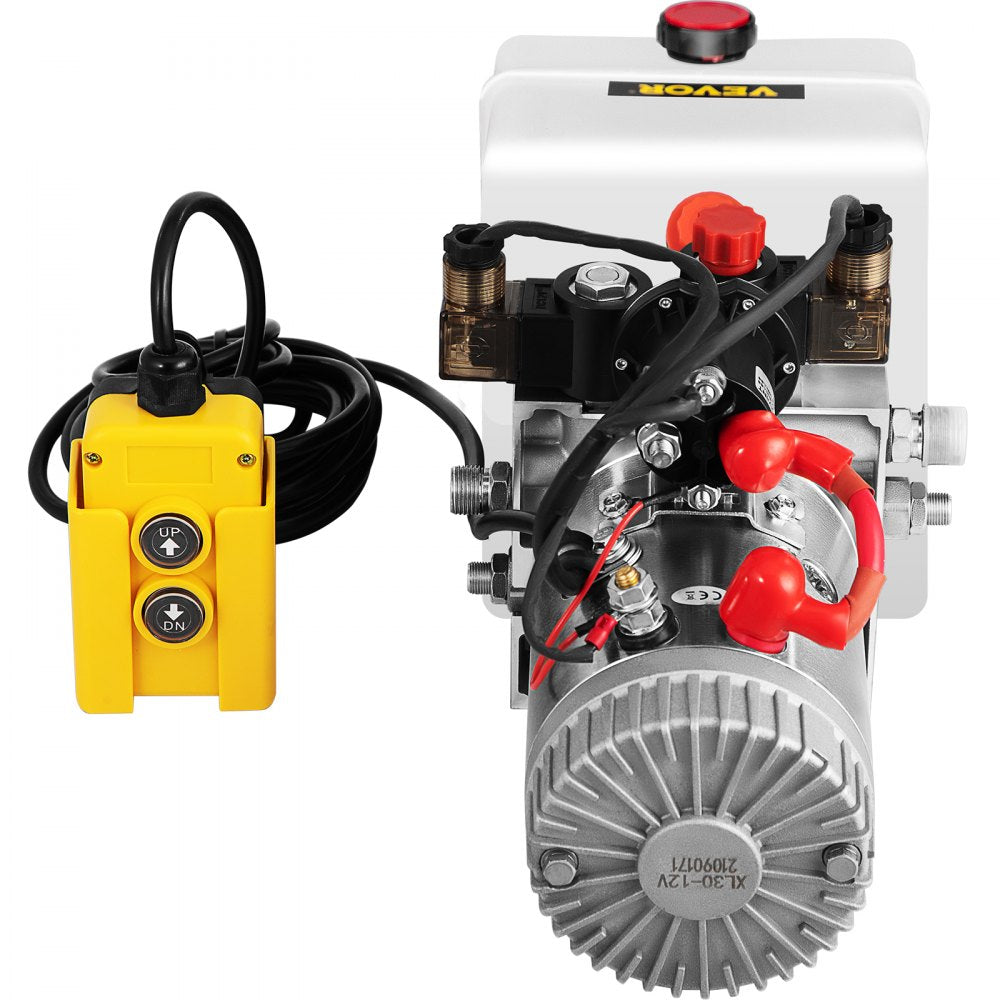

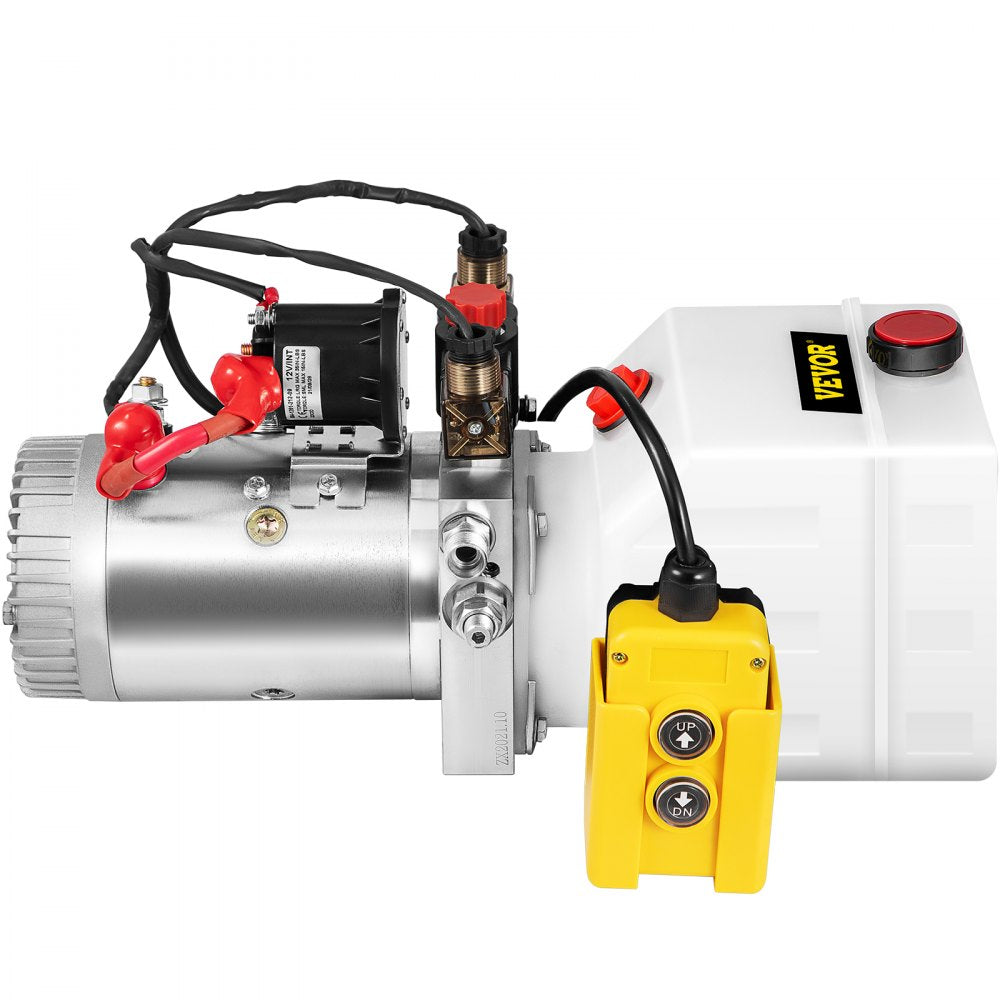

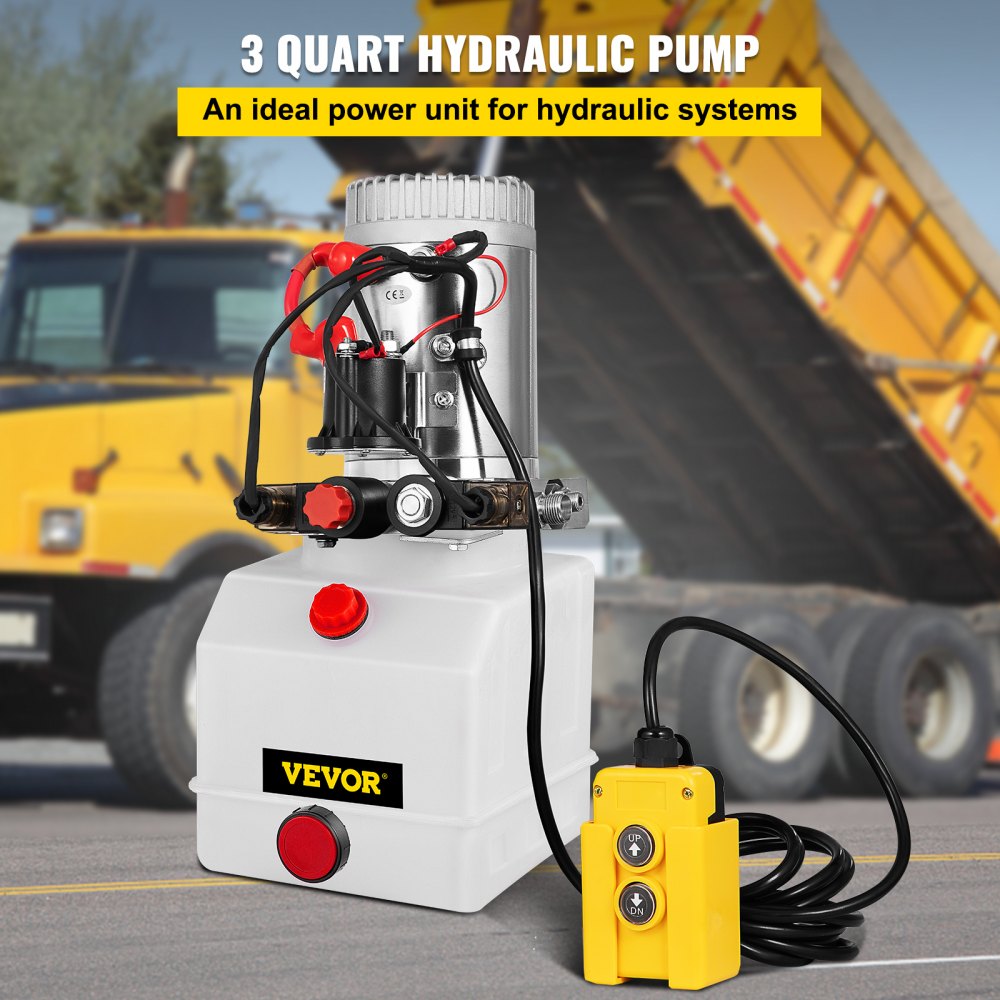

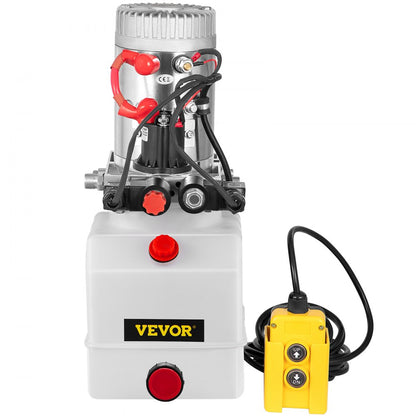

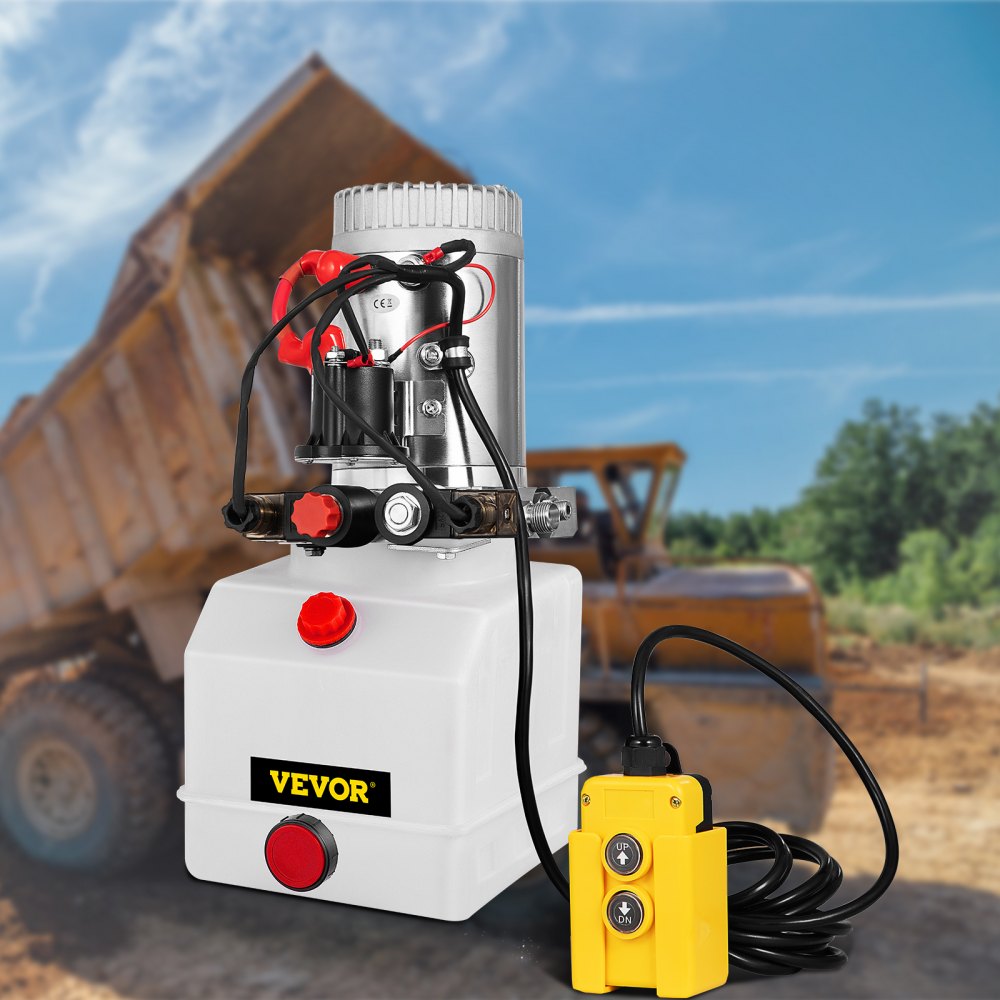

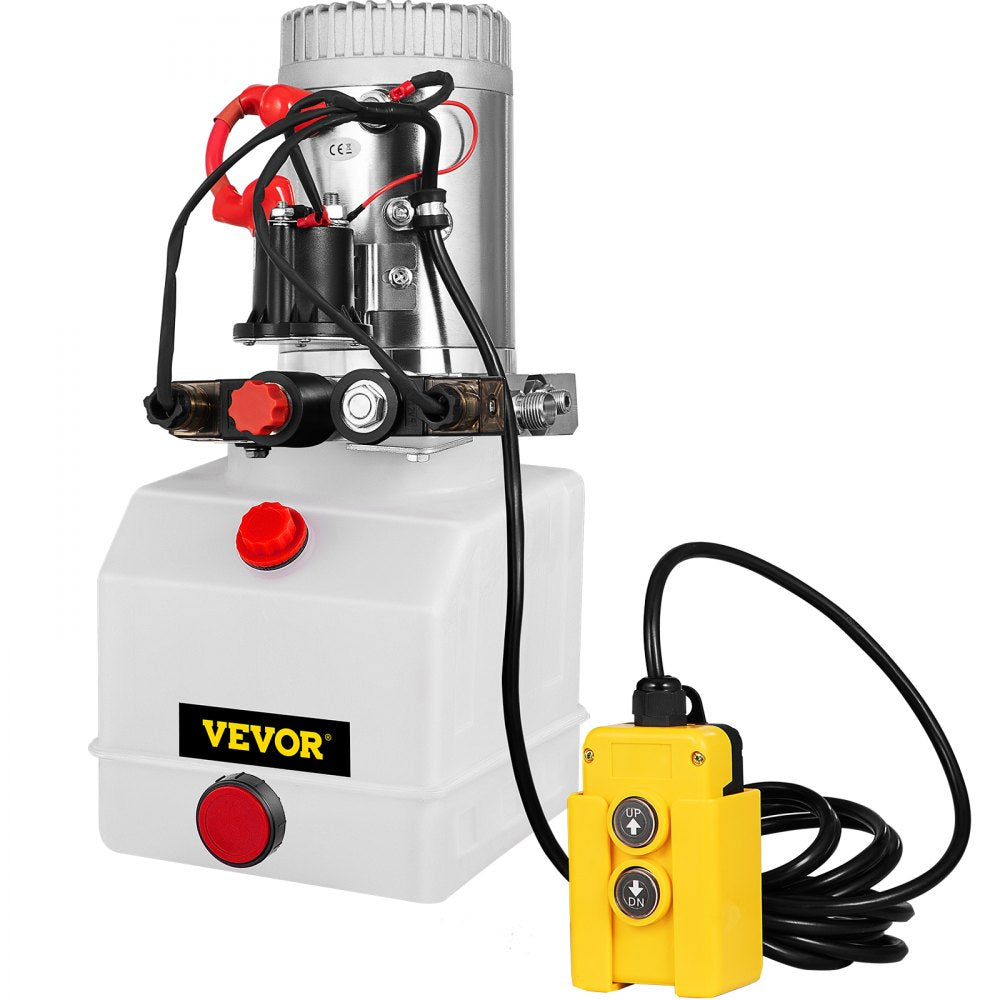

Discover the power of this double-acting hydraulic pump, designed for effective lifting and lowering operations With a robust 3-quart plastic reservoir and a powerful 12V DC motor, this unit delivers exceptional performance for hydraulic applications, including dump trailers, forklifts, and lifting platforms It boasts features such as quick start-up and efficient oil output, making it versatile for uses ranging from truck tailgate lifts to RV leveling and scissor lifts.
The pump comes pre-assembled for effortless installation and includes a handheld remote control to ensure safe operation.

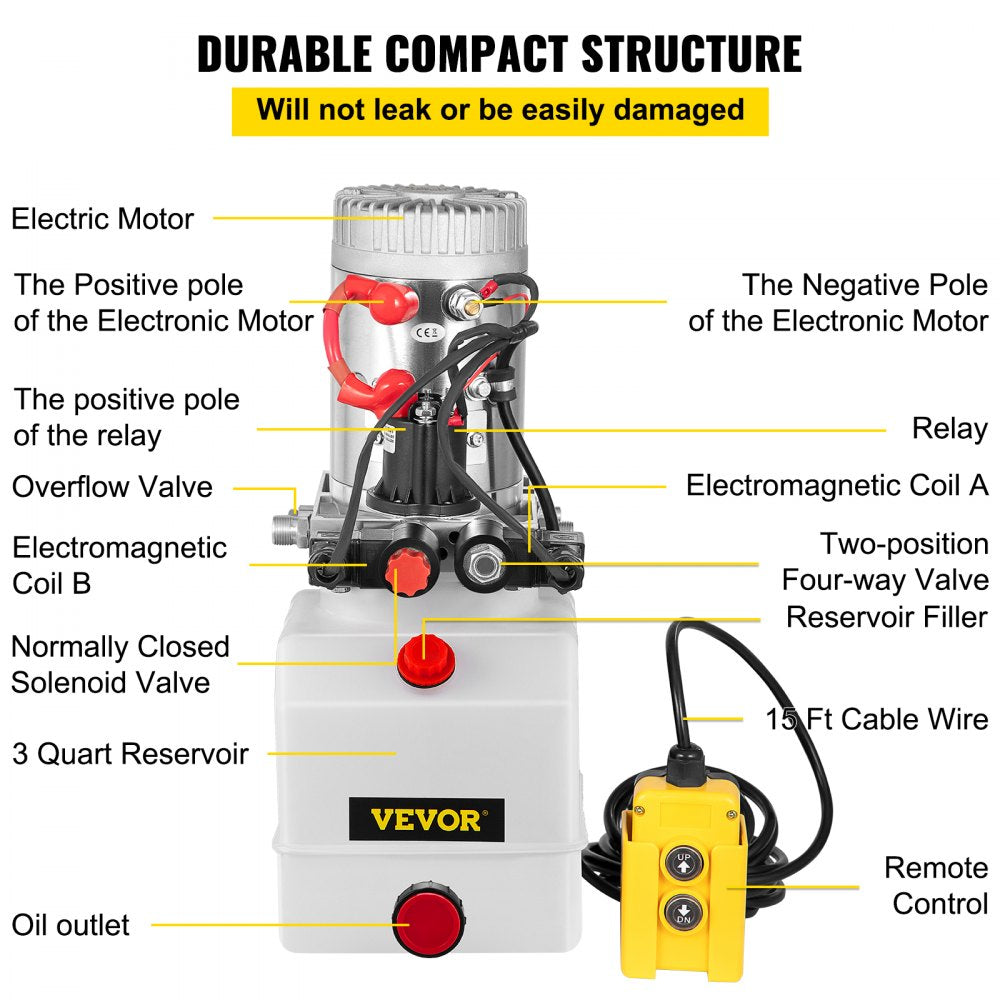

Features and Benefits:

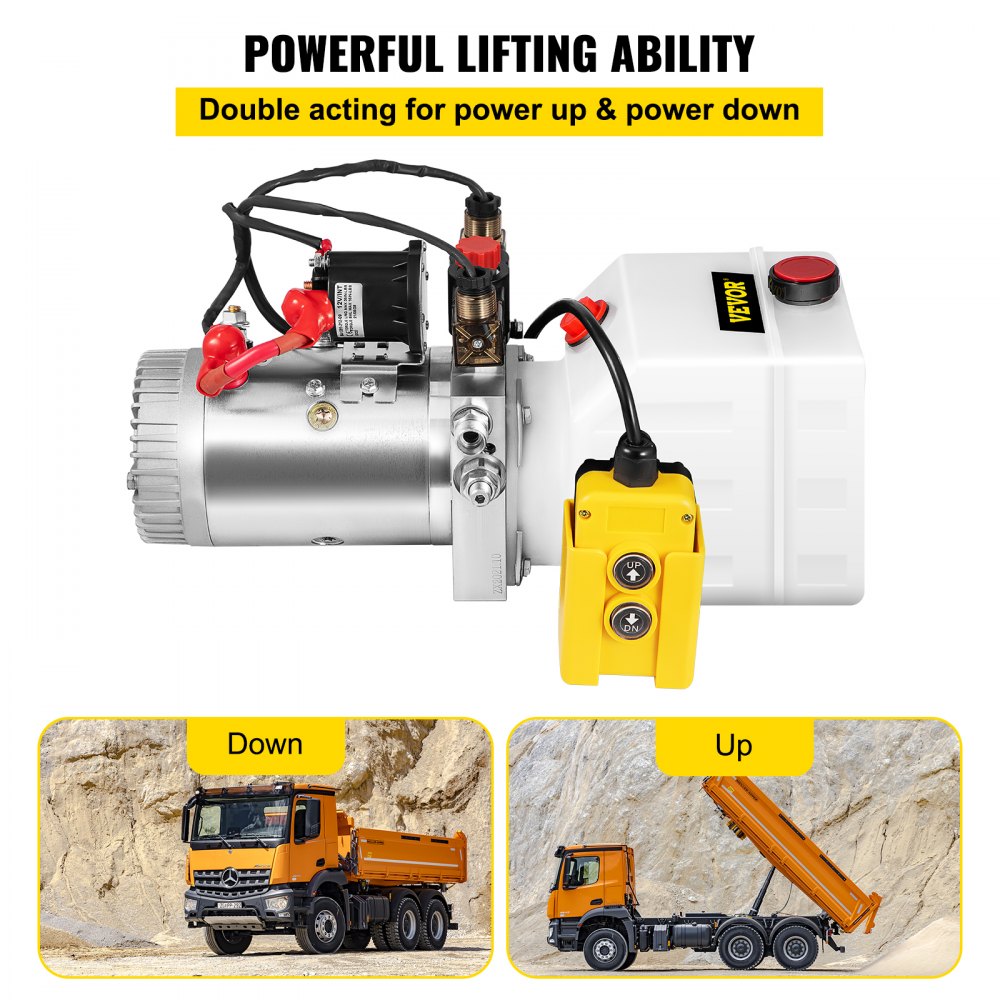

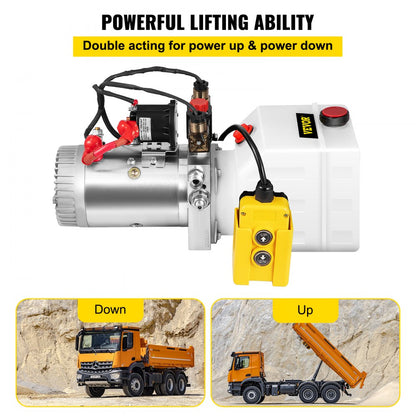

•Double-acting hydraulic power unit for both power up and power down..
•12V DC motor providing quick, reliable performance..
•3-quart plastic reservoir for ample capacity..

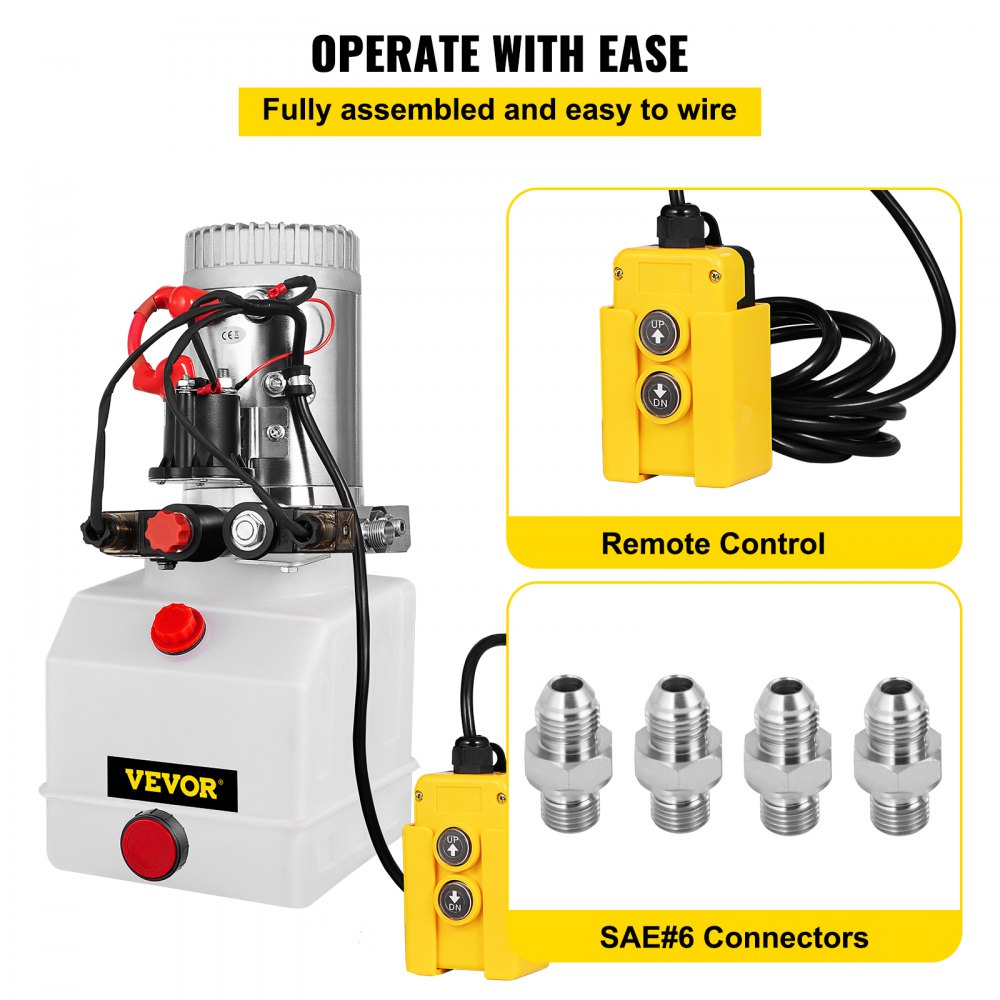

•Pre-assembled design for simple installation and operation..
•Includes a handheld remote control for convenient operation..
•Built with high-quality materials for durability and safety..
•Equipped with relief valves to prevent overpressure..
•Compact and efficient design suitable for various environments..
•Used for truck tailgate lifts..
•Compatible with dump trailers..
•Works with RV leveling systems..
•Suitable for various lifting platforms and scissor lifts..

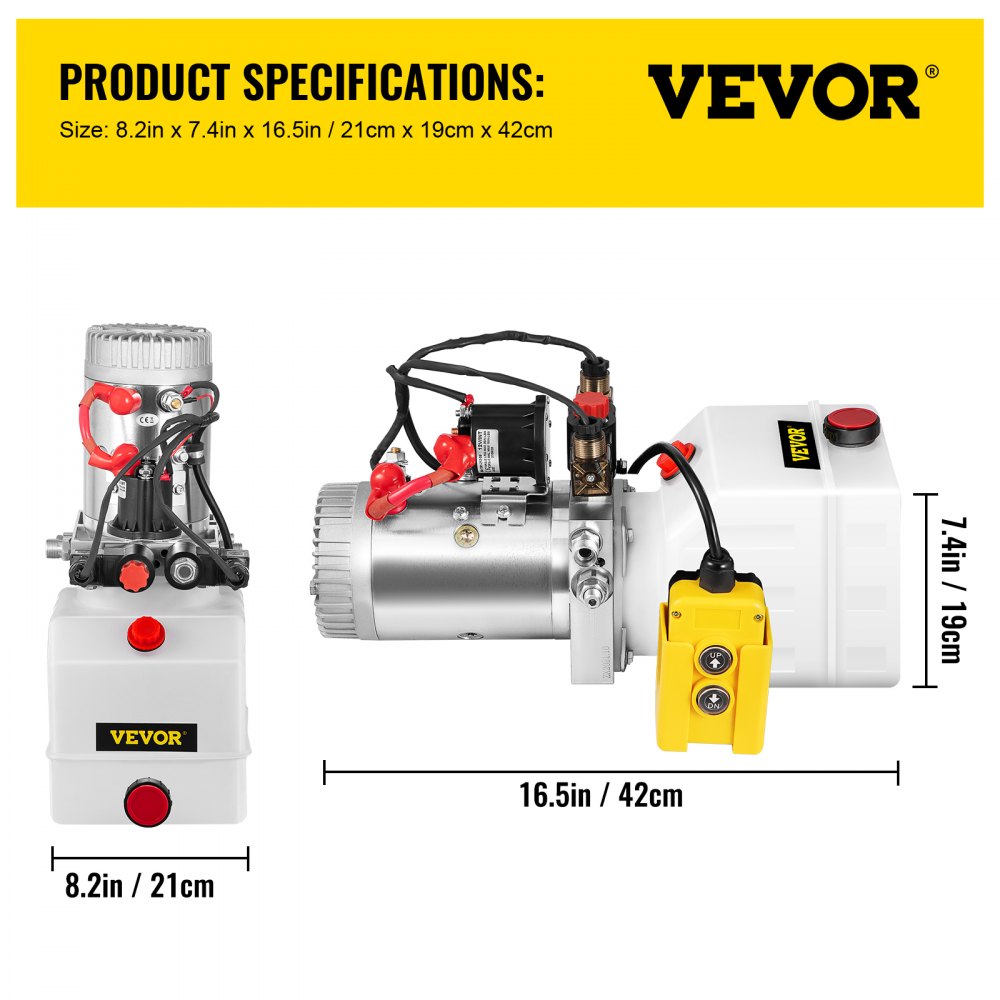

Specifications:
| Mode | Double-Acting Power-Up/ Power-Down |
| Tank Material | Plastic (Translucent) |
| Tank Capacity | 3L/ 3Quart/ 0.75 Gal |
| Flow | 2.0 GPM |
| Max. Relief Valve Setting A Port | 3200 PSI |
| Max. Relief Valve Setting B Port | 1500 PSI |
| Rated Speed | 2850R/MIN |
| Voltage | DC12V |
| Power | 1.6KW (Rated), 3.0KW (Max) |
| Duty | 3 Min |
| Traffic | 1.1 cc/r |
| Rotation | Clockwise |
| Connector | SAE # 6 |
| Mount Position | Horizontal/ Vertical |
| Control | Solenoid and Handheld Pendant |
| Pendant Control Length | 15ft/ 4.5 m |
| Gross Weight | 29.1 lb (13.2 kg) |
