Description:

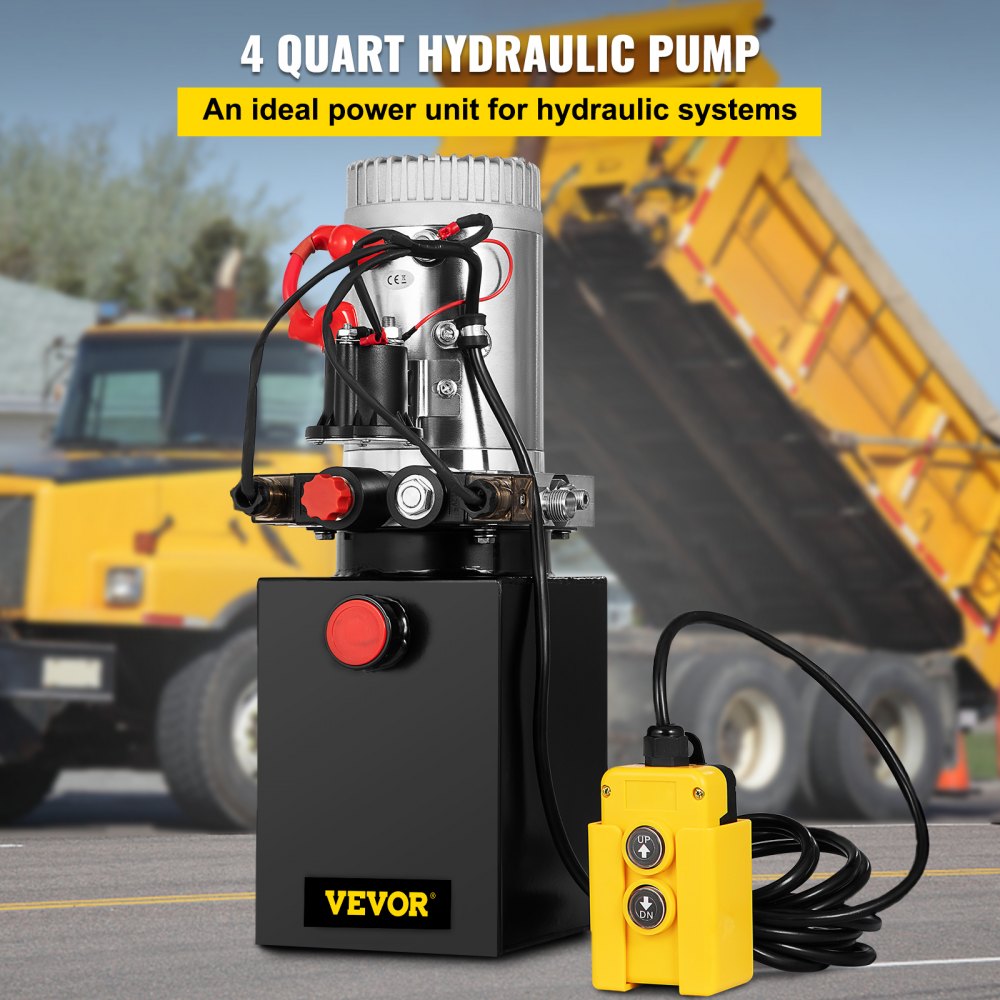

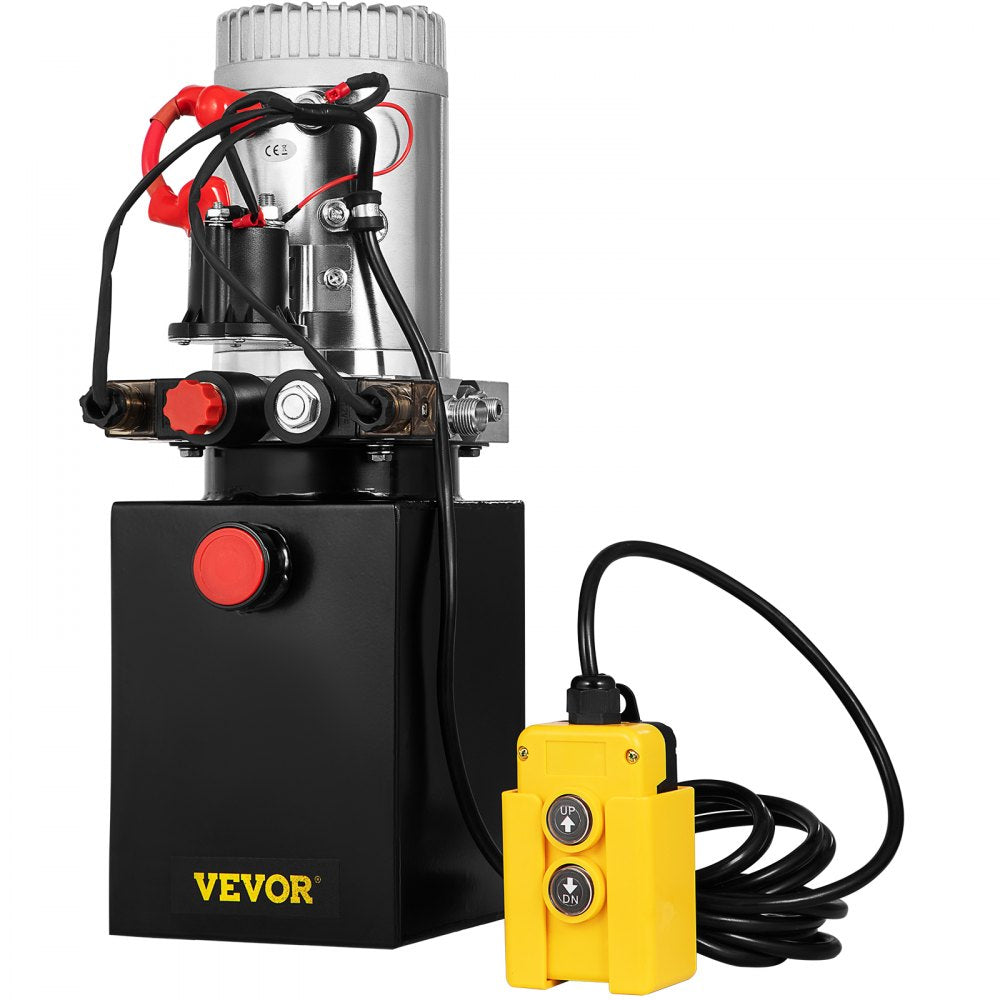

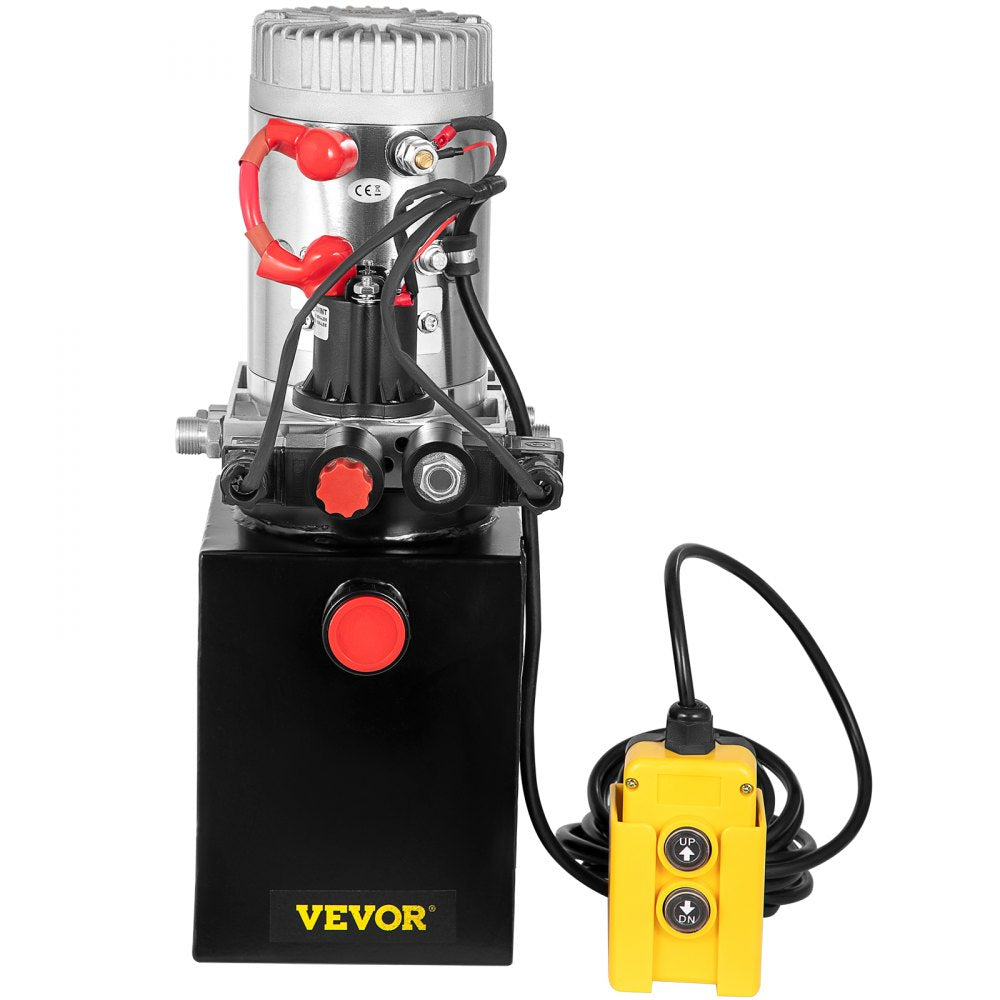

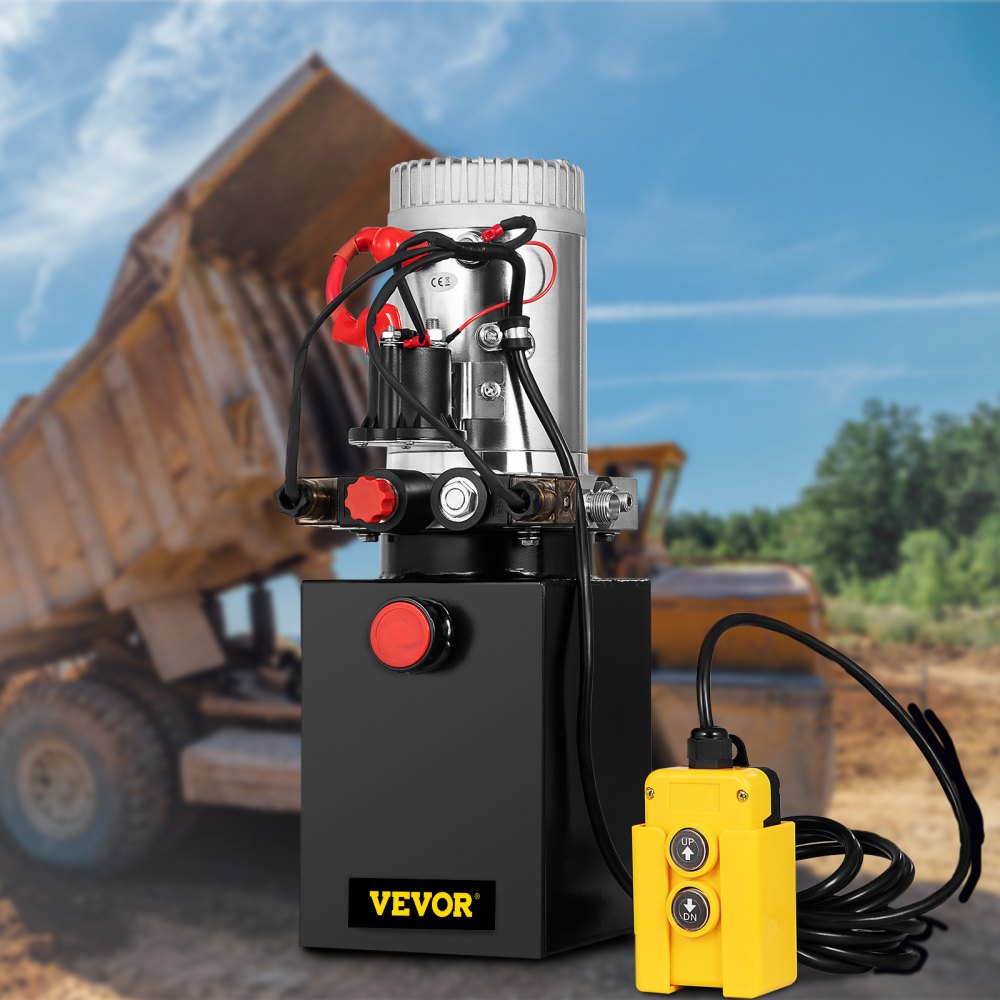

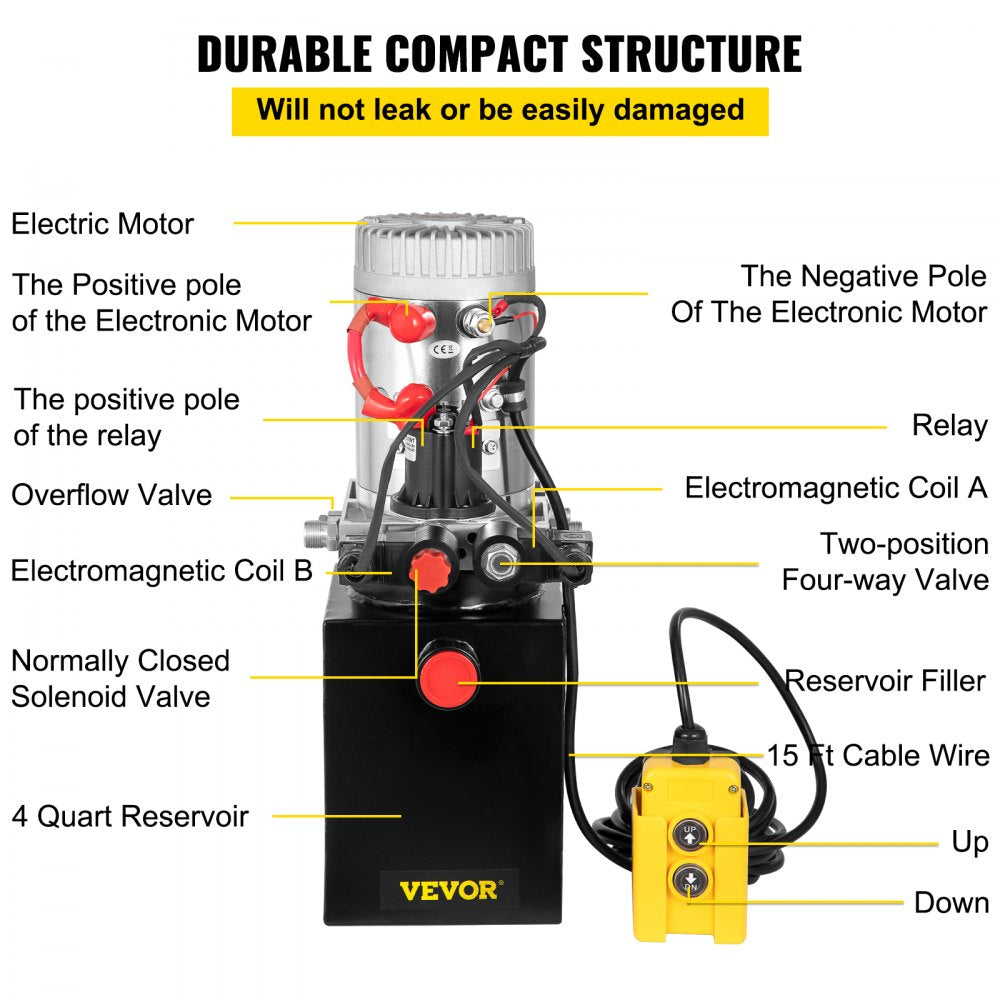

Introducing our robust double-acting hydraulic pump, expertly crafted for efficient lifting and lowering operations This power unit features a durable 4-quart metal reservoir and is equipped with a powerful 12V DC motor, making it ideal for use with hydraulic systems such as dump trailers, forklifts, and lifting platforms

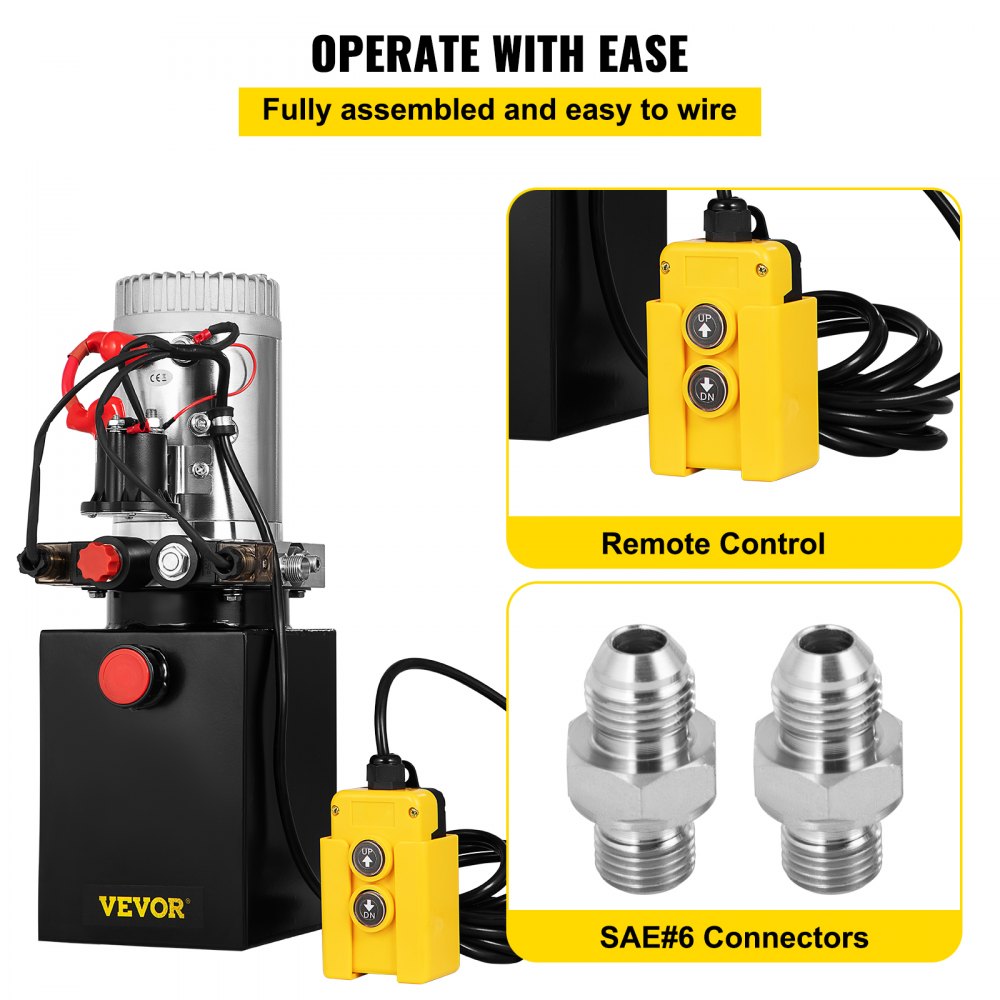

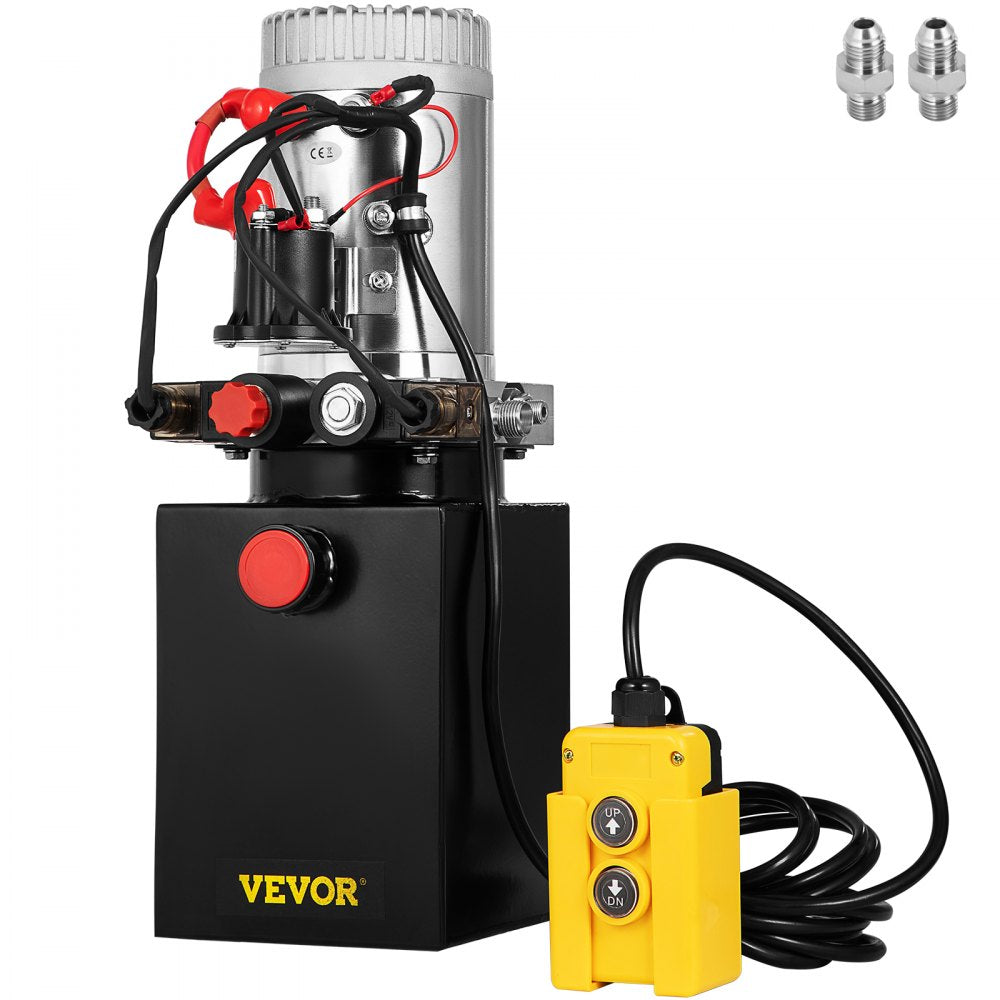

Included with the pump are an M18*15 connector and a supplementary SAE6 (9/16") connector, allowing for customizable connections based on your requirements.
Designed for user-friendly operation, this hydraulic pump guarantees reliability and rapid performance, making it an excellent choice for a variety of demanding tasks.
Features and Benefits:
•Easy to Use.
•Reliable Quality.
•Rapid Start.
•Wide Application.
•Made of sturdy metal to resist cracking or damage.
•Pre-assembled with clear instructions for simple installation.
•Includes a 15-foot remote control for convenient operation.
•Powerful 12V DC motor with fast start times.

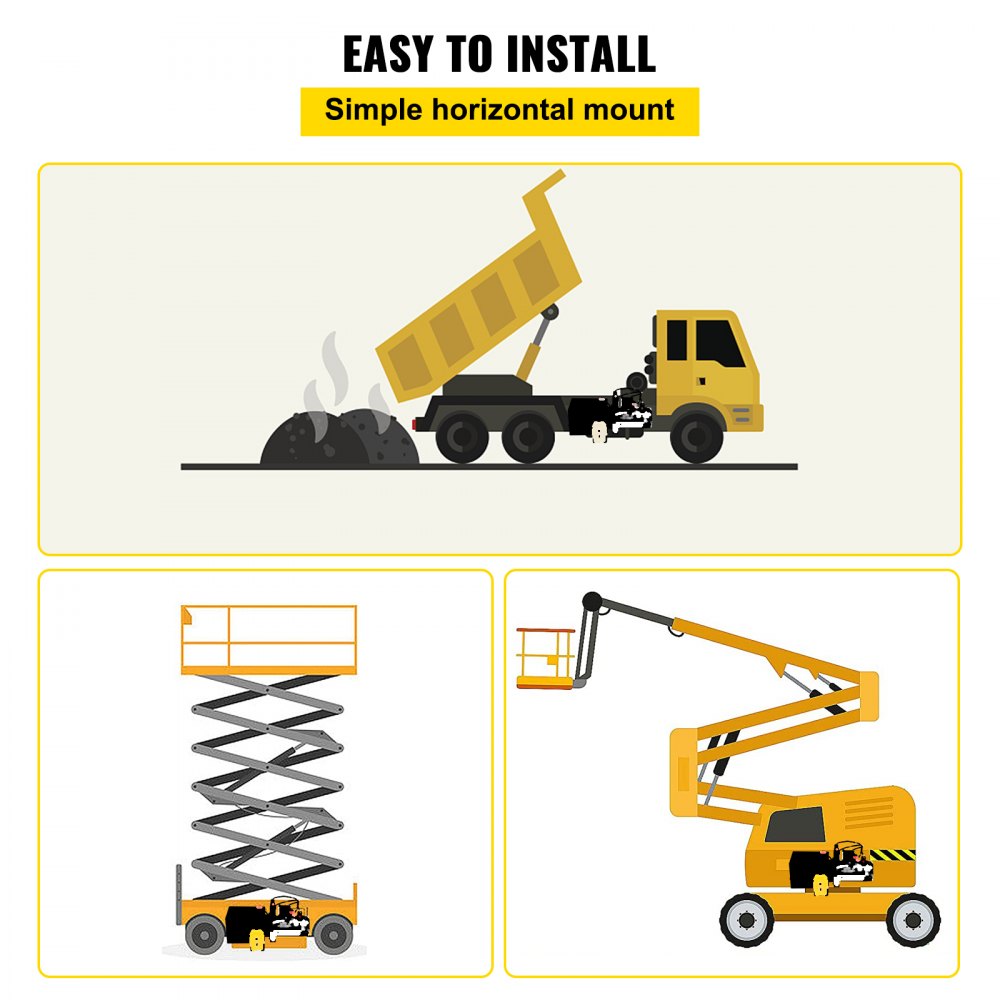

•Versatile for various applications including dump trailers and forklifts.
•Truck tailgate lift.
•RV leveling.
•Scissor lift.
•Dump trailers.
•Lift truck.
•Snowplow.
•Aerial platform.
•Material handling.
•Wheelchair lifts.

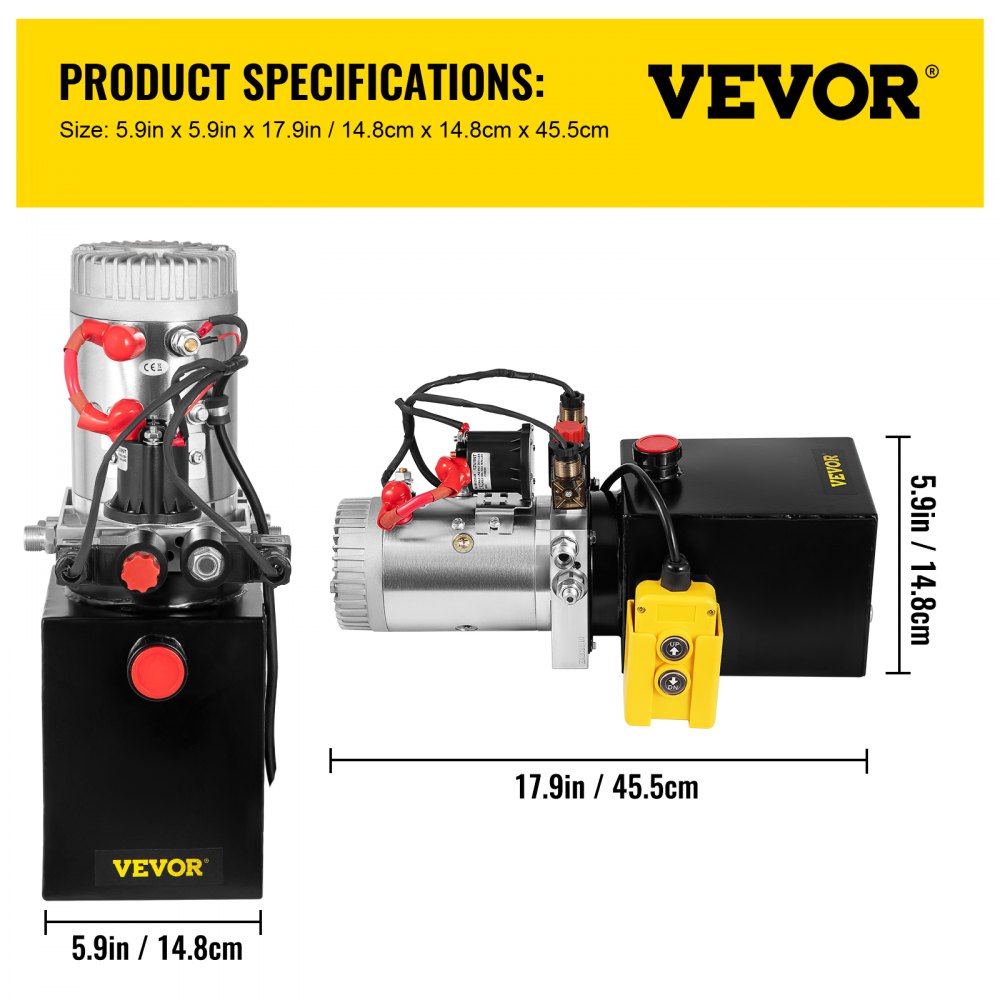

Specifications:
| Tank Material | Metal |
| Displacement of hydraulic pump | 0.825GPM |
| Pressure relief valve | 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port) |
| Rated speed | 2850R/MIN |
| Motor power | 1.6-3.0KW |
| Motor voltage | DC12-DV24 |
| Fuel tank | 4 quart |

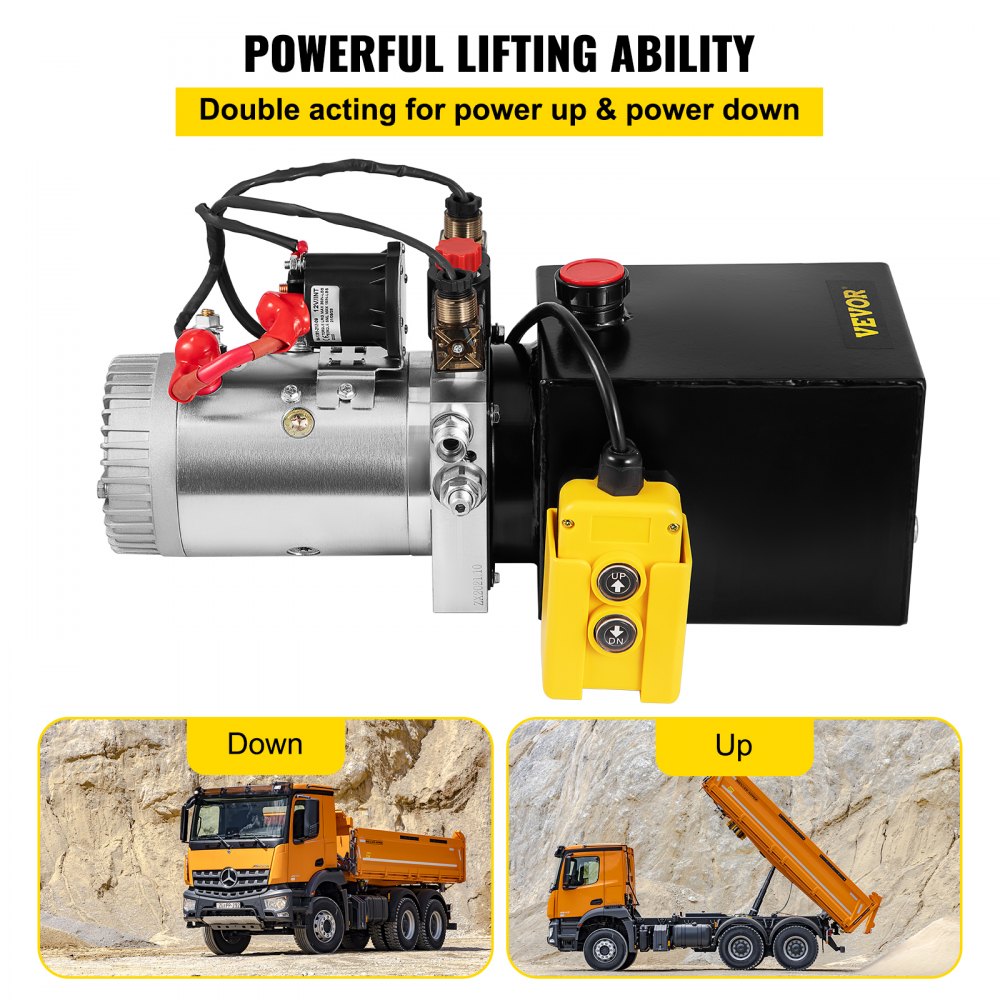

| Double acting Power | Power-Up/Power Down |
| 1500 PS Max Relief Setting on B port | |
| SAE # 6 Port | |
| Hand held pendant length | about 15 feet (4.5 m) removal cord |
