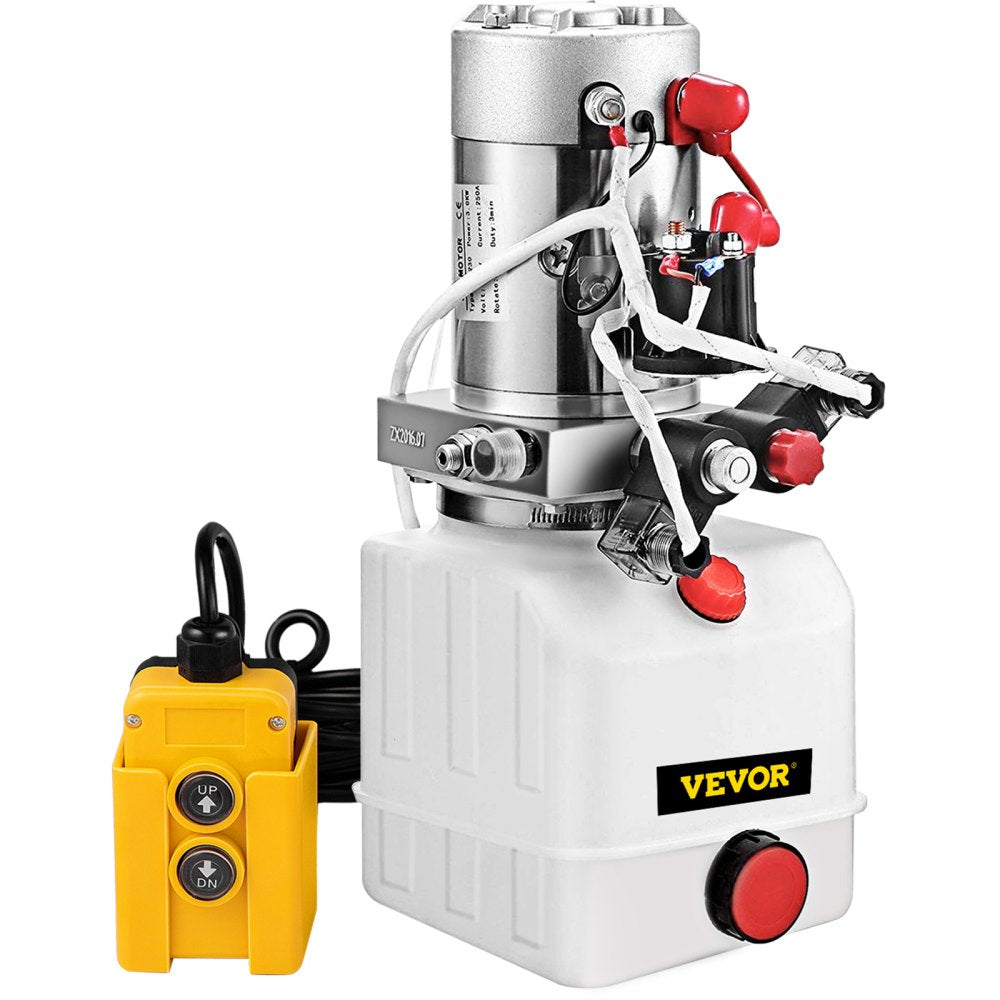

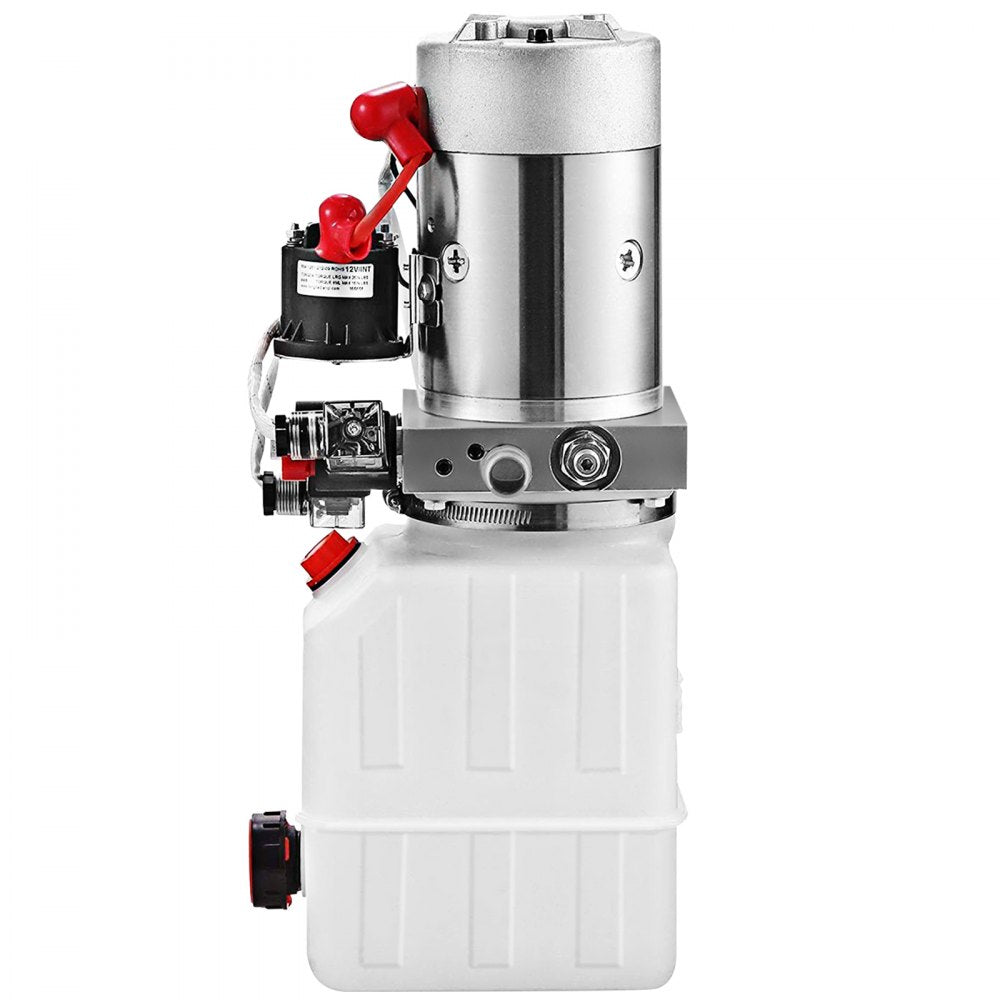

010732530224 - 4 Quart Double Acting Hydraulic Pump for Dump Trailers
010732530224 - 4 Quart Double Acting Hydraulic Pump for Dump Trailers
SKU: SKU: 010732530224 Download PDF
- 010732530224 - 4 Quart Double Acting Hydraulic Pump for Dump Trailers
- 010732530224 - 4 Quart Double Acting Hydraulic Pump for Dump Trailers
Couldn't load pickup availability
Description:

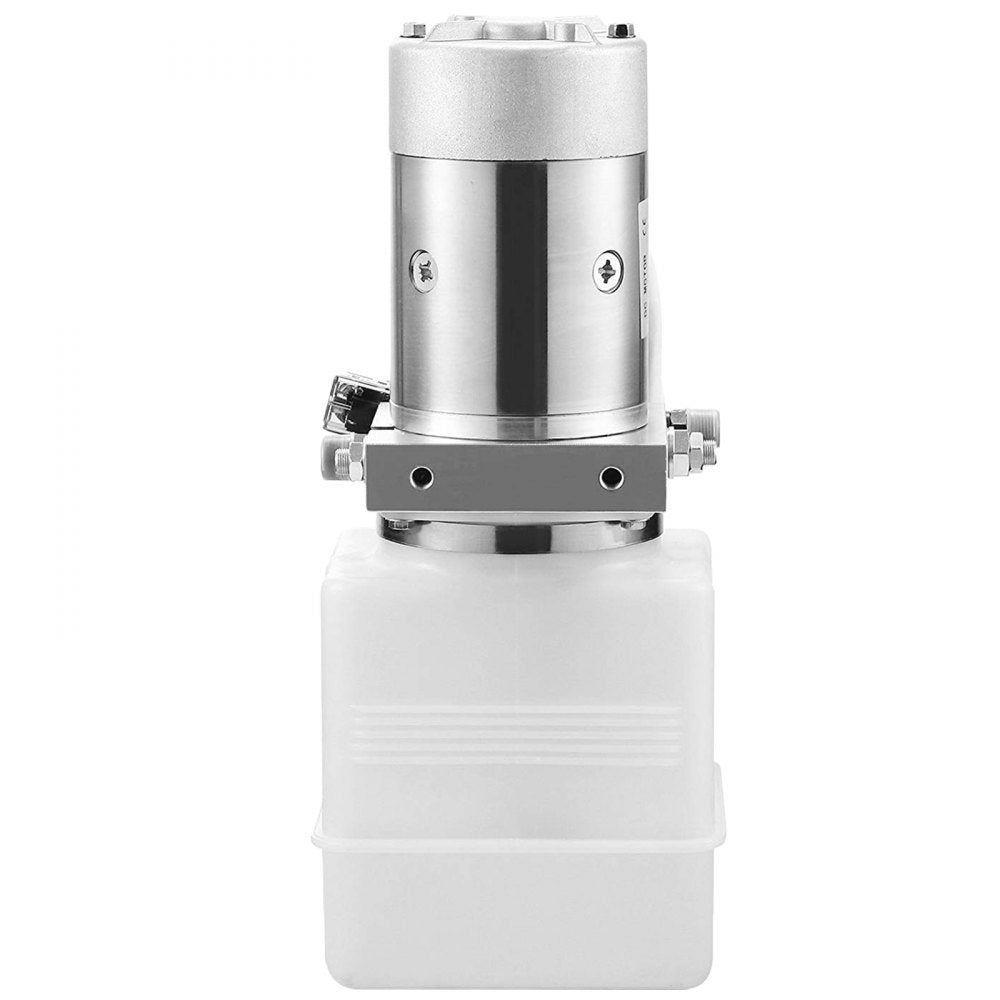

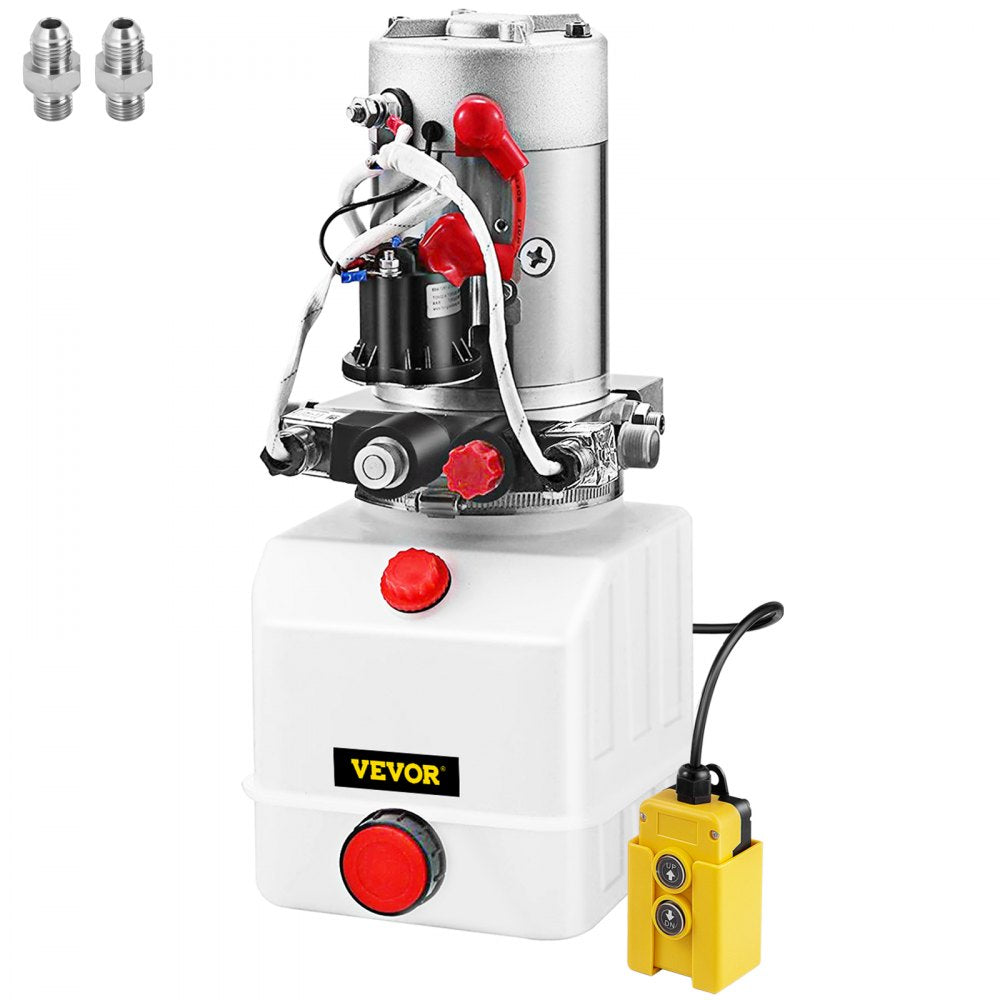

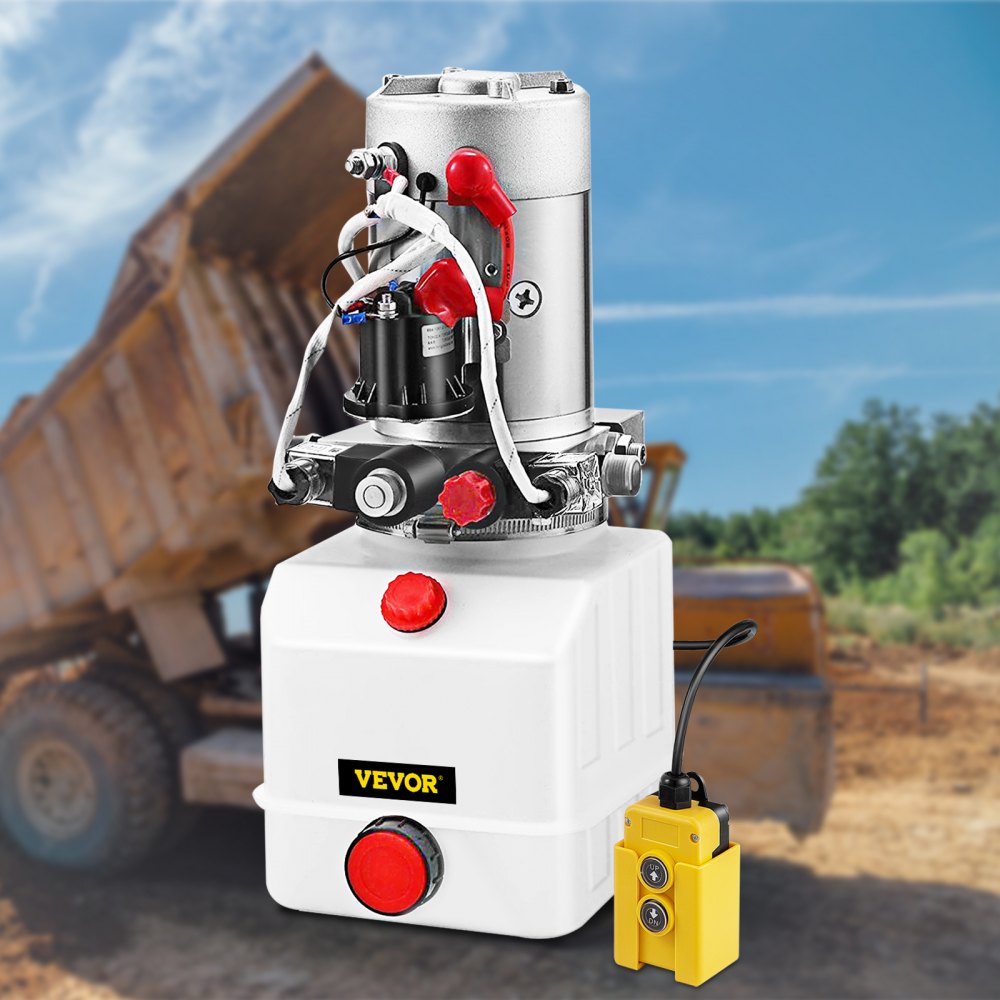

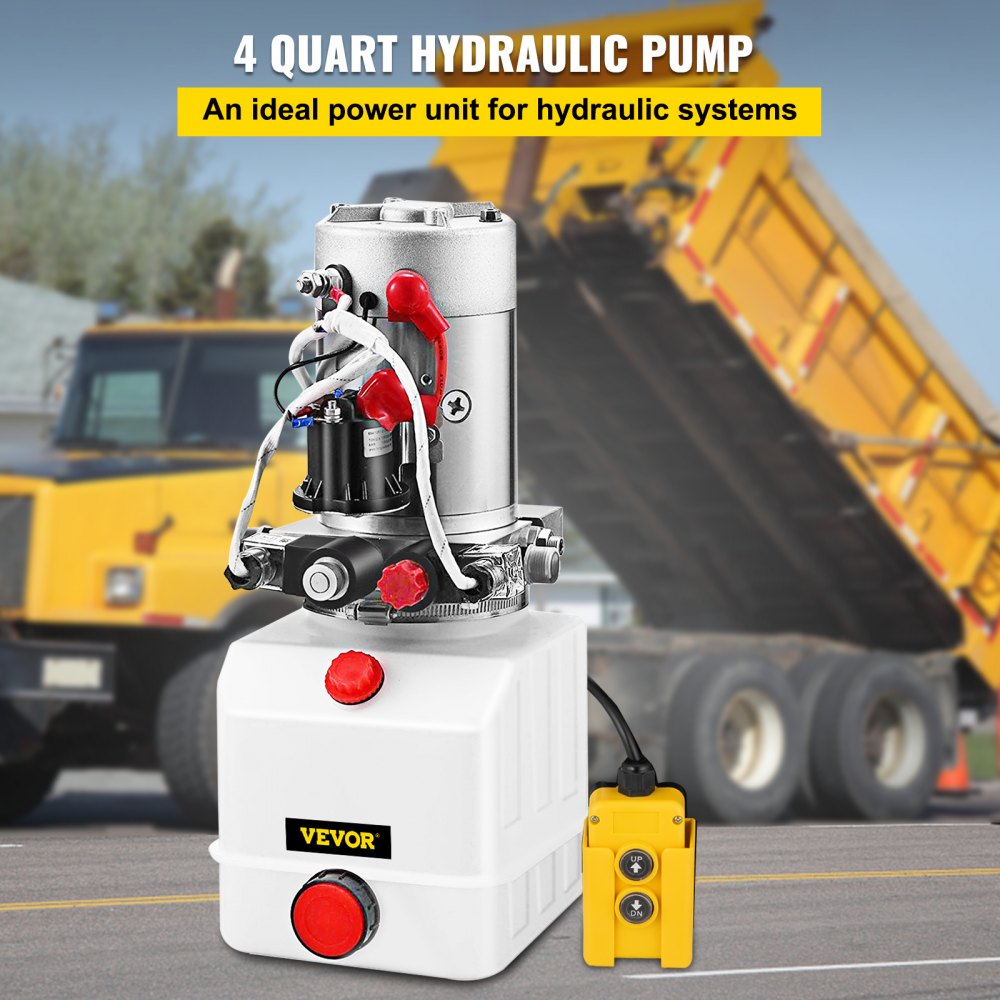

Experience reliable hydraulic power with this double-acting pump unit, expertly crafted for both lifting and lowering tasks It includes a robust 4-quart plastic reservoir and operates on a 12V DC motor, delivering impressive strength for various hydraulic systems, such as dump trailers, forklifts, and lifting platforms The pump is engineered for high performance, featuring a maximum relief pressure of 3200 PSI on the A port and 1500 PSI on the B port.
With a flow rate of 2 GPM, it's designed for durability and straightforward installation, making it an excellent choice for applications like truck tailgate lifts, RV leveling, and scissor lifts.
Features and Benefits:
•Easy to use and reliable quality.

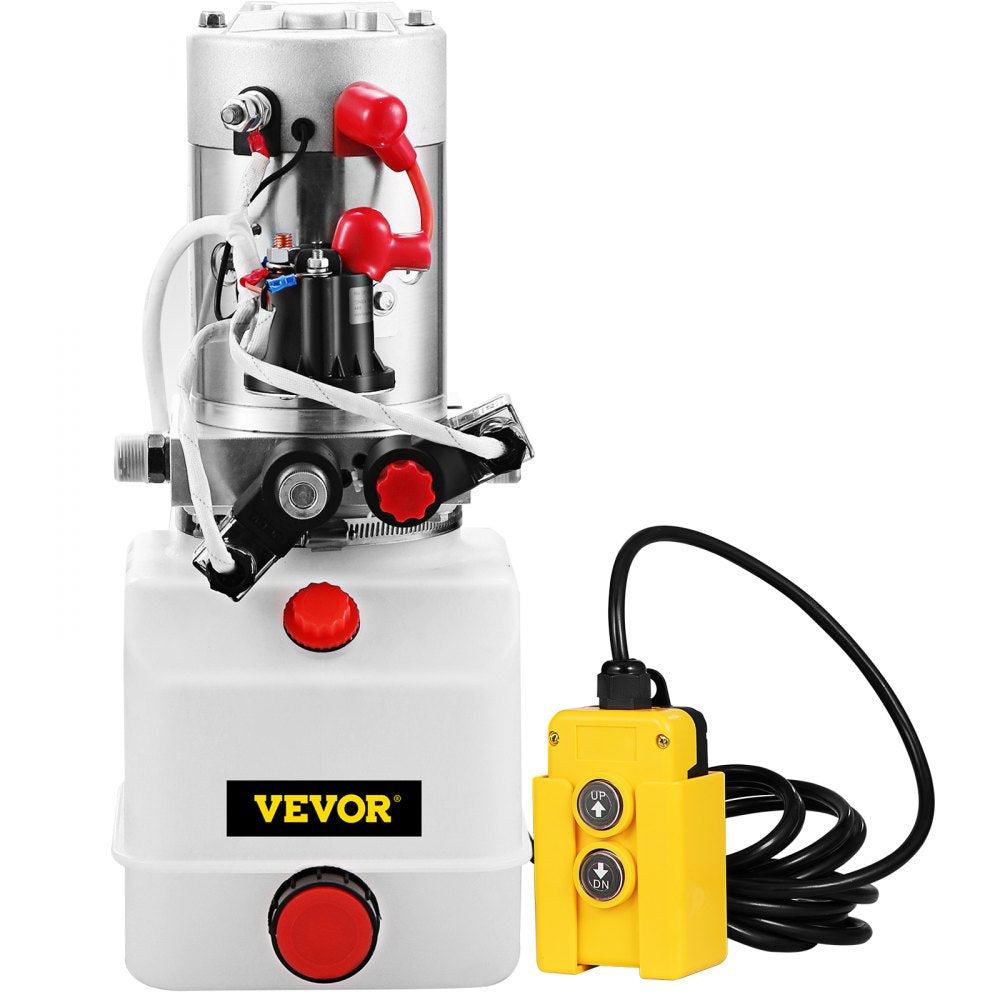

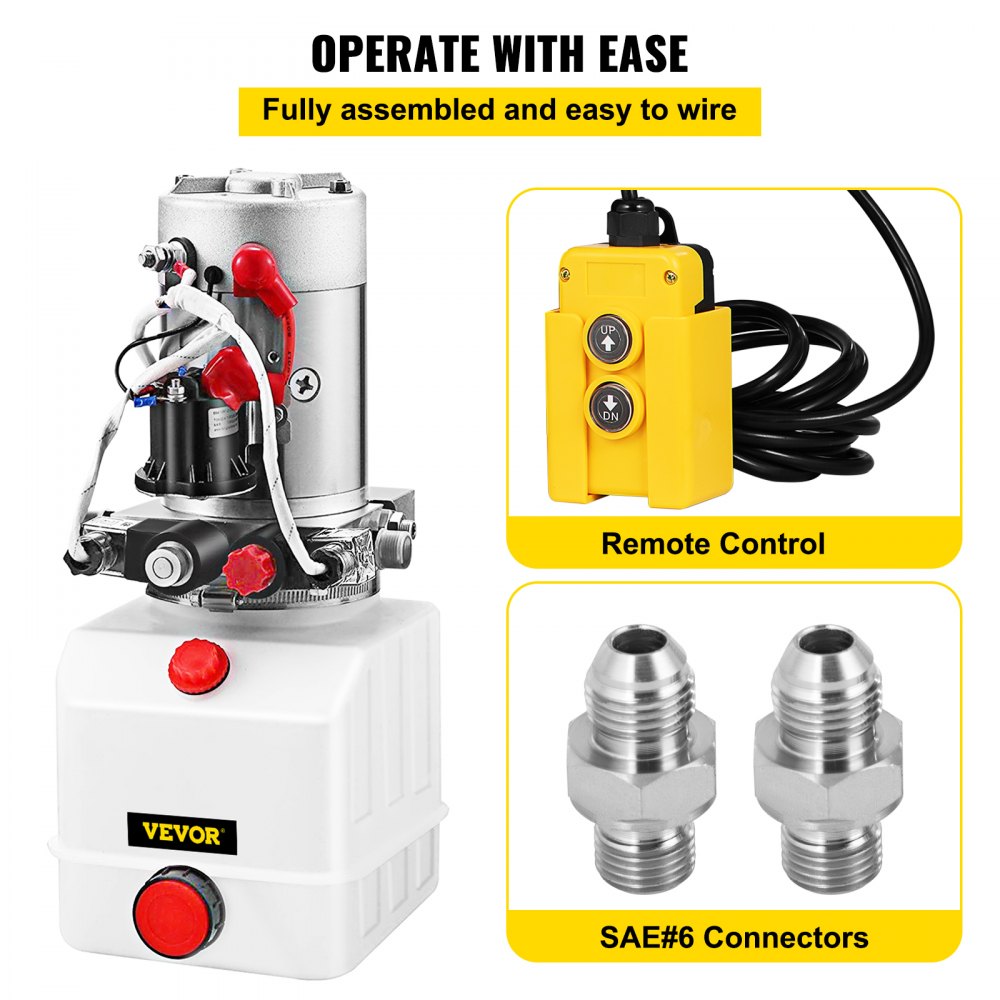

•Includes a hand-held remote control with a 15-ft removable cord.
•Rapid start with strong lifting power.

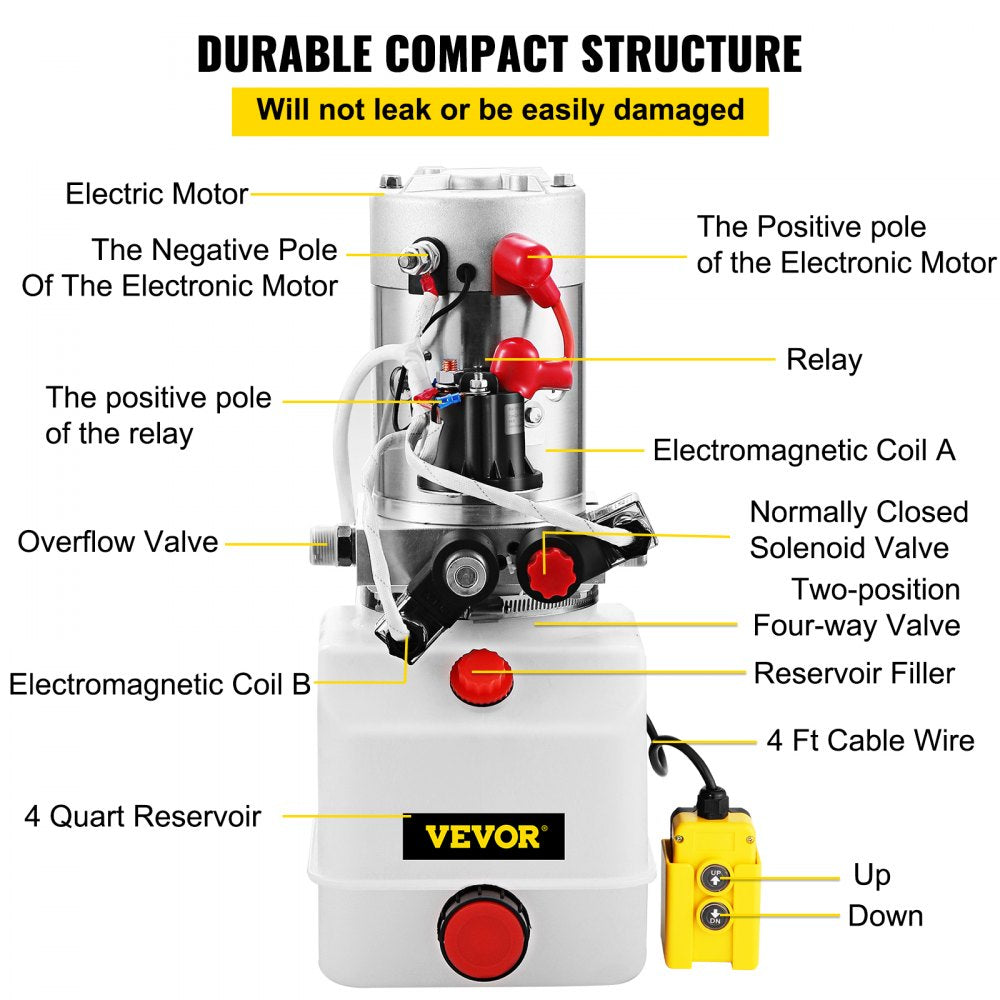

•Durable construction with a 4-quart translucent reservoir.

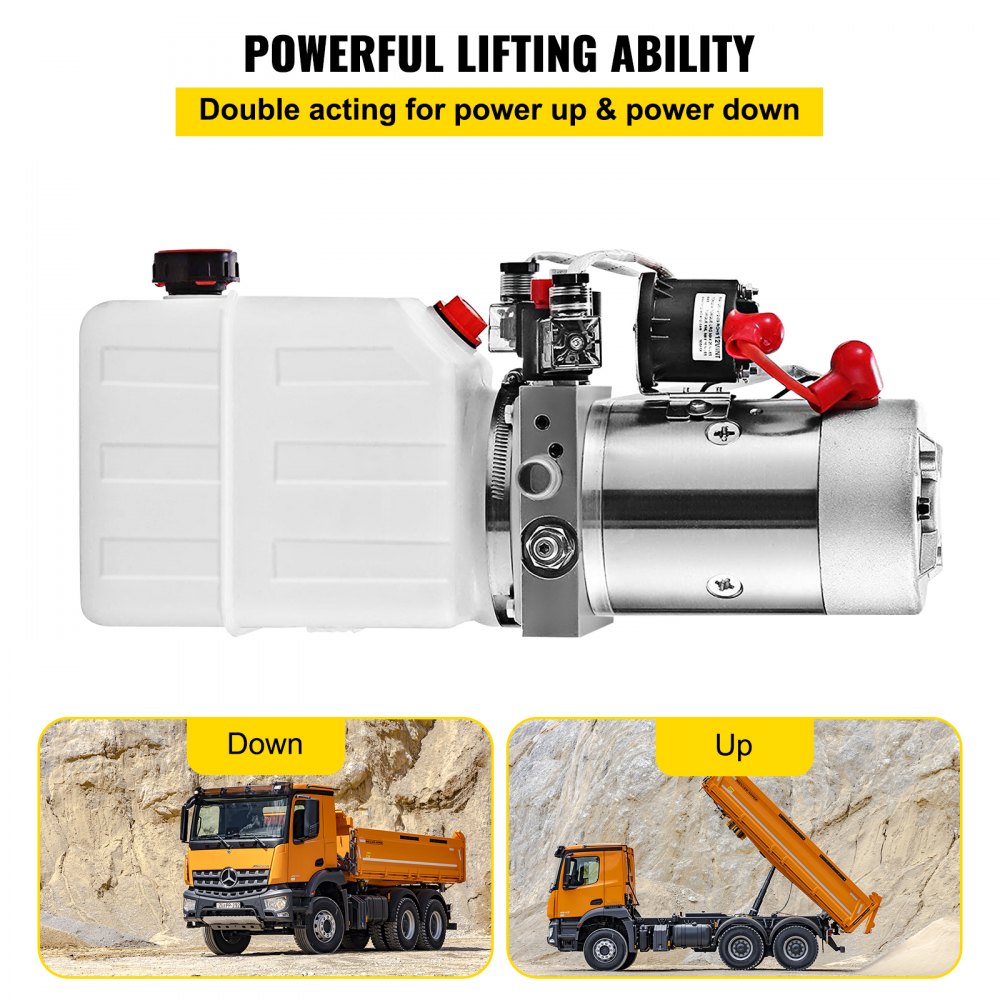

•Double-acting power for efficient operation.
•Dump trailers.
•Forklifts.
•Lifting platforms.
•RV leveling.
•Scissor lifts.
•Material handling.

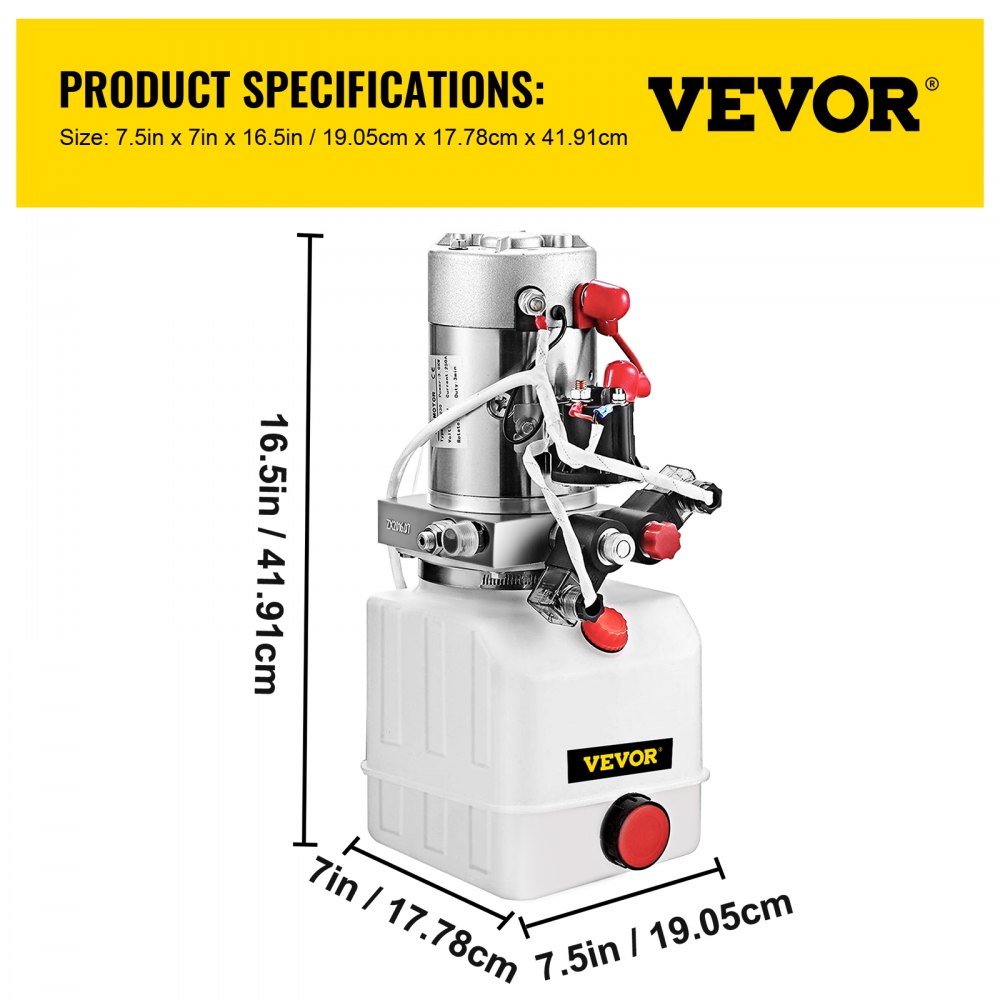

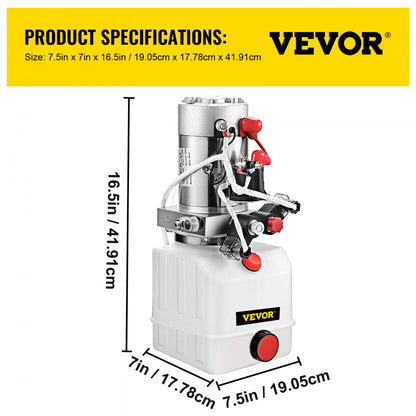

Specifications:
| Material of tank | Plastic |
| Displacement of hydraulic pump | 0.825 GPM |
| Pressure relief valve | 22 MPA (3200 PSI Max. Relief Setting for Increased Lifting Power on A port) |
| Rated speed | 2850 R/MIN |
| Motor power | 1.6-3.0 KW |
| Motor voltage | DC 12V |
| Fuel tank | 4 L |
| Double acting | Power-Up/Power Down |
| 1500 PSI Max Relief Setting on B port | |
| 4 Quart Translucent Reservoir | |
| SAE # 6 Port | |
| Horizontal mount | |
| Hand held pendant | with about 15 feet (177 in/4.5 m) removal cord and start solenoid |
