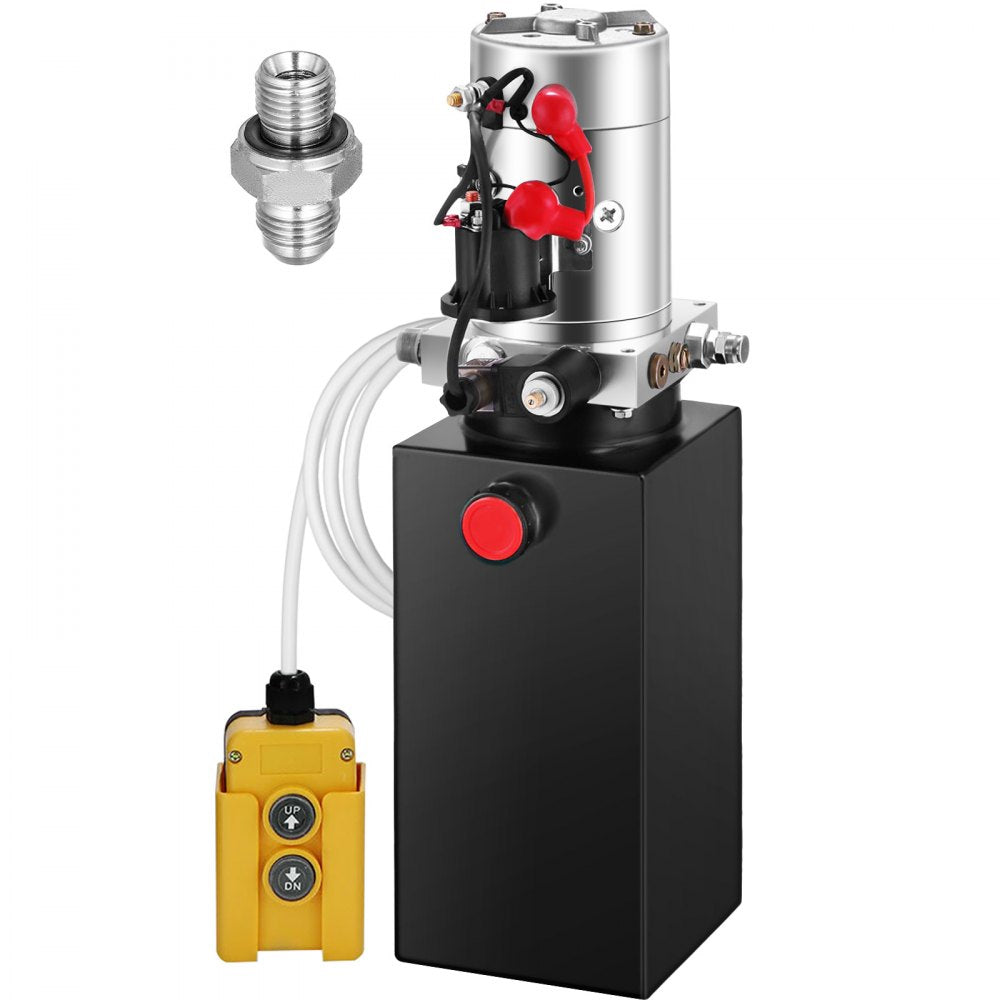

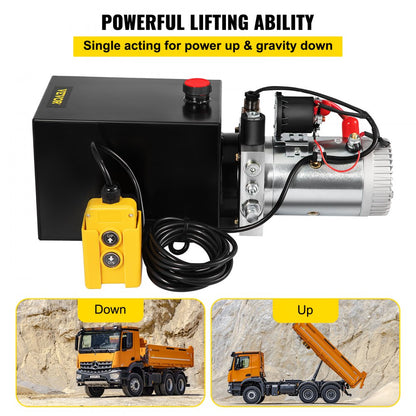

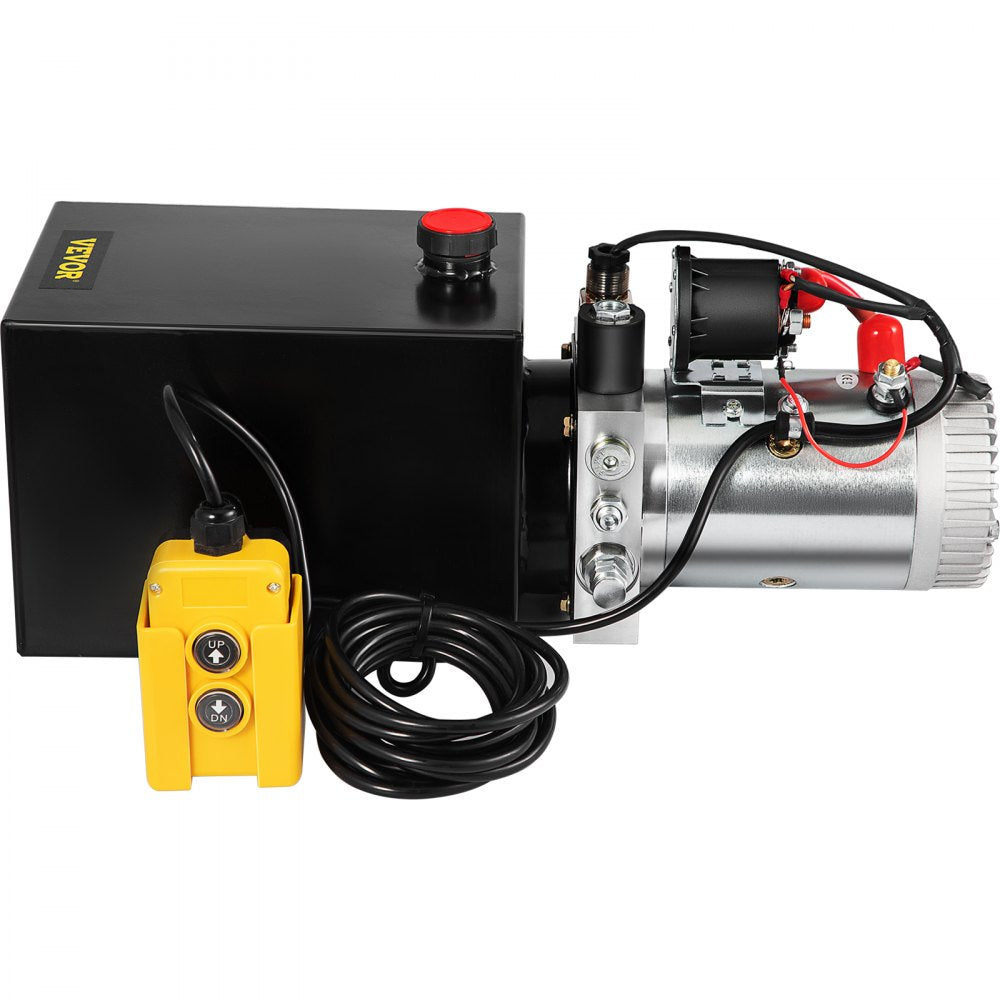

010683655341 - 6 Quart 12V DC Hydraulic Power Unit for Dump Trailers
010683655341 - 6 Quart 12V DC Hydraulic Power Unit for Dump Trailers
SKU: SKU: 010683655341 Download PDF
- 010683655341 - 6 Quart 12V DC Hydraulic Power Unit for Dump Trailers
- 010683655341 - 6 Quart 12V DC Hydraulic Power Unit for Dump Trailers
Couldn't load pickup availability

Description:

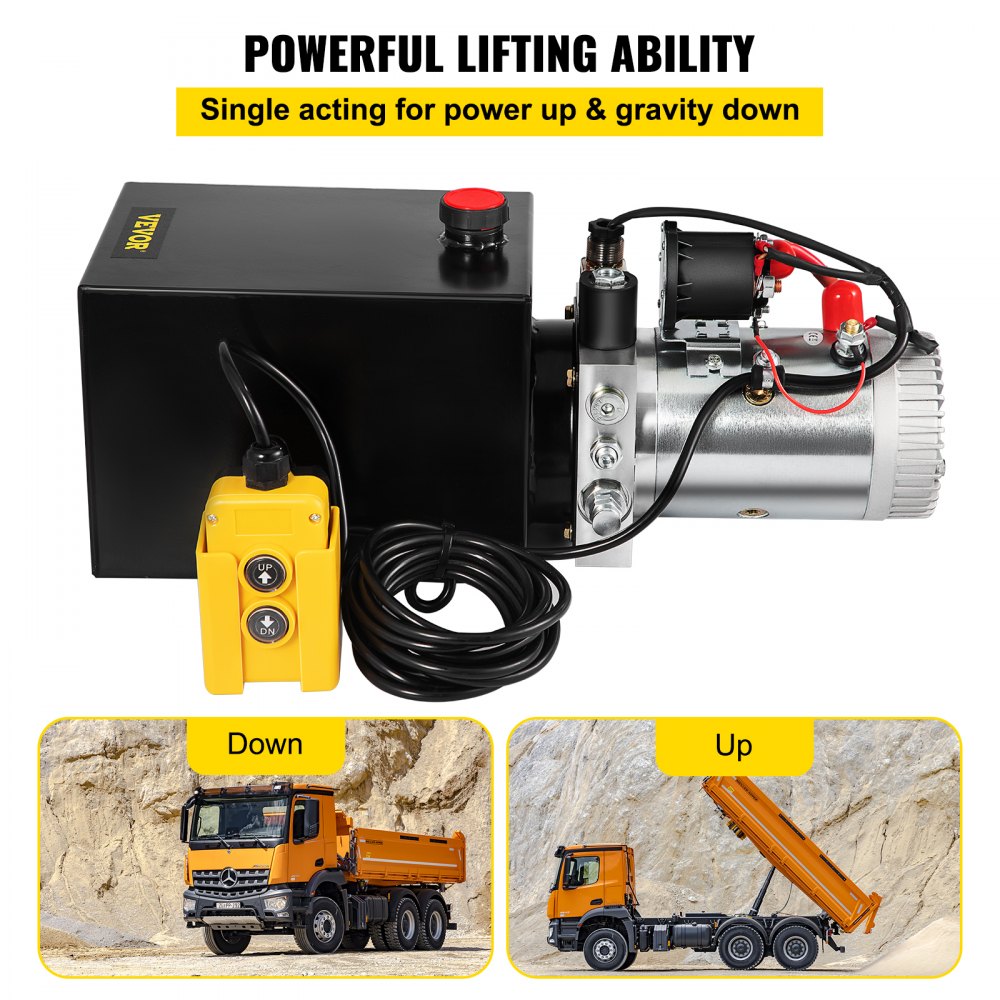

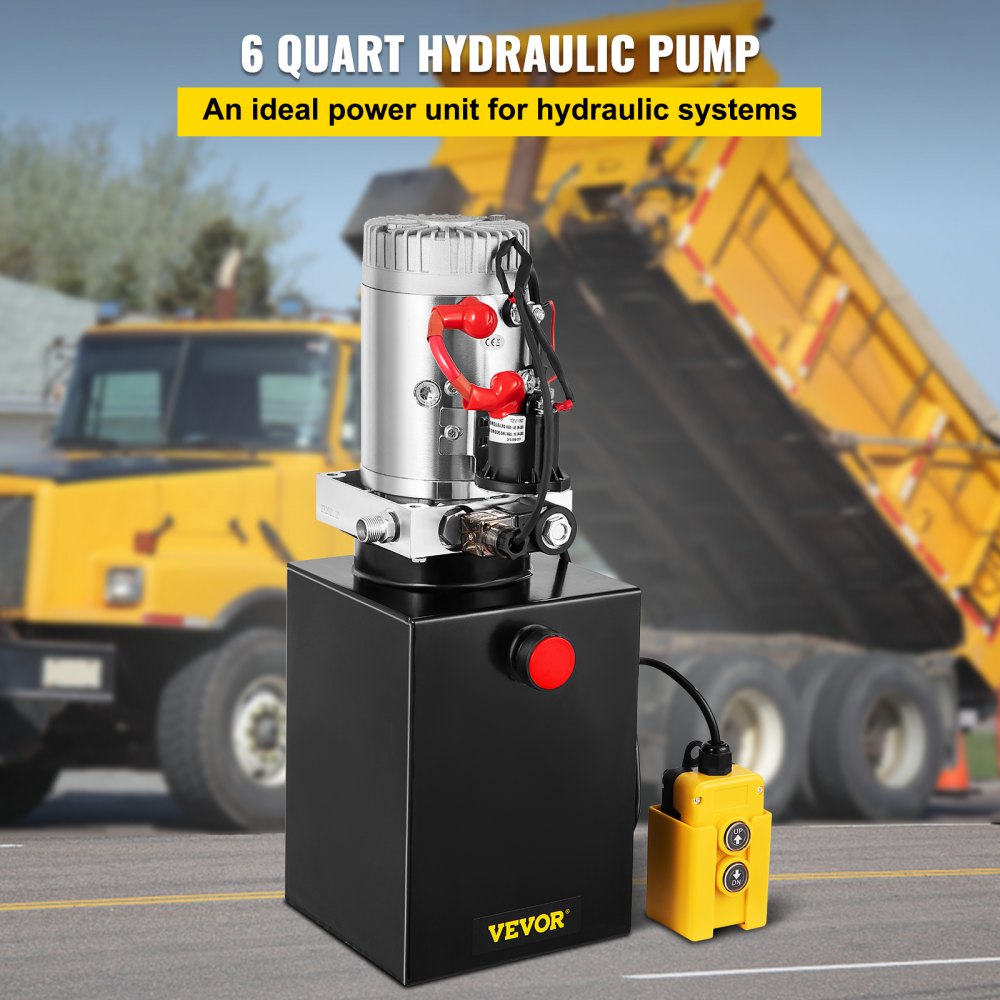

Introducing a powerful solution for your hydraulic needs, this single-acting hydraulic pump features a robust 6-quart metal reservoir Equipped with a 12V DC motor, it delivers impressive power ideal for hydraulic applications such as dump trailers, forklifts, and lifting platforms This hydraulic power unit is specifically crafted to ensure seamless and efficient operations, allowing for power-up and gravity-down functionality.
Designed for reliability and ease of use, it provides the necessary capability for extended applications while maintaining consistent performance.
Features and Benefits:
•Easy to Use.
•Reliable Quality.
•Rapid Start.
•Wide Application.
•Convenient Design.
•Quick Start&Lifting.
•Long Lasting.
•Simple Installation.
•Suitable for various applications including dump trailers and lifts.
•Dump trailers.
•Forklifts.
•Lifting platforms.
•Truck tailgate lift.
•RV leveling.
•Scissor lift.
•Lift truck.
•Snowplow.
•Aerial platform.
•Road signs.
•Material handling.
•Wheelchair lifts.
Specifications:
| Mode | Single-Acting Power-Up/ Gravity-Down |
| Tank Material | Metal |
| Tank Capacity | 6L/ 6Quart/ 1.5 Gal |
| Flow | 2.0 GPM |
| Max. Relief Valve Setting A Port | 3200 PSI |
| Max. Relief Valve Setting B Port | 1500 PSI |
| Rated Speed | 2850R/MIN |
| Voltage | DC12V |
| Power | 1.6KW (Rated), 3.0KW (Max) |
| Duty | 3 Min |
| Traffic | 1.1 cc/r |
| Rotation | Clockwise |

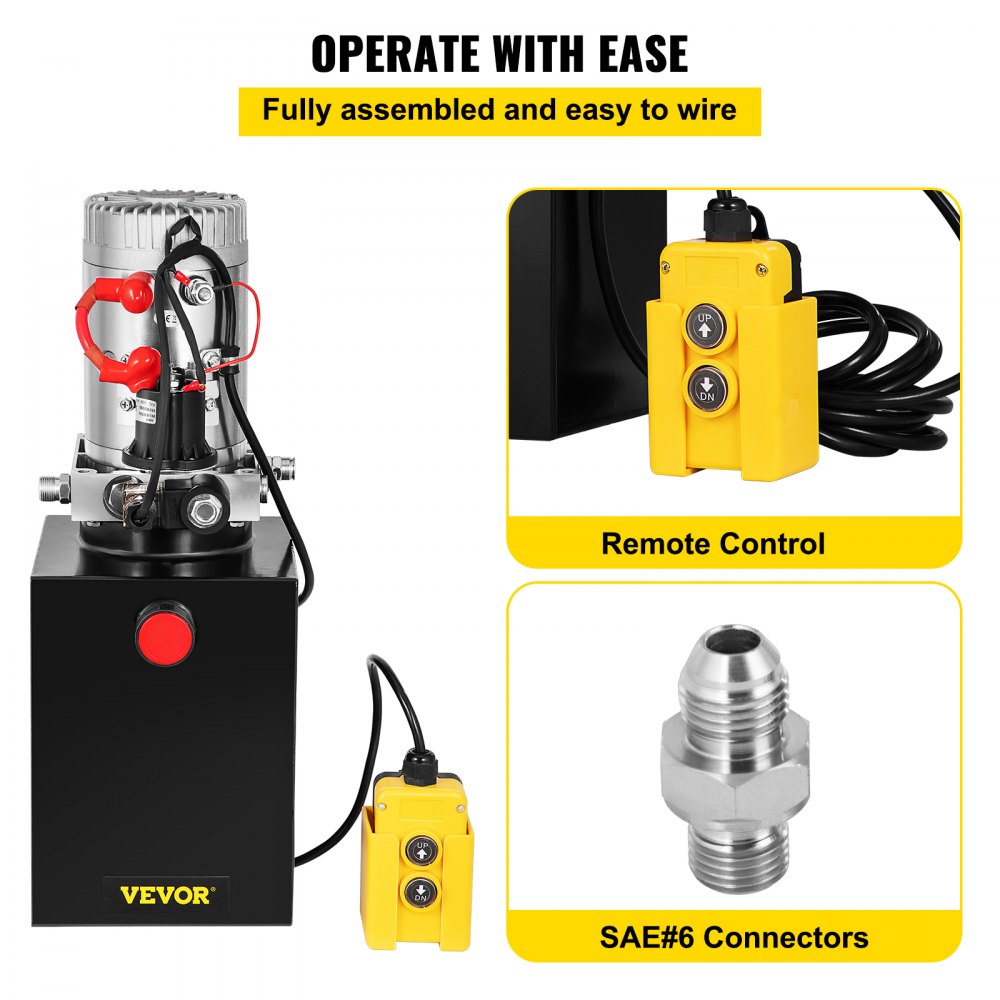

| Connector | SAE # 6 |
| Mount Position | Horizontal/ Vertical |
| Control | Solenoid and Handheld Pendant |
| Pendant Control Length | 15ft/ 4.5 m |
