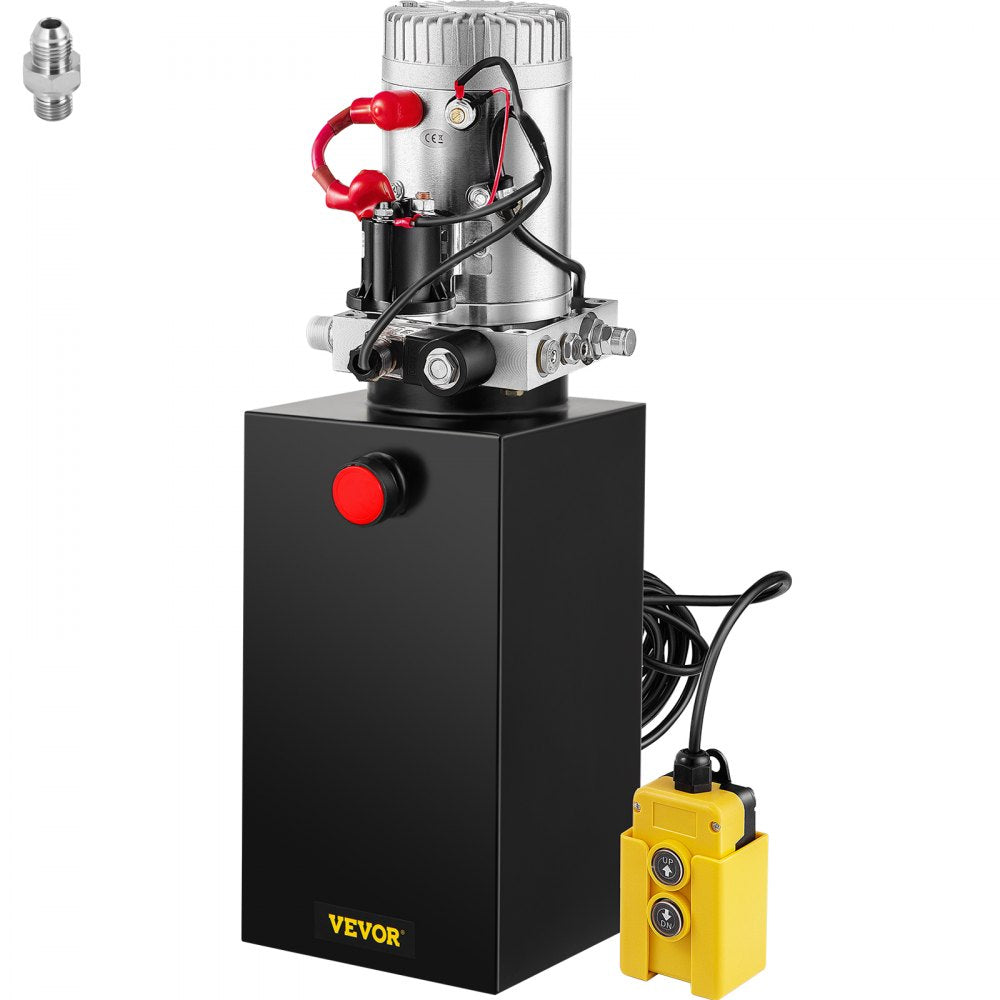

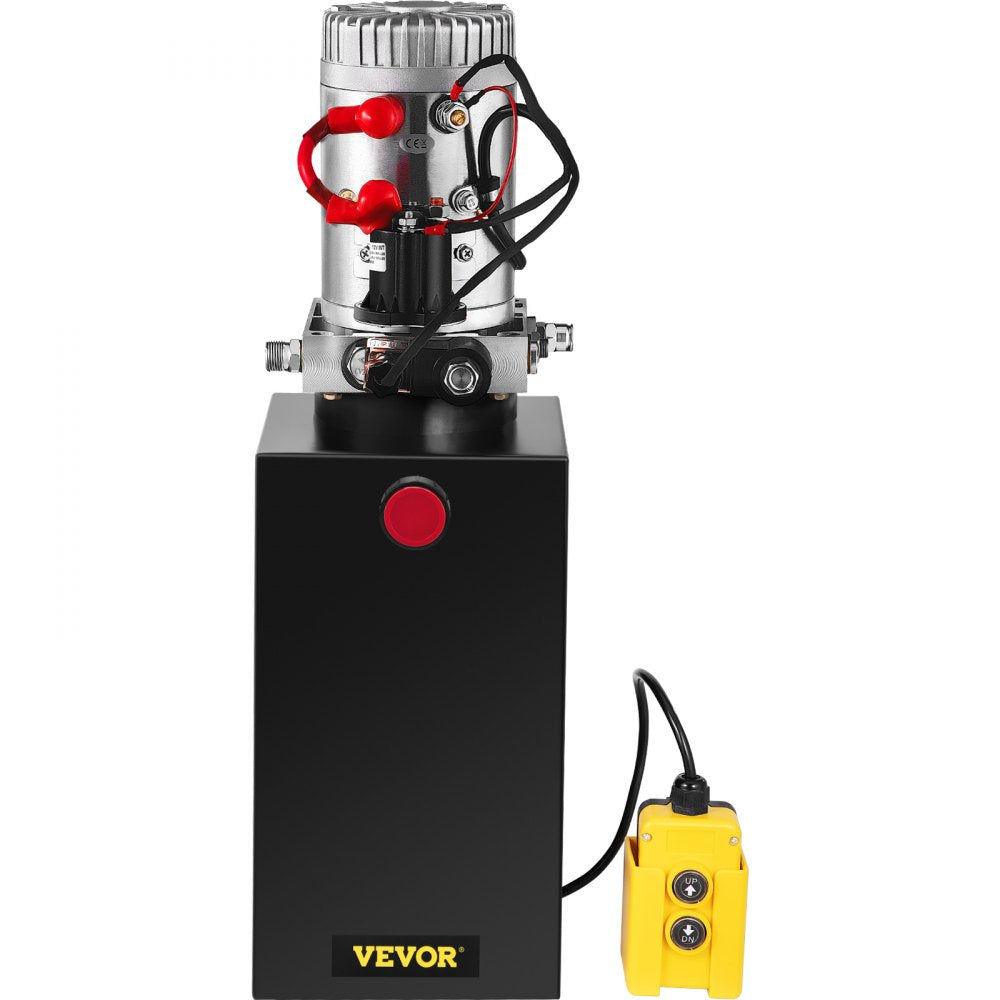

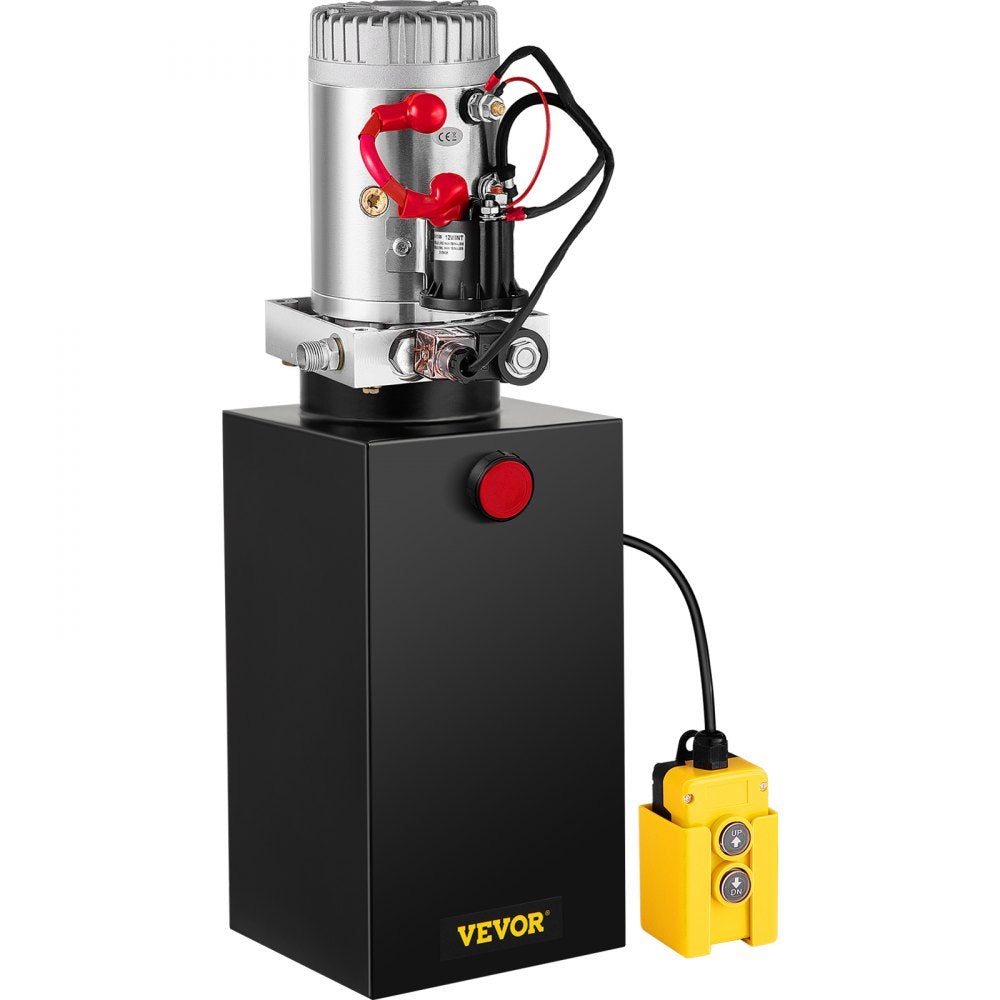

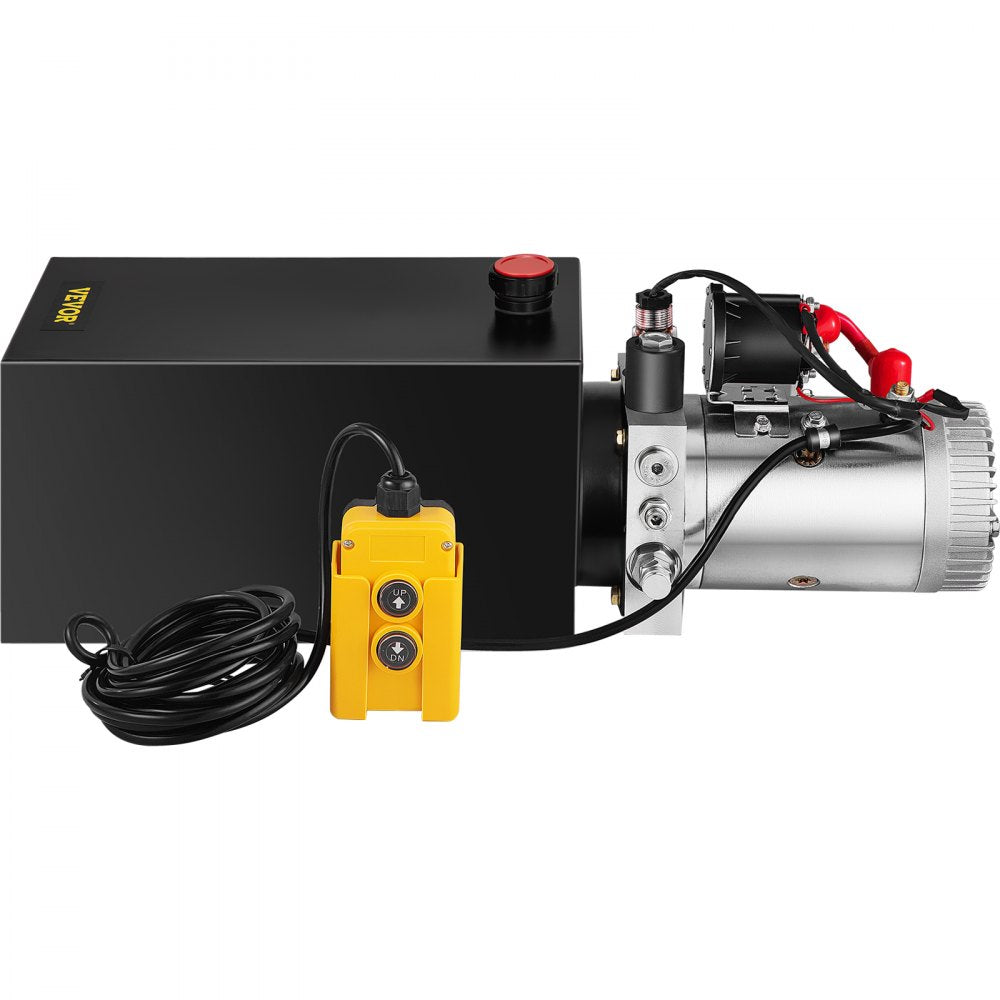

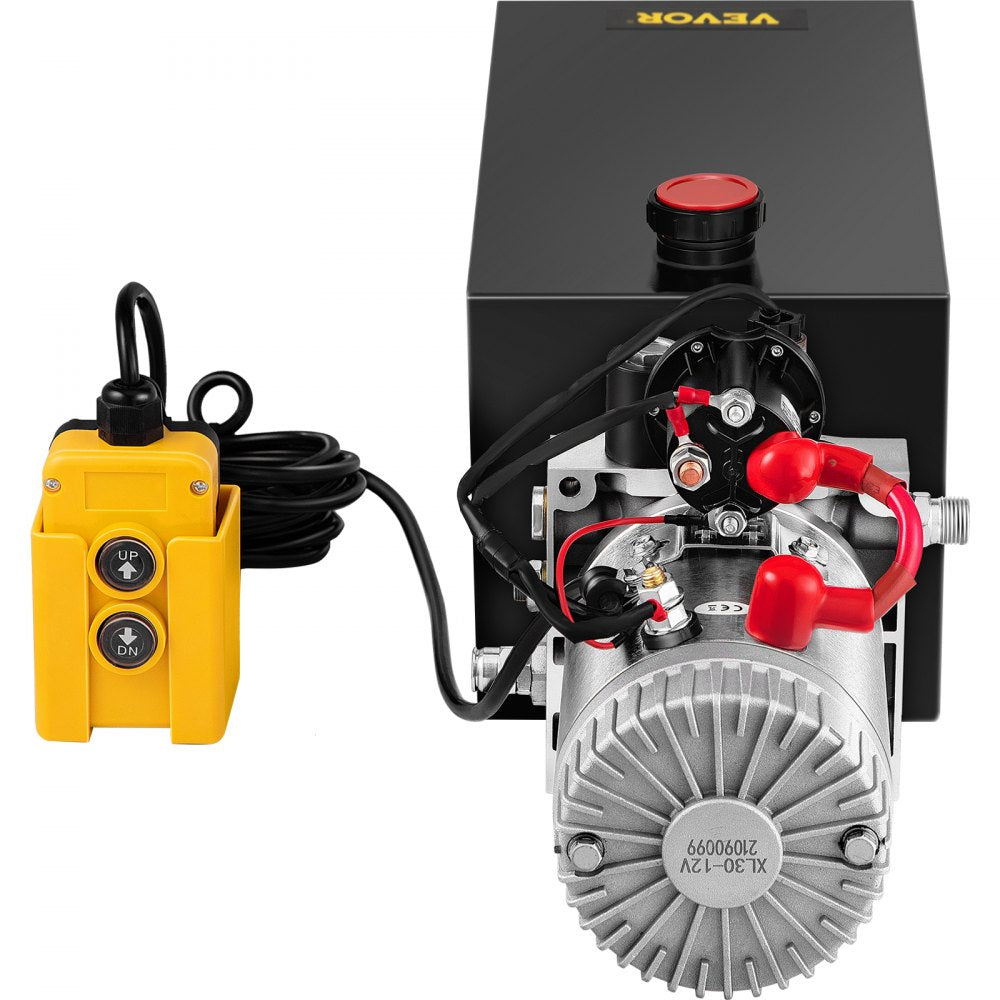

10QSAMHP - 10 Quart Metal Hydraulic Pump with 12V DC Motor

10QSAMHP - 10 Quart Metal Hydraulic Pump with 12V DC Motor

SKU: SKU: 10QSAMHP Download PDF

Variant:
  • 10QSAMHP - 10 Quart Metal Hydraulic Pump with 12V DC Motor
Regular price Now $200.40
Regular price BEFORE   $0.00 Sale price Now $200.40
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

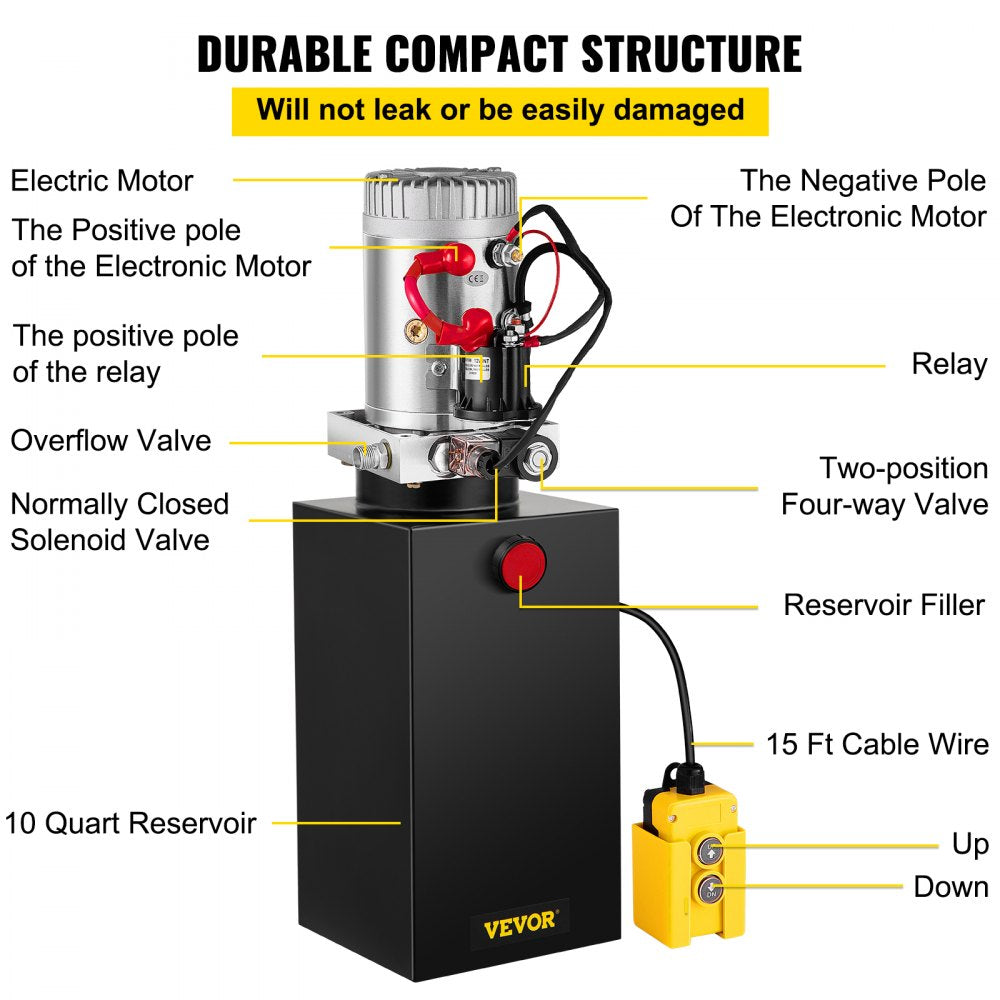

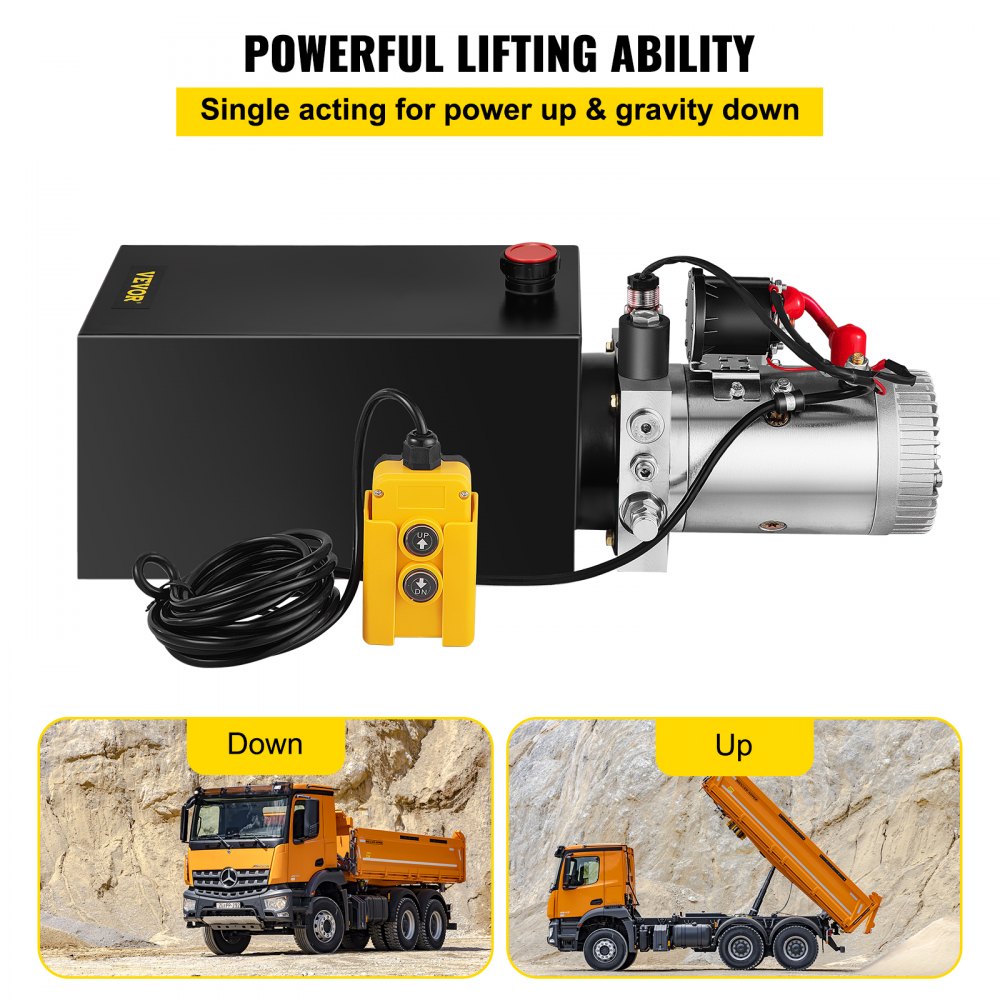

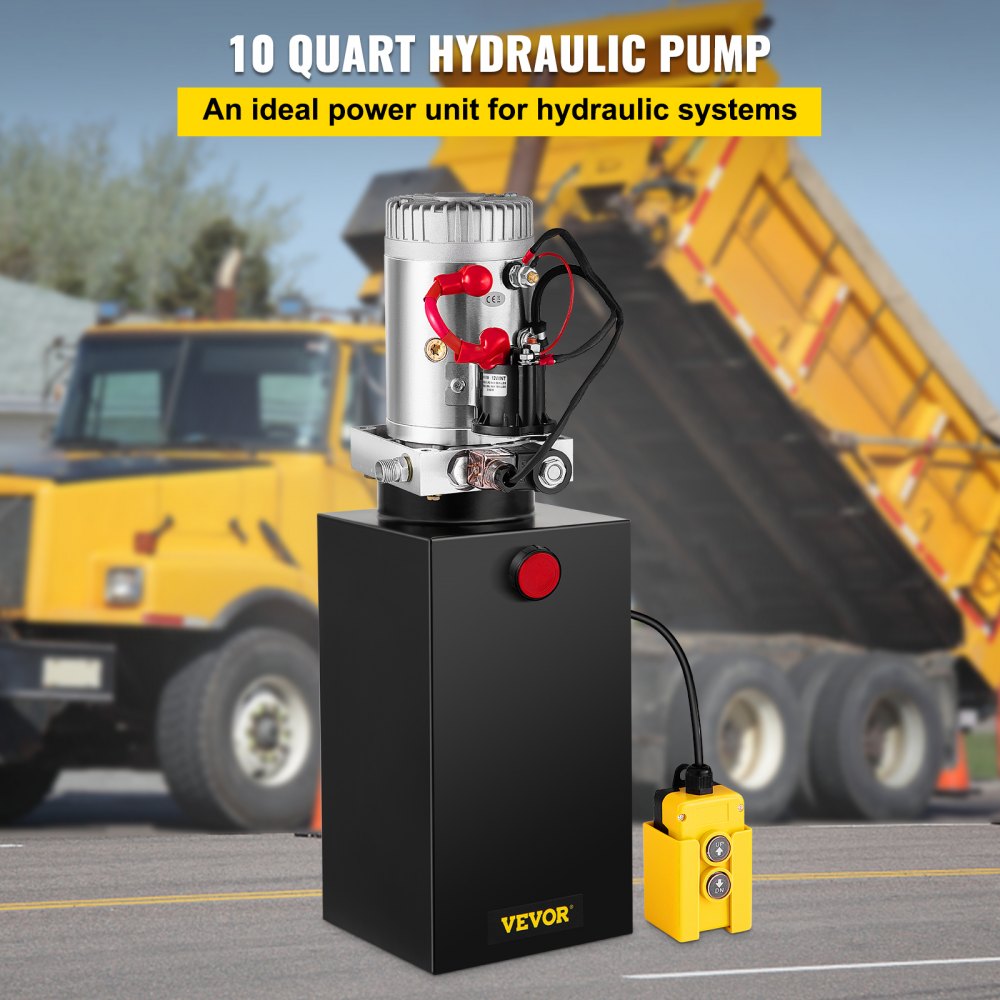

Introducing a robust hydraulic pump that excels in single-acting operations, allowing you to power up effortlessly and descend by gravity With a durable 10-quart metal reservoir, this unit is equipped with a 12V DC motor, delivering reliable strength for various hydraulic applications Perfectly suited for dump trailers, forklifts, lifting platforms, and more, it promises excellent performance and durability for your hydraulic system needs.

Features and Benefits:

    •Easy to Use.

    •Reliable Quality.

    •Rapid Start.

    •Wide Application.

    •Used for truck tailgate lift.

    •RV leveling.

    •scissor lift.

    •dump trailers.

    •lift truck.

    •snowplow.

    •aerial platform.

    •road signs.

    •material handling.

    •wheelchair lifts.

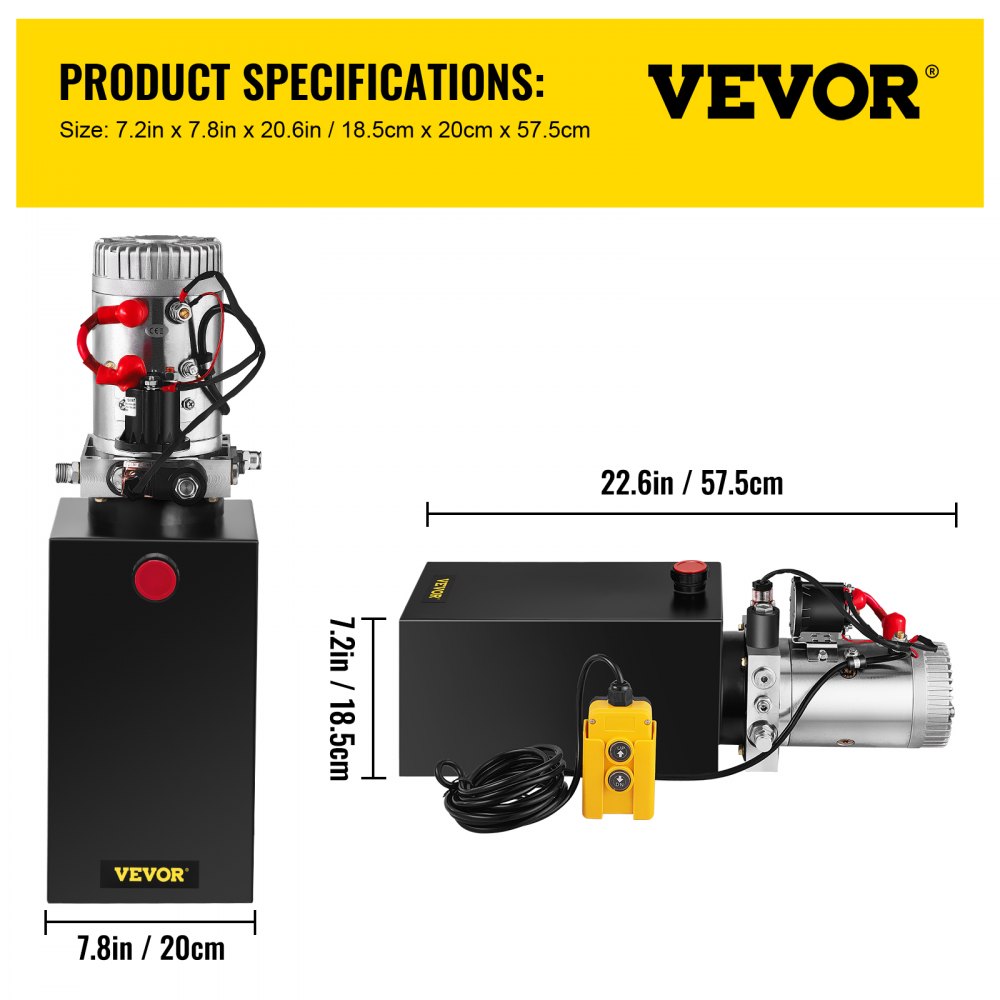

Specifications:

 Model 10QSAMHP
 Tank Material Metal
 Tank Capacity 10L/ 10Quart/ 2.5 Gal
 Flow 2.0 GPM
 Max. Relief Valve Setting A Port 3200 PSI
 Max. Relief Valve Setting B Port 1500 PSI
 Rated Speed 2850 R/MIN
 Voltage DC12V
 Power 1.6KW (Rated), 3.0KW (Max)
 Duty 3 Min
 Traffic 1.1 cc/r
 Rotation Clockwise

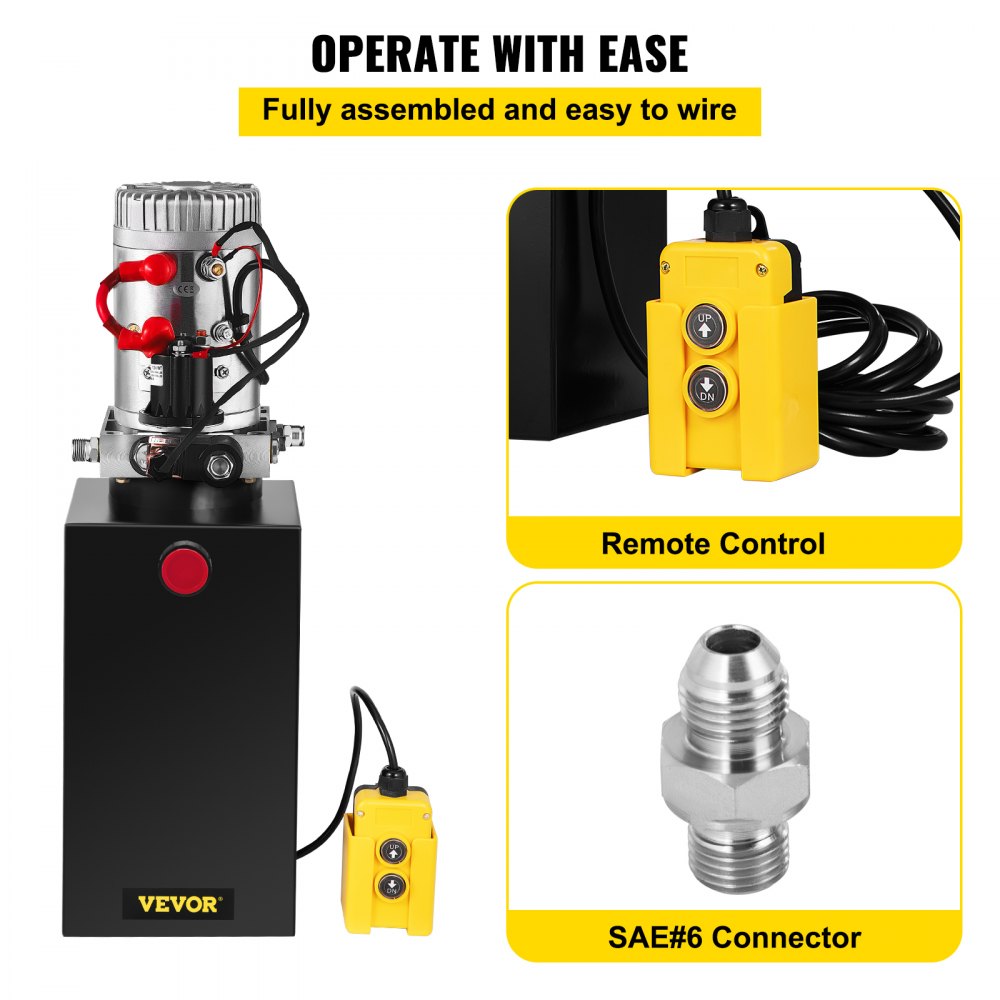

 Connector SAE # 6

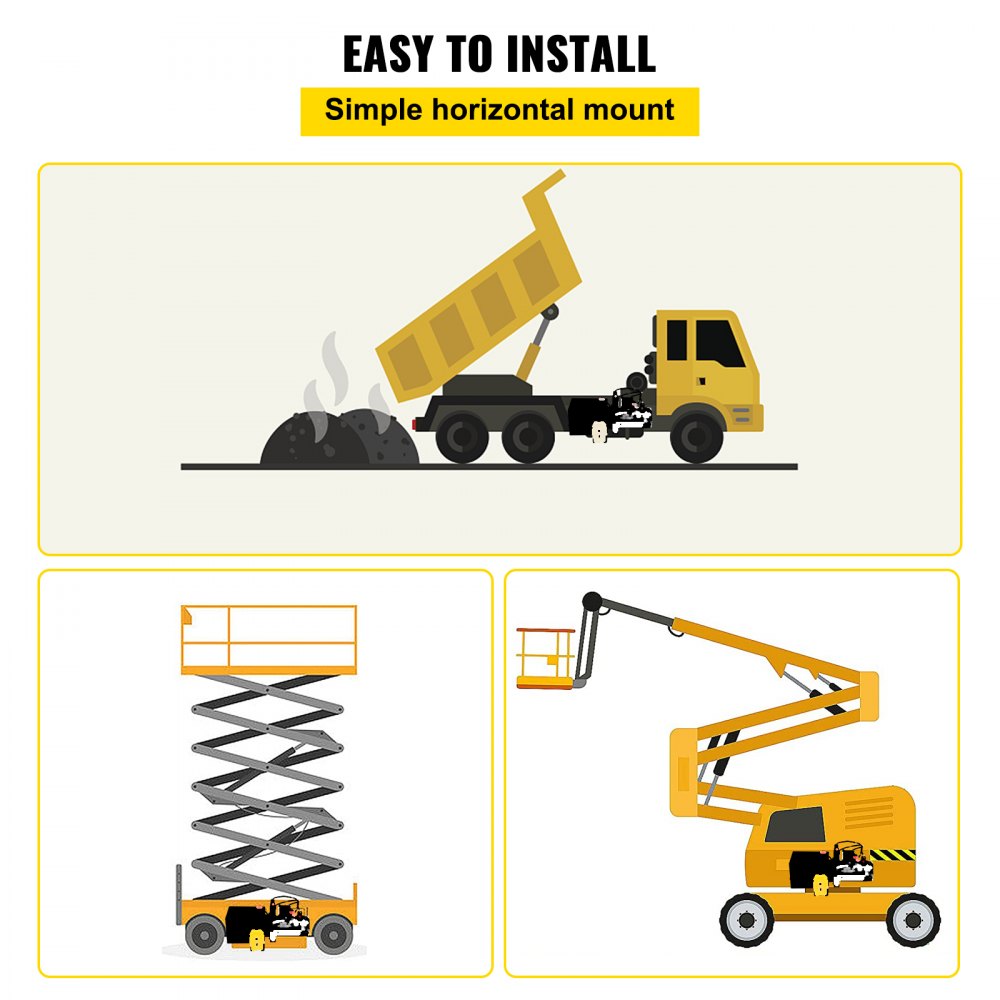

 Mount Position Horizontal/ Vertical
 Control Solenoid and Handheld Pendant
 Pendant Control Length 15ft/ 4.5 m
