Description:

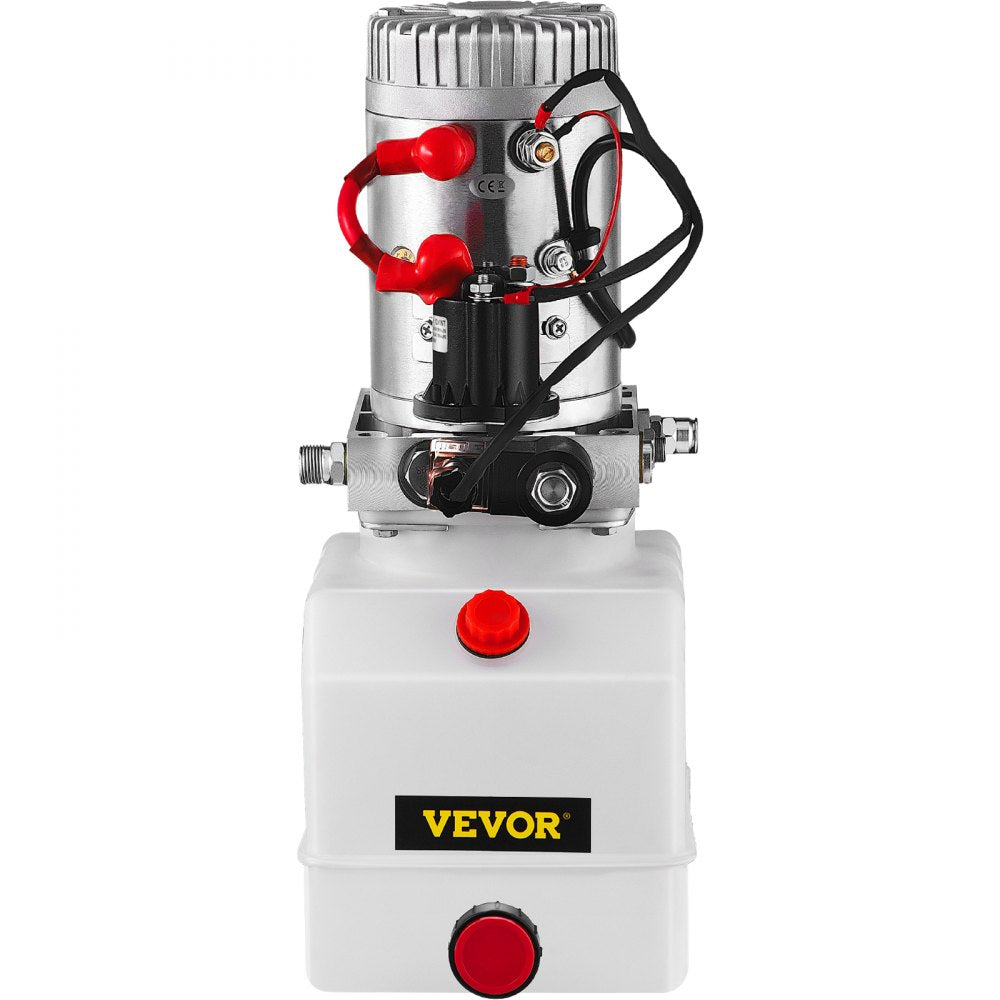

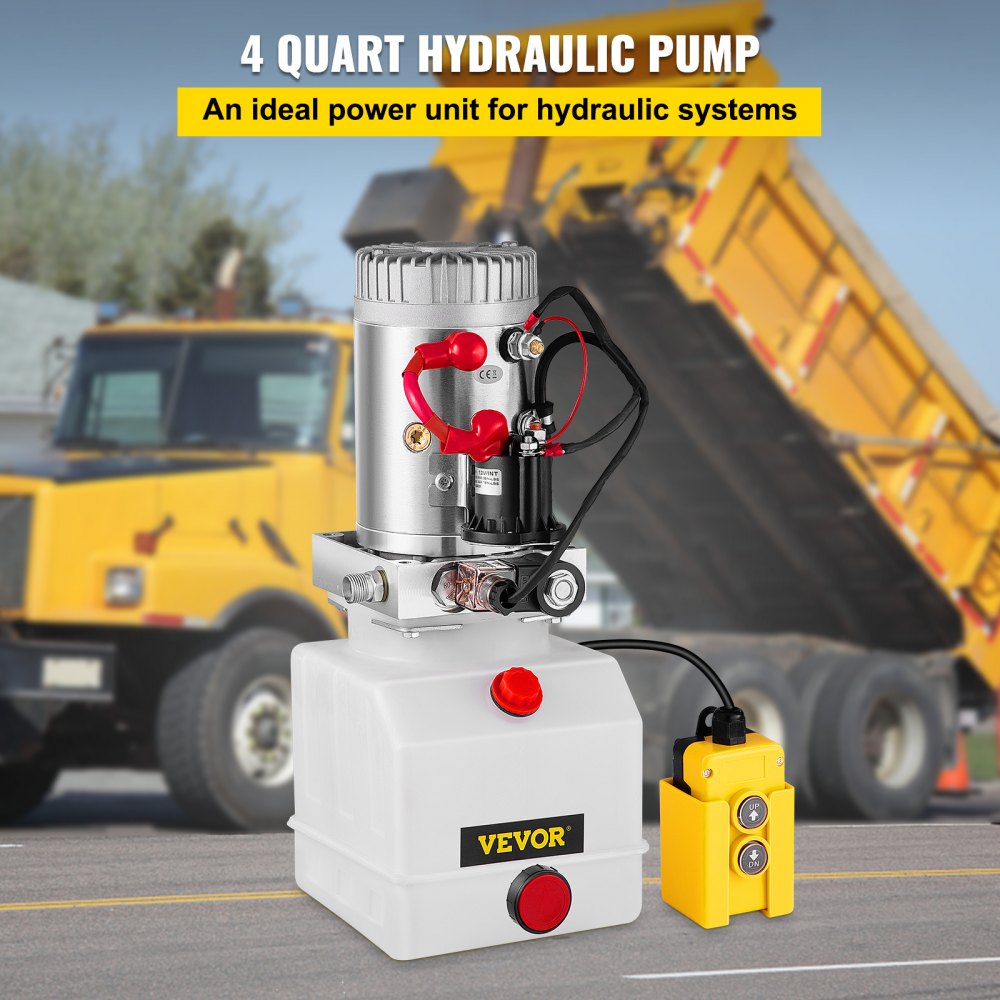

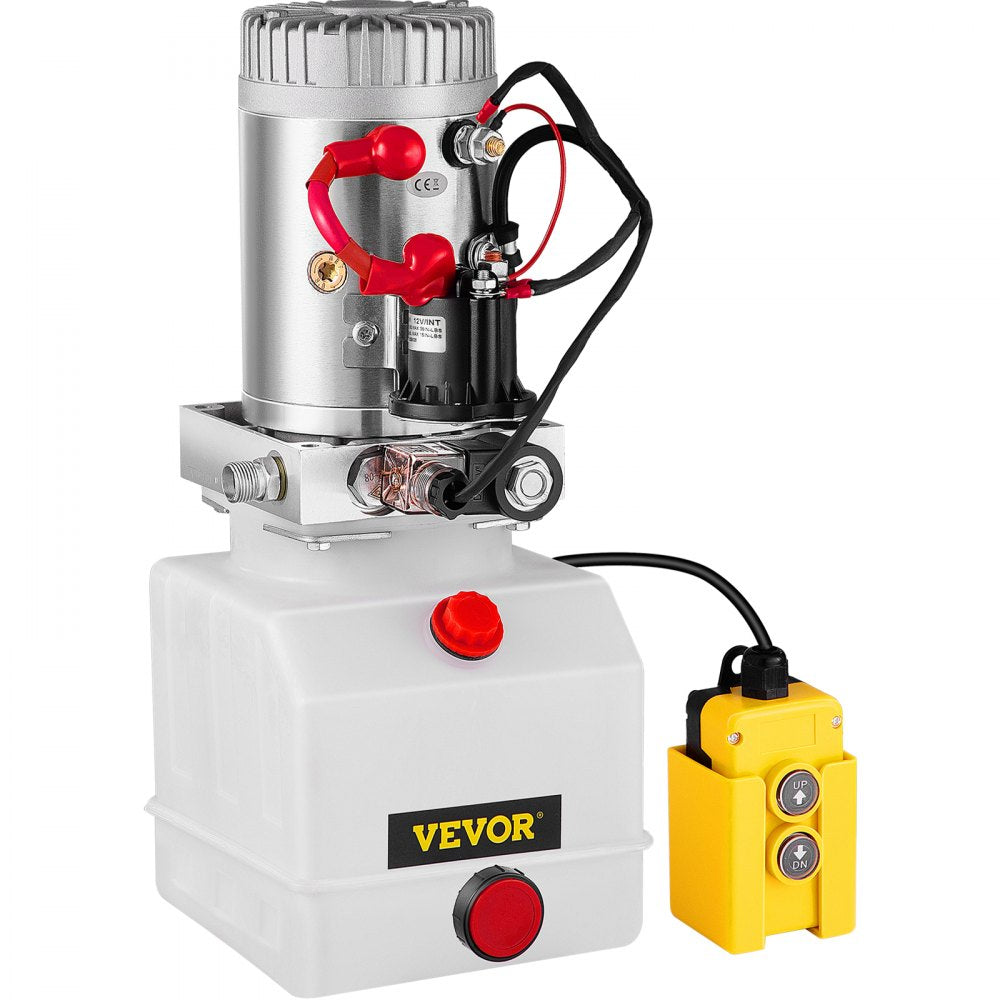

Experience reliable performance with this hydraulic pump, a single-acting power unit that efficiently powers up while allowing gravity to take care of the descent It features a robust 4-quart plastic reservoir paired with a 12V DC motor, delivering impressive power ideal for hydraulic applications such as dump trailers, forklifts, and lifting platforms.
Features and Benefits:
•Designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir.
•Max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI.
•Flow rate is 2 GPM, rated speed: 2850 r/min.

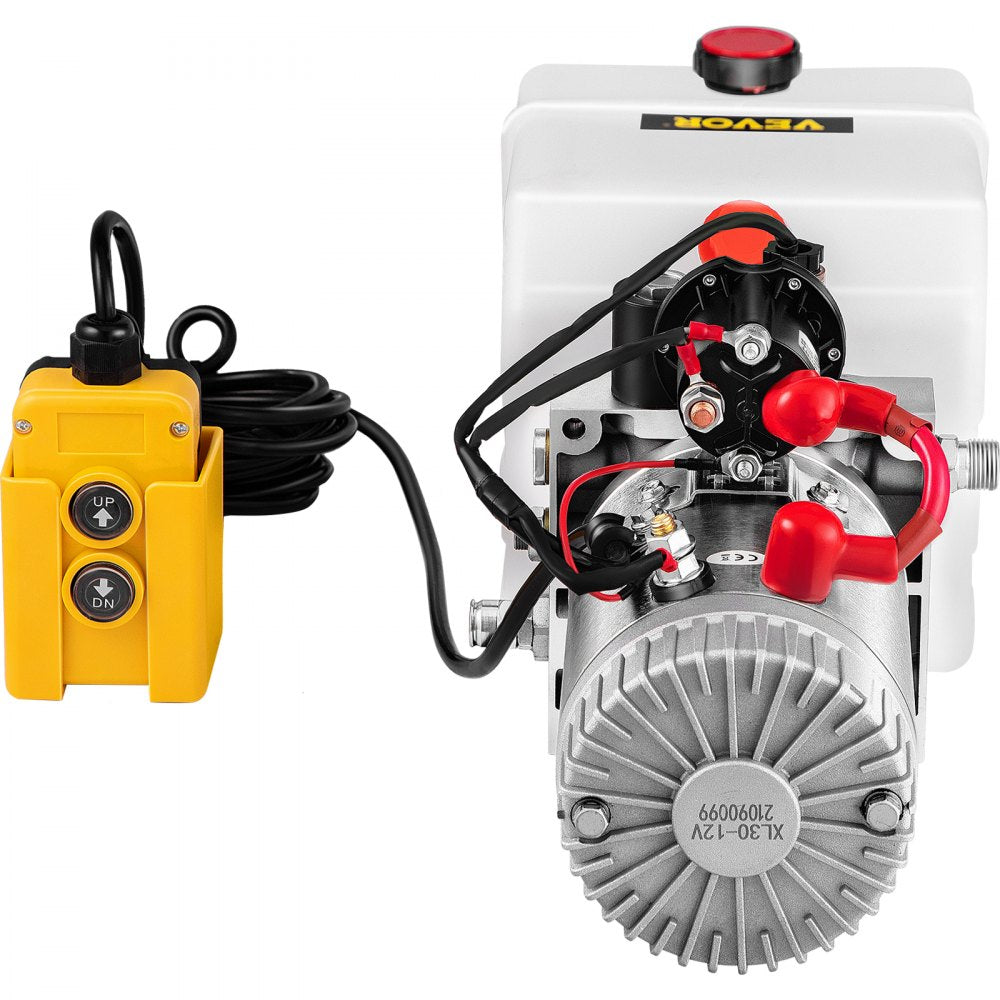

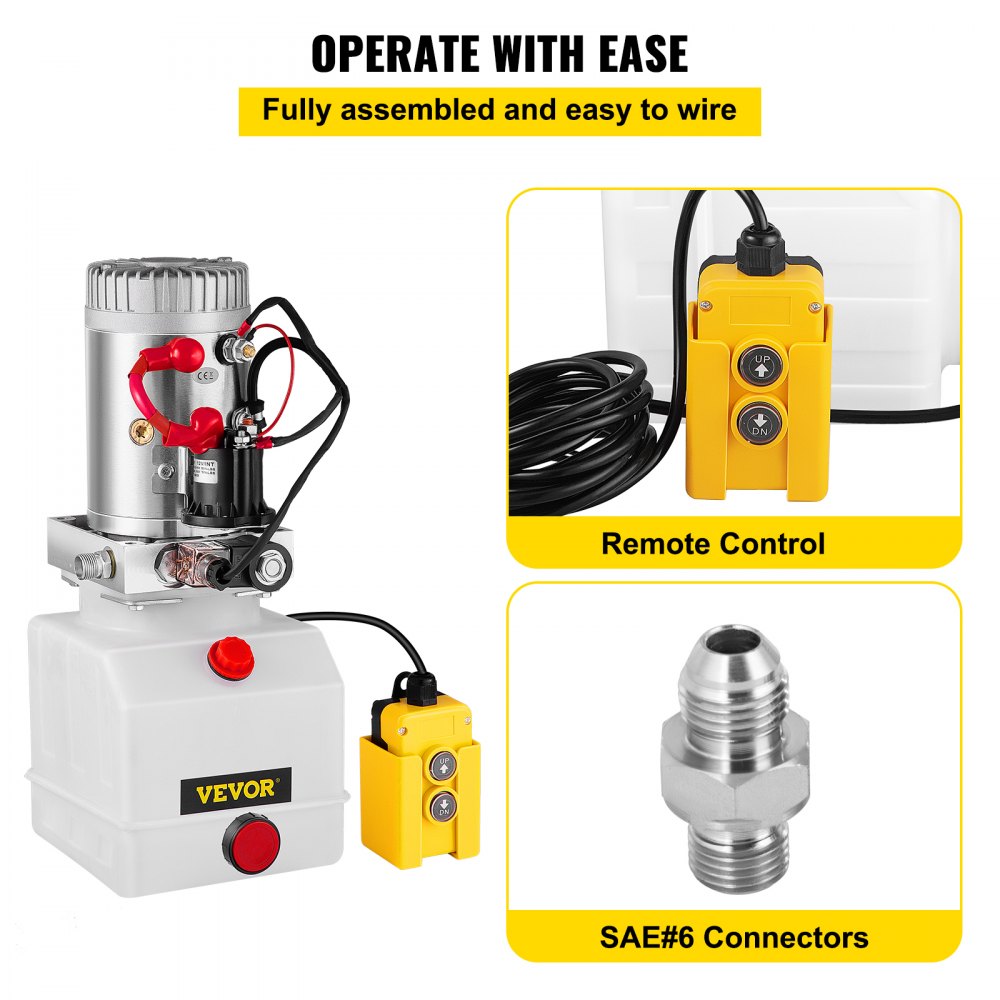

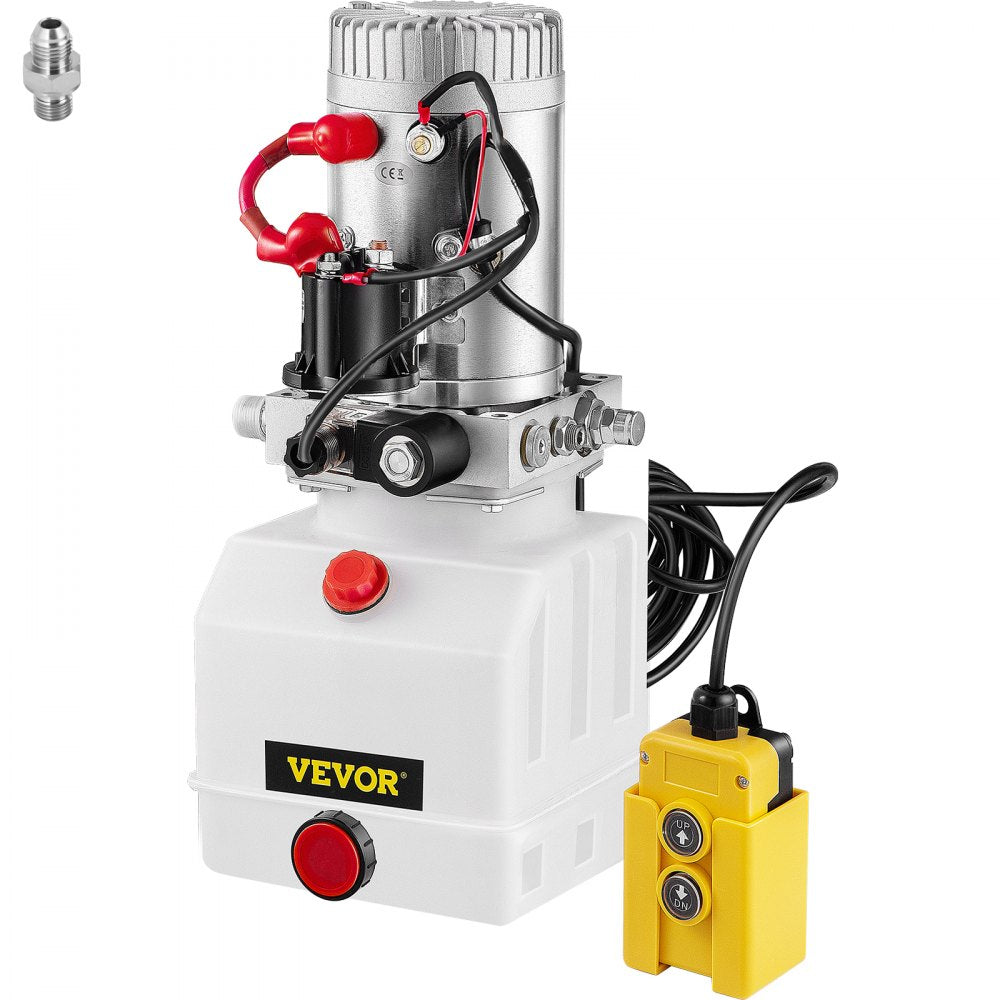

•Includes a hand-held remote control and 1 additional SAE#6 connector for replacement.
•Fully assembled and easy to wire and operate.
•Constructed from durable plastic that is not easy to crack or be damaged.
•Rapid start capability to quickly lift heavy objects.

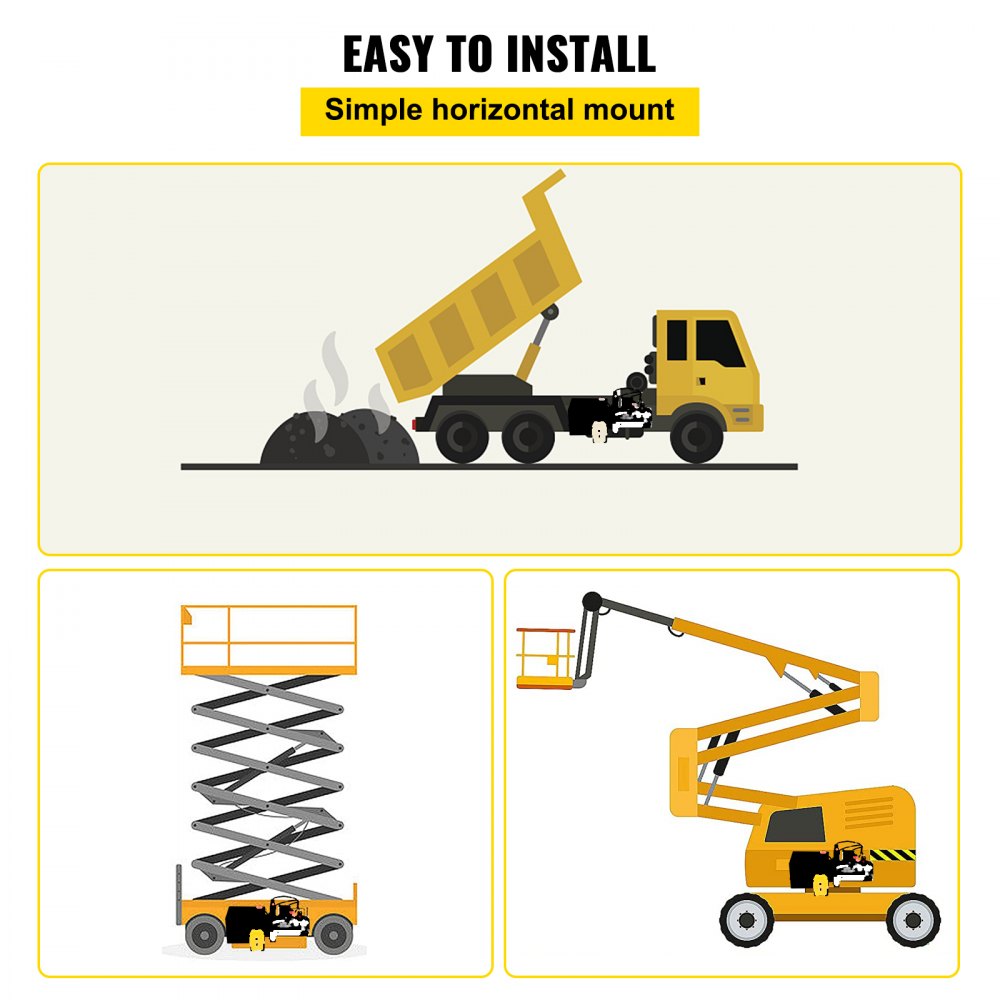

•Simple installation process suitable for various trailer models.

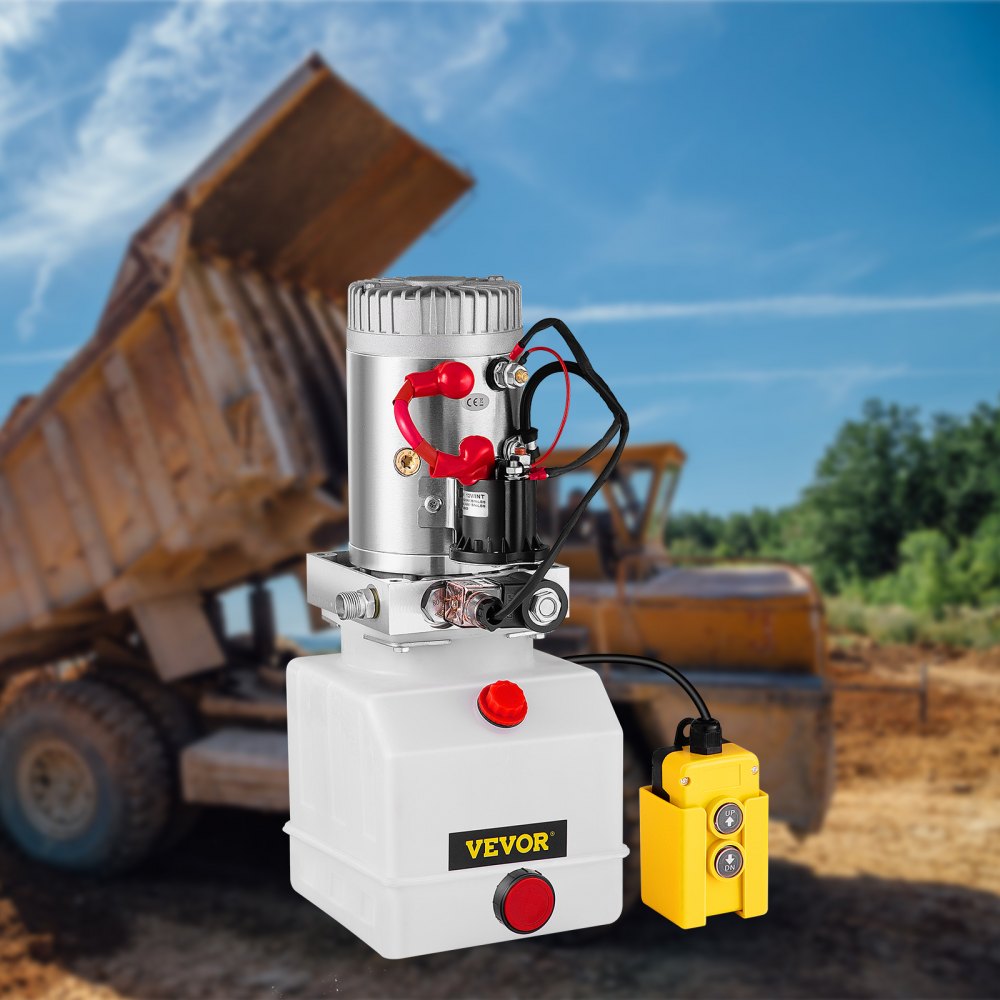

•Dump trailers.
•Forklifts.
•Lifting platforms.
•Truck tailgate lift.
•RV leveling.
•Scissor lifts.
•Lift truck.
•Snowplow.
•Aerial platform.
•Road signs.
•Material handling.
•Wheelchair lifts.

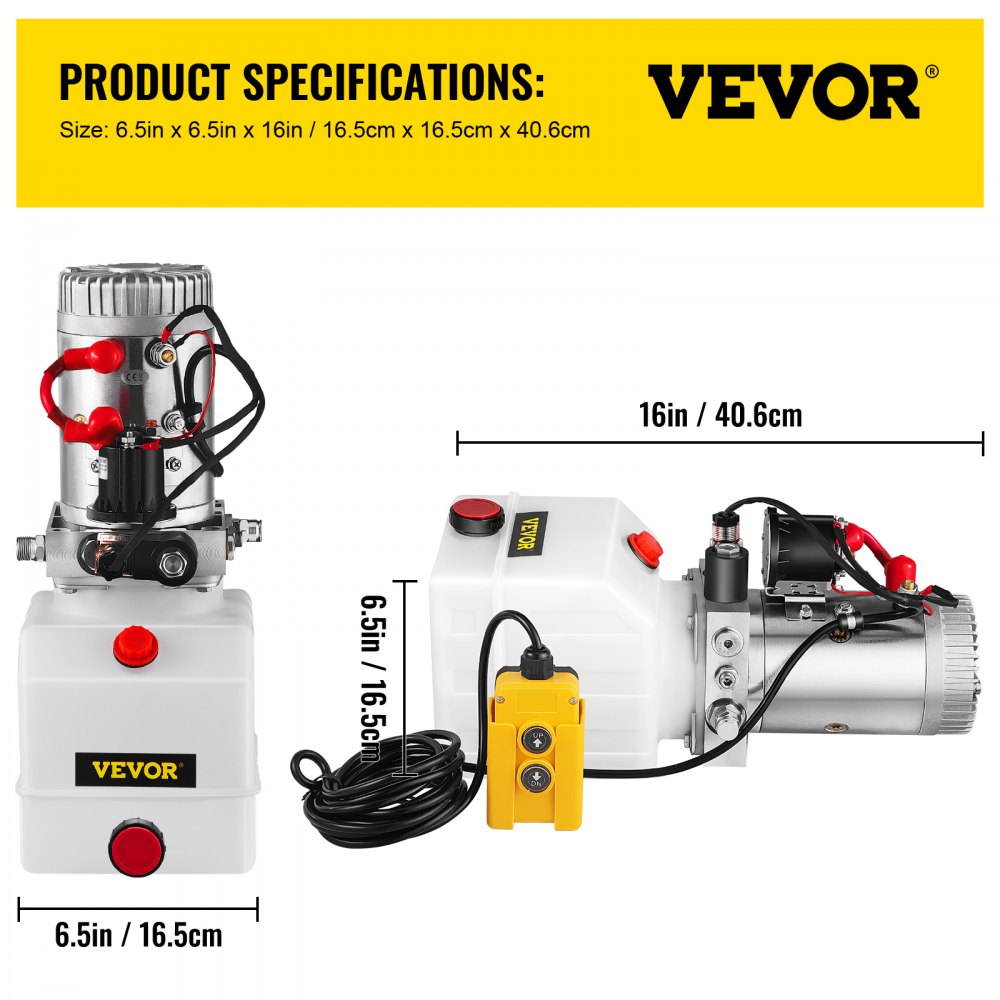

Specifications:
| Material of tank | Plastic |
| Displacement of hydraulic pump | 0.562-4.350GPM |
| Relief valve pressure | 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port) |
| Rated speed | 2850R/MIN |
| Motor power | 1.6-3KW |
| Motor voltage | DC12V |
| Fuel tank | 4L |

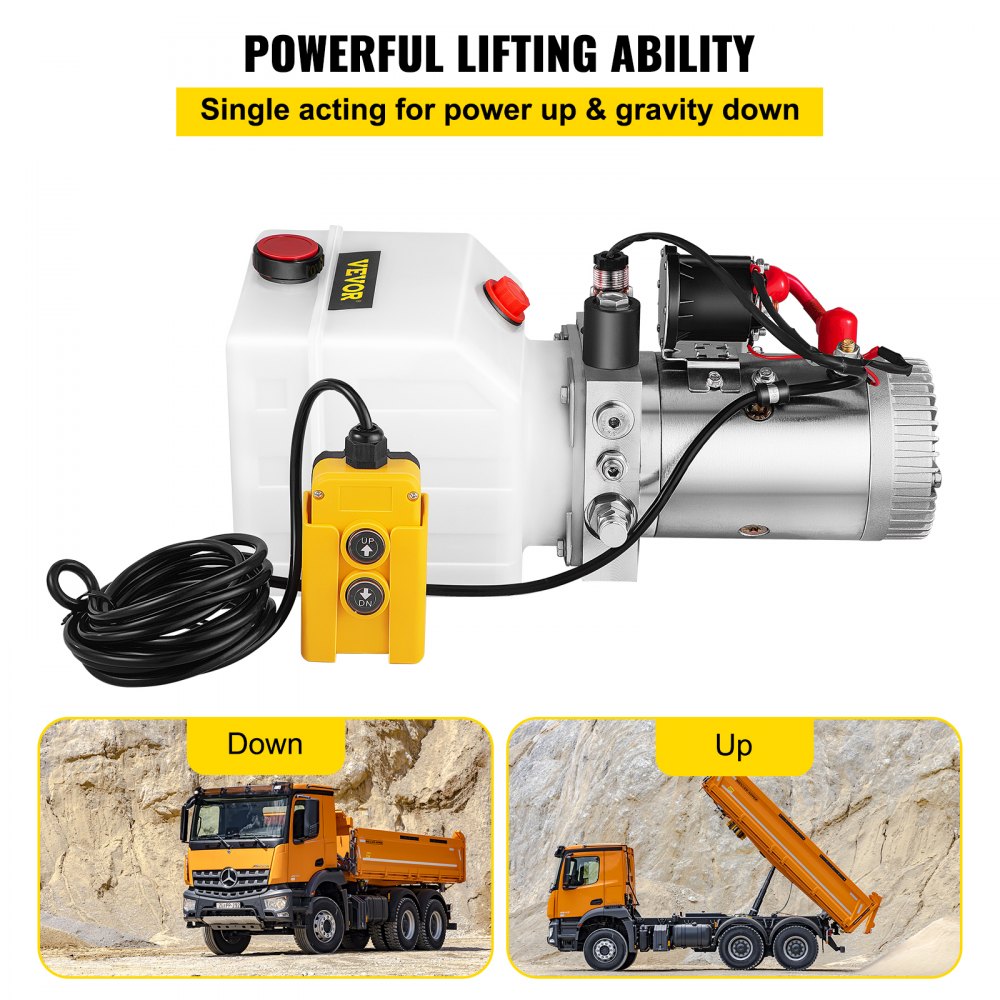

| Single acting Power-Up/Gravity Down | |
| 1500 PS Max Relief Setting on B port | |
| 4 Quart Translucent Reservoir | |
| SAE # 6 Port | Horizontal mount |
| Hand held pendant cable length | about 15 feet(177in / 4.5m) |
