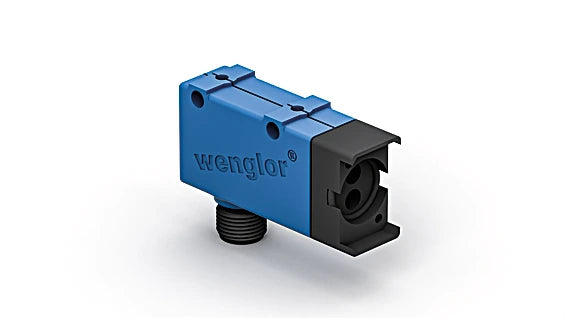

UM55PCT2 - Fiber Optic Sensor for Light Detection and Object Sensing

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced sensors, expertly crafted for compatibility with glass fiber optic cables, while also functioning effectively on their own These innovative devices combine the transmitter and receiver into a single compact unit They work by evaluating the light reflected off an object, activating an output signal whenever an object enters the specified detection range Thanks to their superior ability to detect brighter objects from greater distances, they outperform standard sensors, making them ideal for a variety of applications.

Features and Benefits:

•Switching frequency: 1 kHz.

•Teach-in, external teach-in.

•Range of 500 mm.

•Light source: Infrared Light with a wavelength of 880 nm.

•Service life at 25°C: 100,000 hours.

•Max ambient light: 10,000 Lux.

•Degree of protection: IP67.

•Housing material: Plastic, PBT.

Specifications:
