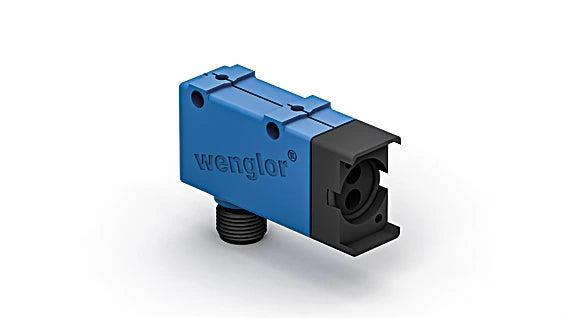

UM55PA2 - Advanced Fiber-Optic Sensor with Transmitter & Receiver Housing

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced sensors tailored for compatibility with glass fiber optic cables, yet versatile enough to function independently Housed in a single unit, these sensors expertly assess the light reflected from nearby objects They activate the output as soon as an object enters the predefined range Notably, bright objects are recognized from further away due to their superior light reflection compared to darker items.

Features and Benefits:

•Switching distance adjuster.

•Switching frequency: 1 kHz.

•Optical Data Range: 500 mm.

•Switching Hysteresis: < 15 %.

•Light Source: Infrared Light.

•Wavelength: 880 nm.

•Service Life (T = +25 °C): 100,000 h.

•Max. Ambient Light: 10,000 Lux.

•Opening Angle: 12 °.

Specifications:
