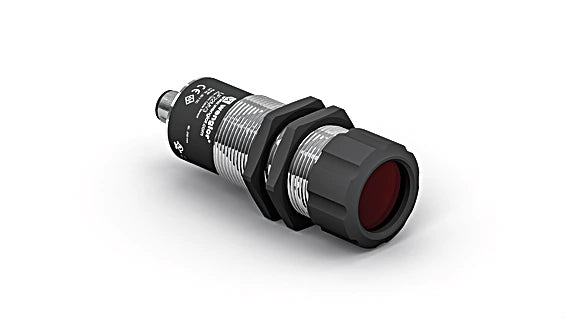

UF22MV3 - Fiber Optic Sensor, 60-240mm Range, Red Light Output

Description:

Experience precision with this advanced sensor, designed specifically for glass fiber optic cable curtains It offers an analog output ranging from 0 to 10 V DC, delivering a linear signal that accurately reflects the glass fiber obstruction, with an adjustable slope for customization The operational range spans 60 to 240 mm, encompassing a measuring range of 180 mm and achieving a resolution of 2% Emitting red light at a wavelength of 660 nm, this sensor boasts an impressive lifespan of 100,000 hours at 25 °C.

It’s capable of handling ambient light levels up to 10,000 Lux, and features a 12-degree opening angle for optimal performance.

Features and Benefits:

•Analog output proportional to obstruction of glass fiber.

•Adjustable slope for customized sensitivity.

•Long service life of 100,000 hours.

•High maximum ambient light resistance of 10,000 Lux.

•IP65 protection class for dust and water resistance.

•Suitable for applications involving glass fiber optic cable curtains.

Specifications:
