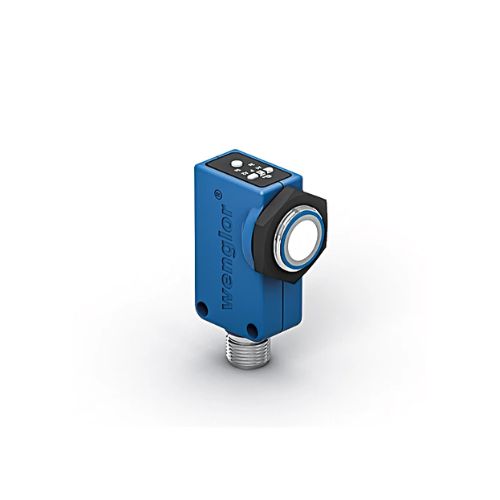

    U1RT002 - Compact Ultrasonic Sensor for Versatile Object Detection

    U1RT002 - Compact Ultrasonic Sensor for Versatile Object Detection

    SKU: U1RT002   Download PDF

    Select a Variant:
    • U1RT002 - Compact Ultrasonic Sensor for Versatile Object Detection
    Qty:
    Now $314.00   Web pricing policy
    BEFORE   $0.00 Now $314.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Experience precise monitoring with these advanced ultrasonic sensors, engineered to assess sound reflections from various objects Ideal for tracking liquid and bulk goods fill levels, these sensors excel in detecting transparent items, regardless of their material, color, or transparency level The readouts can be accessed via IO-Link, allowing for customizable adjustments based on your application needs.

    Space-efficient design makes them easy to install on conveyor systems These versatile sensors can operate in both reflex mode and as ultrasonic through-beam sensors, catering to diverse operational requirements.

    Features and Benefits:

      •2 mutually independent switching outputs.

      •Wireless settings via NFC.

      •IO-Link version 1.1.

      •Reflex and through-beam operation mode are possible.

      •Temperature range: –30…60 °C.

    Specifications:

     Working range, reflex sensor 100 ... 1,200 mm
     Working range, through-beam sensor 100 ... 2,000 mm
     Reproducibility maximum 5 mm
     Linearity Deviation 2 mm
     Resolution 1 mm
     Ultrasonic Frequency 240 kHz
     Opening Angle < 12 °
     Service Life (T = +25 °C) 100,000 h
     Switching Hysteresis 1 %
     Supply Voltage 18 ... 30 V DC
     Current Consumption (Ub = 24 V) < 30 mA
     Switching frequency, reflex sensor 7 Hz
     Switching frequency, through-beam sensor 7 Hz
     Response time, reflex sensor 72 ms
     Response time, through-beam sensor 72 ms
     Temperature Range -30 ... 60 °C
     Number of Switching Outputs 2
     Switching Output Voltage Drop < 2.5 V
     Switching Output / Switching Current 100 mA
     Synchronous Mode up to 40 sensors
     Short Circuit Protection yes
     Reverse Polarity Protection yes
     Overload Protection yes
     Lockable yes
     Interface IO-Link V1.1 Smart Sensor Profile/NFC
     Data Storage yes
     Protection Class III
     Setting Method IO-Link, NFC, Teach input (for switching output), Teach-in (for switching output)
     Housing Material Plastic, PBT, Brass, nickel-plated, Plastic, ABS
     Sensing face Epoxy resin/glass bubble mixture, Plastic, PBT, Silicone
     Degree of Protection IP67, IP68
     Connection M12 × 1; 5-pin
     MTTFd (EN ISO 13849-1) 1,558.4 a
     Output PNP NO yes
     IO-Link yes
     Adjustable parameters Output, NPN, PNP, Error Output Circuit, NC, NC/NO, NO
     Other parameters Adjustable sonic cone, Through-beam mode, Synchronous mode, Teach mode, Filter
