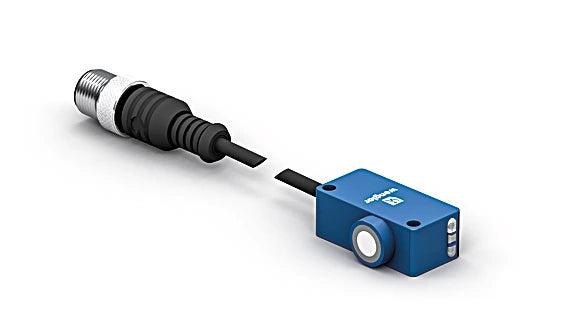

U1KT003 - Versatile Ultrasonic Sensor for Liquid and Object Detection

U1KT003 - Versatile Ultrasonic Sensor for Liquid and Object Detection

SKU: U1KT003 Download PDF

Variant:
  • U1KT003 - Versatile Ultrasonic Sensor for Liquid and Object Detection
Now $335.00
BEFORE   $0.00 Now $335.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your monitoring capabilities with these advanced ultrasonic sensors, designed to assess sound echoes from various objects Their versatility allows them to detect nearly any item, regardless of its material or state Perfect for tracking liquid levels and bulk goods, these sensors can even identify transparent objects With the option to read measurements through IO-Link, you can easily tailor the sensor settings to fit your specific requirements.

They offer flexible operation modes, functioning as either a reflex sensor or an ultrasonic through-beam sensor.

Features and Benefits:

    •2 mutually independent switching outputs.

    •Miniature design.

    •Ready for Industrie 4.0 with IO-Link version 1.1.

    •Reflex and through-beam operation mode are possible.

Specifications:

 Working range, reflex sensor 30 ... 400 mm
 Working range, through-beam sensor 30 ... 800 mm
 Setting Range 30 ... 400 mm
 Reproducibility maximum 4 mm
 Linearity Deviation 4 mm
 Resolution 0.5 mm
 Ultrasonic Frequency 325 kHz
 Opening Angle < 12 °
 Service Life (T = +25 °C) 100,000 h
 Switching Hysteresis 1 %
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching frequency, reflex sensor 30 Hz
 Switching frequency, through-beam sensor 70 Hz
 Response time, reflex sensor 17 ms
 Response time, through-beam sensor 8 ms
 Temperature Range -30 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output/Switching Current 100 mA
 Synchronous Mode up to 40 sensors
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.1
 Data Storage yes
 Protection Class III
 Setting Method IO-Link Teach-in (for switching output)
 Housing Material Plastic, PC; Plastic, PC+ABS
 Sensing face Epoxy resin/glass bubble mixture; Plastic, PC+ABS; Plastic, PU
 Degree of Protection IP68
 Connection M12 × 1; 4-pin
 Cable Length 200 mm
 Cable Jacket Material Plastic, PUR
 MTTFd (EN ISO 13849-1) 1,106.71 a
 Output PNP NO yes
 Programmable error output yes
 IO-Link yes
 Adjustable parameters Output: NPN, PNP; Error Output Circuit: NC, NC/NO, NO; Other parameters: Filter, Adjustable sonic cone, Teach mode, Adjustable sensor mode, Through-beam mode
