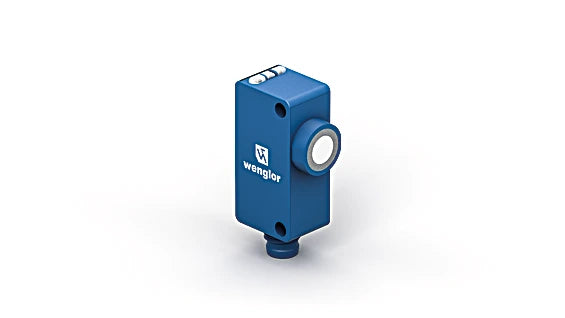

U1KT002 - Ultrasonic Distance Sensor for Liquids & Bulk Goods Detection

U1KT002 - Ultrasonic Distance Sensor for Liquids & Bulk Goods Detection

SKU: U1KT002 Download PDF

Variant:
  • U1KT002 - Ultrasonic Distance Sensor for Liquids & Bulk Goods Detection
Now $295.00
BEFORE   $0.00 Now $295.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the power of precision with these ultrasonic sensors, expertly designed to assess sound reflections from various objects Their versatility allows for the detection of nearly any object, regardless of its material or condition These sensors excel in monitoring levels of liquids and bulk materials, making them ideal for a range of applications, including identifying transparent items With the capability to read values through IO-Link, you can customize the sensor to fit your specific requirements.

Moreover, it operates effectively in both reflex mode and as an ultrasonic through-beam sensor.

Features and Benefits:

    •2 mutually independent switching outputs.

    •Miniature design.

    •Ready for Industrie 4.0 with IO-Link version 1.1.

    •Reflex and through-beam operation mode are possible.

Specifications:

 Working range, reflex sensor 30 ... 400 mm
 Working range, through-beam sensor 30 ... 800 mm
 Setting Range 30 ... 400 mm
 Reproducibility maximum 4 mm
 Linearity Deviation 4 mm
 Resolution 0.5 mm
 Ultrasonic Frequency 325 kHz
 Opening Angle < 12 °
 Service Life (T = +25 °C) 100,000 h
 Switching Hysteresis 1 %
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching frequency, reflex sensor 30 Hz
 Switching frequency, through-beam sensor 70 Hz
 Response time, reflex sensor 17 ms
 Response time, through-beam sensor 8 ms
 Temperature Range -30 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Synchronous Mode up to 40 sensors
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.1
 Data Storage yes
 Protection Class III
 Setting Method Teach-in (for switching output)
 Housing Material Plastic, PC; Plastic, PC+ABS
 Sensing face Plastic, PC+ABS; Plastic, PU; Epoxy resin/glass bubble mixture
 Degree of Protection IP68
 Connection M8 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 1,106.71 a
 Output NPN NO yes
 Programmable error output yes
 Adjustable parameters Output; Error Output; NPN; PNP; Circuit; NC; NC/NO; NO
 Other parameters Filter; Adjustable sonic cone; Adjustable sensor mode; Teach mode; Through-beam mode
