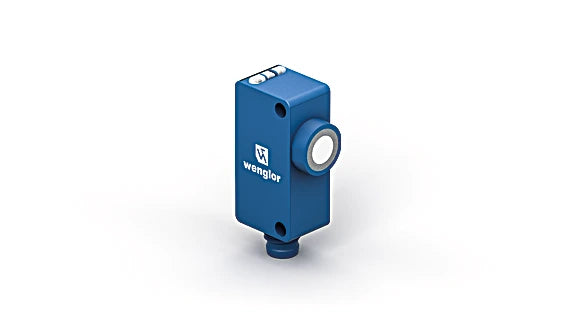

U1KT001 - Ultrasonic Distance Sensor for Liquid and Object Detection

U1KT001 - Ultrasonic Distance Sensor for Liquid and Object Detection

SKU: U1KT001   Download PDF

Select a Variant:
  • U1KT001 - Ultrasonic Distance Sensor for Liquid and Object Detection
Qty:
Now $295.00   Web pricing policy
BEFORE   $0.00 Now $295.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience precision with these advanced ultrasonic sensors, designed to assess sound reflections from various objects Capable of detecting nearly any object, regardless of material or condition, these sensors excel in monitoring fill levels of both liquids and bulk materials, including transparent items The output is easily accessible via IO-Link, allowing for customization based on specific applications.

These versatile sensors operate efficiently in both reflex mode and as ultrasonic through-beam sensors, making them suitable for a variety of environments.

Features and Benefits:

    •2 mutually independent switching outputs.

    •Miniature design.

    •Ready for Industrie 4.0 with IO-Link version 1.1.

    •Reflex and through-beam operation mode are possible.

Specifications:

 Working range, reflex sensor 30 ... 400 mm
 Working range, through-beam sensor 30 ... 800 mm
 Setting Range 30 ... 400 mm
 Reproducibility maximum 4 mm
 Linearity Deviation 4 mm
 Resolution 0.5 mm
 Ultrasonic Frequency 325 kHz
 Opening Angle < 12 °
 Service Life (T = +25 °C) 100,000 h
 Switching Hysteresis 1 %
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching frequency, reflex sensor 30 Hz
 Switching frequency, through-beam sensor 70 Hz
 Response time, reflex sensor 17 ms
 Response time, through-beam sensor 8 ms
 Temperature Range -30 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Synchronous Mode up to 40 sensors
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.1
 Data Storage yes
 Protection Class III
 Setting Method IO-Link
 Teach-in (for switching output)
 Housing Material Plastic, PC+ABS
 Sensing face Epoxy resin/glass bubble mixture
 Degree of Protection IP68
 Connection M8 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 1,106.71 a
 Output PNP NO yes
 Programmable error output yes
 IO-Link yes
 Adjustable parameters Output: NPN, PNP, Error Output Circuit: NC, NC/NO, NO
