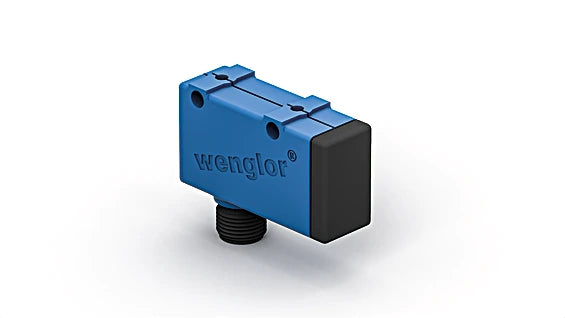

TM55PA2 - Reflex Sensor with Transmitter-Receiver in One Compact Unit

SKU: SKU: TM55PA2 Download PDF

Select a Variant:

TM55PA2 - Reflex Sensor with Transmitter-Receiver in One Compact Unit

SET THE QTY:

Now $169.00 Web pricing policy

~~BEFORE $0.00~~ Now $169.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the innovative design of these sensors, where the transmitter and receiver are seamlessly integrated within a single unit These sensors function by assessing the light that is bounced back from objects, enabling immediate output activation when an object enters the predefined range Notably, brighter objects reflect light more effectively than darker ones, allowing for detection from longer distances.

Features and Benefits:

•Compact housing.

•Switching distance adjuster.

•Large detection range.

Specifications:

Range	500 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Wavelength	850 nm
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	12 °
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 40 mA
Switching Frequency	1 kHz
Response Time	500 µs
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Voltage Drop	< 2.5 V
Switching Output / Switching Current	200 mA
Residual Current Switching Output	< 50 µA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III
Setting Method	Potentiometer
Housing Material	Plastic, PBT
Full Encapsulation	yes
Degree of Protection	IP67
Connection	M12 × 1; 4-pin
MTTFd (EN ISO 13849-1)	2,779.93 a
Output	PNP NC, PNP NO
Adjustable parameters Circuit	NC, NC+NO, NO
