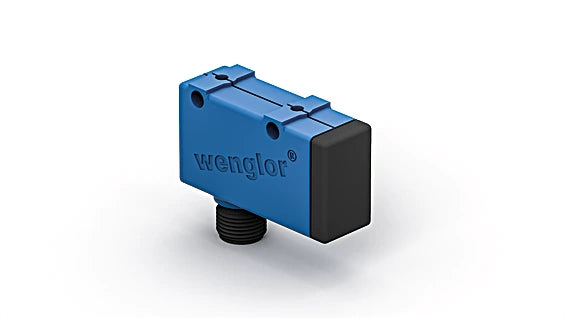

TM22PA2 - Reflex Sensor with Single Housing and Object Detection Functionality

SKU: SKU: TM22PA2 Download PDF

Select a Variant:

TM22PA2 - Reflex Sensor with Single Housing and Object Detection Functionality

SET THE QTY:

Now $169.00 Web pricing policy

~~BEFORE $0.00~~ Now $169.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

The innovative design of these sensors integrates both the transmitter and receiver within a single unit They function by analyzing the light that is sent out and then reflected back from nearby objects The output activates when an object comes within the designated range Notably, bright objects tend to reflect light more effectively than darker ones, which enhances their detection at longer distances.

Features and Benefits:

•Compact housing.

•Adjustable detection range.

Specifications:

Range	200 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	12 °
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 40 mA
Switching Frequency	1,500 Hz
Response Time	330 µs
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Voltage Drop	< 2.5 V
Switching Output PNP	yes
Switching Current	200 mA
Residual Current Switching Output	< 50 µA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III
Setting Method	Potentiometer
Housing Material	Plastic, PBT
Full Encapsulation	yes
Degree of Protection	IP67
Connection	M12 × 1; 4-pin
MTTFd (EN ISO 13849-1)	2,779.93 a
Output PNP NC, PNP NO	yes
Adjustable parameters Circuit	NC
