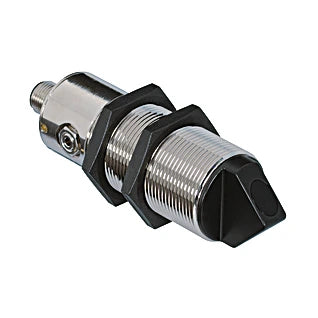

TF88PA3S201 - Reflex Sensor with Single Housing for Object Detection

SKU: SKU: TF88PA3S201

Select a Variant:

TF88PA3S201 - Reflex Sensor with Single Housing for Object Detection

SET THE QTY:

Now $397.00 Web pricing policy

~~BEFORE $0.00~~ Now $397.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Reviews

Product Information

Description:

This advanced sensor integrates both transmitter and receiver within a single unit It operates by analyzing the light that is transmitted and then reflected back from objects in its path The output actuator responds immediately when an object enters the designated detection range Brightly colored objects can be detected from further away due to their superior reflectivity compared to darker surfaces.

Features and Benefits:

•No optical crosstalk.

•For applications in dusty and moist environments.

Specifications:

Range	2,000 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	12 °
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 40 mA
Switching Frequency	150 Hz
Response Time	3,300 µs
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Voltage Drop	< 2.5 V
Switching Output	PNP
Switching Current	200 mA
Residual Current	< 50 µA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III
Setting Method	Potentiometer
Housing Material	Brass, nickel-plated
Full Encapsulation	yes
Degree of Protection	IP65
Connection	M12 × 1; 4-pin
MTTFd (EN ISO 13849-1)	2,774 a
Output	PNP NC, PNP NO
Adjustable parameters Circuit	NC, NC+NO, NO
