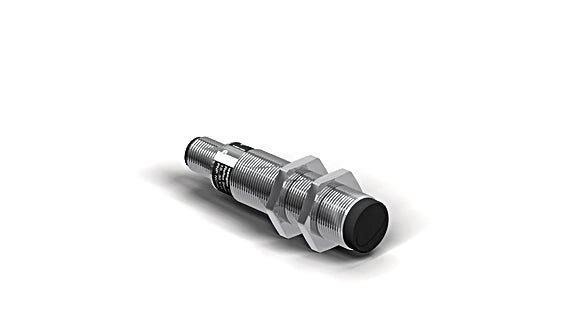

TD11PA3 - Reflex Sensor with Transmitter and Receiver in One Housing

SKU: SKU: TD11PA3 Download PDF

Select a Variant:

TD11PA3 - Reflex Sensor with Transmitter and Receiver in One Housing

SET THE QTY:

Now $142.00 Web pricing policy

~~BEFORE $0.00~~ Now $142.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience precision with this innovative sensor system, integrating both transmitter and receiver within a single unit Designed to detect light reflections from nearby objects, this sensor activates its output when an object enters the defined range The design allows for enhanced recognition of bright objects, as they reflect more light compared to darker surfaces, making it possible to identify them from greater distances.

Features and Benefits:

•Focused optics.

•Low-cost.

•Electrical data supply voltage of 10...30 V DC.

•Short circuit protection.

•Reverse polarity protection.

•Overload protection.

•Service life of 100,000 hours at T = +25 °C.

•Degree of protection IP67.

Specifications:

Range	100 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Max. Ambient Light	10,000 Lux
Opening Angle	12 °
Current Consumption (Ub = 24 V)	< 40 mA
Switching Frequency	1,500 Hz
Response Time	330 µs
Temperature Drift	< 10 %
Temperature Range	-25...60 °C
Switching Output Voltage Drop	< 2.5 V
Switching Current	200 mA
Residual Current Switching Output	< 50 µA
Protection Class	III
Housing Material	Brass, nickel-plated
Full Encapsulation	yes
Weight	37 g
MTTFd (EN ISO 13849-1)	2,264.75 a
Output PNP NC, PNP NO	yes
Adjustable parameters Circuit	NC, NC+NO, NO
