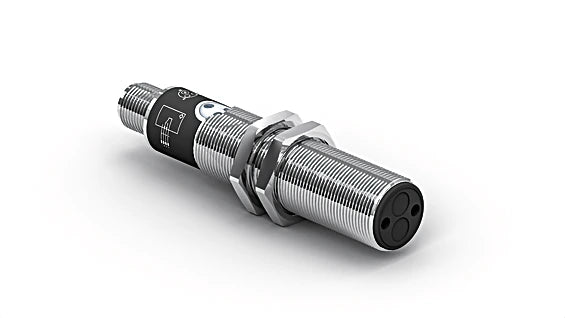

TC66PA3 - Reflex Sensor with Integrated Transmitter and Receiver Housing

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience advanced sensing technology with these innovative sensors that feature both the transmitter and receiver within a single compact unit The sensor analyzes the light that bounces back from nearby objects, activating the output when an object enters a specific range Brightly colored items reflect more light, allowing for better detection from a greater distance compared to darker objects.

Features and Benefits:

•Stainless steel housing.

•Large detection range.

•Optical Data Range of 1,000 mm.

•Switching Hysteresis of < 15 %.

•Infrared Light as Light Source.

•Service Life of 100,000 h at T = +25 °C.

•Max. Ambient Light of 10,000 Lux.

•Opening Angle of 12 °.

•Current Consumption < 40 mA.

•Switching Frequency of 1 kHz.

•Response Time of 500 µs.

•Temperature Drift of < 10 %.

•Degree of Protection IP67.

•Short Circuit Protection.

•Reverse Polarity Protection.

•Overload Protection.

Specifications:
