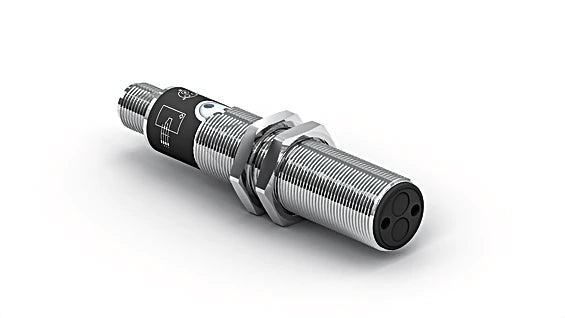

TC22PA3 - Reflex Sensor for Object Detection with Light Evaluation

SKU: SKU: TC22PA3 Download PDF

Select a Variant:

TC22PA3 - Reflex Sensor for Object Detection with Light Evaluation

SET THE QTY:

Now $118.00 Web pricing policy

~~BEFORE $0.00~~ Now $118.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience advanced detection with these innovative sensors, where the transmitter and receiver are housed together for streamlined functionality The sensor works by analyzing the light reflected off objects within its range, triggering an output as soon as an object is detected Notably, it can differentiate between bright and dark surfaces, with lighter objects being visible from further away.

Features and Benefits:

•Stainless steel housing.

•Adjustable detection range.

•Service Life (T = +25 °C) of 100,000 hours.

•Max. Ambient Light of 10,000 Lux.

•Full Encapsulation.

•Short Circuit Protection.

•Reverse Polarity Protection.

•Overload Protection.

Specifications:

Range	200 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 40 mA
Switching Frequency	1,500 Hz
Response Time	330 µs
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Switching Output Voltage Drop	< 2.5 V
Switching Output / Switching Current	200 mA
Residual Current Switching Output	< 50 µA
Protection Class	III
Degree of Protection	IP67
Housing Material	Stainless steel, V2A (1.4305 / 303)
MTTFd (EN ISO 13849-1)	2,227.16 a
Output PNP NC, PNP NO	yes
Setting Method	Potentiometer
Connection	M12 × 1; 4-pin
