Home / SENSORS / SEMG641 - Compact Safety Light Curtain with Integrated Features
1 1

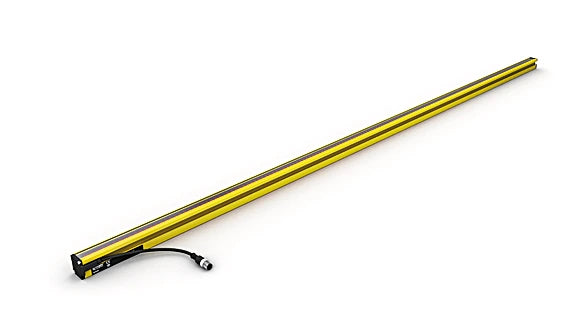

SEMG641 - Compact Safety Light Curtain with Integrated Features

SEMG641 - Compact Safety Light Curtain with Integrated Features

SKU: SEMG641 Download PDF

Variant:
  • SEMG641 - Compact Safety Light Curtain with Integrated Features
Now $3,185.00
BEFORE   $0.00 Now $3,185.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced safety light curtains, designed to effortlessly handle essential tasks These curtains include standard features such as safety operating mode, restart inhibit, and contactor monitoring, all of which are simple to configure With an edge-to-edge safety field that fits seamlessly within its housing, securing your space is a breeze—even in tight installation environments Perfect for enhancing safety without compromising convenience.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Optical Range 0.25 ... 6 m
 Housing Length (L) 1,660 mm
 Safety Field Height (SFH) 1,661 mm
 Resolution 14 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) 190 mA
 Response Time 23.1 ms
 Temperature Range -5 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 8-pin
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Finger Protection yes
 Scope of functions Basic function
