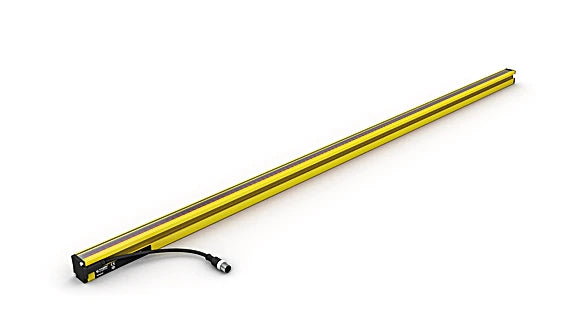

SEMG638 - Safety Light Curtain with Easy Configuration and Compact Design

SEMG638 - Safety Light Curtain with Easy Configuration and Compact Design

SKU: SKU: SEMG638 Download PDF

Variant:
  • SEMG638 - Safety Light Curtain with Easy Configuration and Compact Design
Regular price Now $2,471.00
Regular price BEFORE   $0.00 Sale price Now $2,471.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable safety with these light curtains, expertly designed to handle fundamental tasks effortlessly Each unit comes with essential features like safety operating mode, restart inhibit, and contactor monitoring as standard, all of which can be easily set to your preferences With a sleek, unobtrusive design, the safety field seamlessly extends to the edges of the housing, making it simple to implement even in tight spaces.

Perfect for enhancing safety in various environments.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Optical Data Range 0.25 ... 6 m
 Housing Length (L) 1,210 mm
 Safety Field Height (SFH) 1,211 mm
 Resolution 14 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) 160 mA
 Response Time 18.2 ms
 Temperature Range -5 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65 IP67
 Connection M12 × 1; 8-pin
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Finger Protection yes
 Scope of functions Basic function
