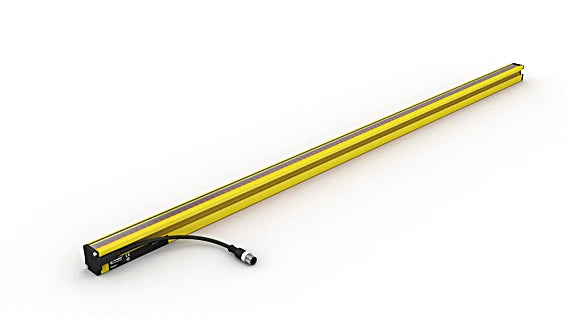

SEMG637 - Compact Safety Light Curtain with Integrated Functions

SEMG637 - Compact Safety Light Curtain with Integrated Functions

SKU: SEMG637   Download PDF

Select a Variant:
  • SEMG637 - Compact Safety Light Curtain with Integrated Functions
Qty:
Now $2,233.00   Web pricing policy
BEFORE   $0.00 Now $2,233.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience reliable safety with these light curtains, expertly designed to handle all essential functions effortlessly Equipped as standard with safety operating mode, restart inhibit, and contactor monitoring, these curtains offer easy configuration Their unique design extends the safety field right to the housing's edge, allowing for effortless installation, even in tight spaces.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Range: 0.25 ... 6 m
 Housing Length (L): 1,060 mm
 Safety Field Height (SFH): 1,061 mm
 Resolution: 14 mm
 Light Source: Red Light
 Max. Ambient Light: 10,000 Lux
 Opening Angle: ± 2.5 °
 Sensor Type: Receiver
 Supply Voltage: 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V): 150 mA
 Response Time: 16.5 ms
 Temperature Range: -25 ... 55 °C
 Storage temperature: -25 ... 60 °C
 Number of safety outputs (OSSDs): 2
 Safety Output Voltage Drop: < 2.3 V
 PNP Safety Output / Switching Current: 300 mA
 Number of Signal Outputs: 1
 Signal Output Voltage Drop: < 2.5 V
 Signal Output / Switching Current: 100 mA
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Housing Material: Aluminum, powder-coated
 Optic Cover: Plastic, PC
 Degree of Protection: IP65, IP67
 Connection: M12 × 1; 8-pin
 Cable Length: 300 mm
 ESPE Type (EN 61496): 4
 Performance Level (EN ISO 13849-1): Cat. 4 PL e
 PFHD: 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1): 20 a
 Safety Integrity Level (EN 61508): SIL3
 Safety Integrity Level (EN 62061): SILCL3
 Function Finger Protection: yes
 Scope of functions: Basic function
