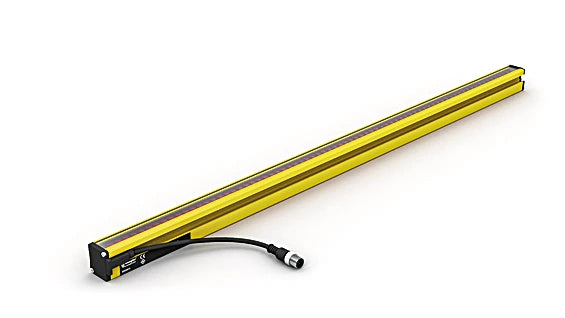

SEMG635 - Compact Safety Light Curtain with Easy Configuration Features

SEMG635 - Compact Safety Light Curtain with Easy Configuration Features

SKU: SEMG635   Download PDF

Select a Variant:
  • SEMG635 - Compact Safety Light Curtain with Easy Configuration Features
Qty:
Now $1,825.00   Web pricing policy
BEFORE   $0.00 Now $1,825.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Ensure maximum safety with these light curtains, designed to effortlessly handle fundamental safety tasks Equipped with standard features like safety operating mode, restart inhibit, and contactor monitoring, these curtains can be easily customized to fit your needs Their smooth design allows the safety field to reach the end of the housing seamlessly, making them ideal for installations in tight spaces.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Range 0.25 ... 6 m
 Housing Length (L) 760 mm
 Safety Field Height (SFH) 761 mm
 Resolution 14 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) 130 mA
 Response Time 13.2 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 8-pin
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Finger Protection yes
 Scope of functions Basic function
