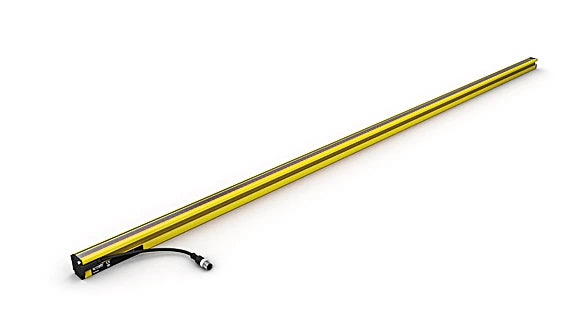

SEMG621 - Compact Safety Light Curtain with Integrated Functions

SEMG621 - Compact Safety Light Curtain with Integrated Functions

SKU: SEMG621 Download PDF

Variant:
  • SEMG621 - Compact Safety Light Curtain with Integrated Functions
Now $2,487.00
BEFORE   $0.00 Now $2,487.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure safety with these efficient light curtains, designed to handle essential tasks effortlessly They come with built-in features such as a safety operating mode, restart inhibit, and contactor monitoring, all of which are easily configurable The design allows the safety field to seamlessly extend to the edge of the housing, making it suitable for installation in tight spaces without any protrusions.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Range 0.25 ... 14 m
 Housing Length (L) 1,662 mm
 Safety Field Height (SFH) 1,687 mm
 Resolution 30 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) 135 mA
 Response Time 14.1 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 8-pin
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Hand Protection yes
 Scope of functions Basic function
