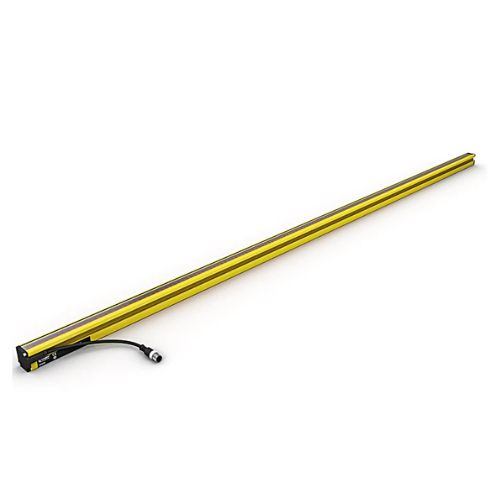

    SEMG620 Safety Light Curtain - Compact Design with Standard Safety Functions

    SEMG620 Safety Light Curtain - Compact Design with Standard Safety Functions

    SKU: SEMG620   Download PDF

    Select a Variant:
    • SEMG620 Safety Light Curtain - Compact Design with Standard Safety Functions
    Qty:
    Now $2,307.00   Web pricing policy
    BEFORE   $0.00 Now $2,307.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Ensure safety with these high-performance light curtains, crafted to handle essential tasks effortlessly Featuring standard functionalities such as safety operating modes, restart inhibition, and contactor monitoring, these curtains are easy to customize Their design eliminates protrusions, allowing the safety field to extend fully to the housing's edge, making them ideal for installations in tight spaces.

    Features and Benefits:

      •Easy configuration via wiring.

      •Slim design for easy integration.

      •Quick alignment through visible red light.

      •Protection field over the entire length of the housing for an installation without protrusion.

    Specifications:

     Range 0.25 ... 14 m
     Housing Length (L) 1,512 mm
     Safety Field Height (SFH) 1,527 mm
     Resolution 30 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) 130 mA
     Response Time 13.2 ms
     Temperature Range -25 ... 55 °C
     Storage temperature -25 ... 60 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop < 2.3 V
     PNP Safety Output / Switching Current 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current 100 mA
     Short Circuit Protection yes
     Reverse Polarity Protection yes
     Overload Protection yes
     Protection Class III
     Housing Material Aluminum, powder-coated
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     Cable Length 300 mm
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     PFHD 1,60 × E-8 1/h
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
     Function Hand Protection yes
     Scope of functions Basic function
