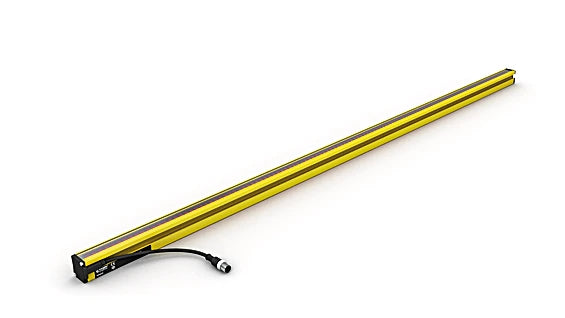

SEMG618 - Compact Safety Light Curtain with Integrated Functions

SEMG618 - Compact Safety Light Curtain with Integrated Functions

SKU: SEMG618   Download PDF

Select a Variant:
  • SEMG618 - Compact Safety Light Curtain with Integrated Functions
Qty:
Now $1,946.00   Web pricing policy
BEFORE   $0.00 Now $1,946.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience safety and convenience with these advanced light curtains, specially engineered to handle essential tasks effortlessly With standard features like safety operating mode, restart restriction, and contactor monitoring, setup is simple and straightforward The design ensures that the safety field extends right to the housing's edge without any protruding elements, allowing for easy installation even in tight spaces.

Perfect for various applications where safety is a priority.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Range 0.25 ... 14 m
 Housing Length (L) 1,212 mm
 Safety Field Height (SFH) 1,227 mm
 Resolution 30 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) 120 mA
 Response Time 11.6 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 8-pin
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Hand Protection yes
 Scope of functions Basic function
