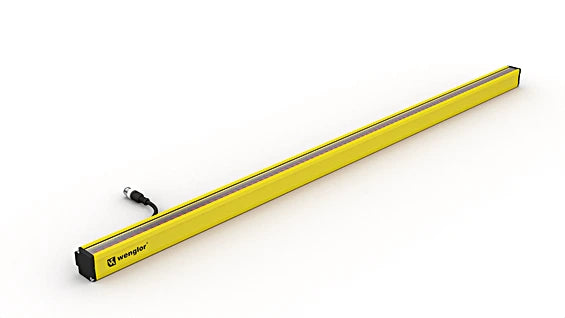

SEMG536 - Compact Safety Light Curtain for Easy Configuration and Monitoring

SEMG536 - Compact Safety Light Curtain for Easy Configuration and Monitoring

SKU: SKU: SEMG536 Download PDF

Variant:
  • SEMG536 - Compact Safety Light Curtain for Easy Configuration and Monitoring
Regular price Now $1,694.00
Regular price BEFORE   $0.00 Sale price Now $1,694.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our versatile safety light curtains, expertly crafted to manage all essential tasks effortlessly Equipped with standard features such as safety operating mode, restart inhibit, and contactor monitoring, these curtains offer easy configuration to meet your needs With a streamlined design that ensures the safety field extends right to the edge of the housing, they are perfect for installation in tight spaces.

Secure your environment effectively with this practical solution.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Range 0.25 ... 6 m
 Housing Length (L) 910 mm
 Safety Field Height (SFH) 911 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Opening Angle ± 2.5 °
 Sensor Type Emitter
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) 75 mA
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 5-pin
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Finger Protection
 Scope of functions Basic function
