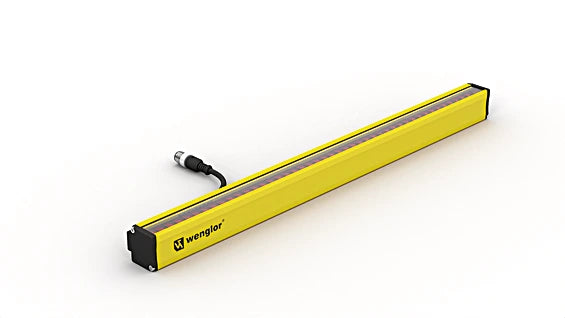

SEMG531 - Compact Safety Light Curtain with Integrated Monitoring Features

SEMG531 - Compact Safety Light Curtain with Integrated Monitoring Features

SKU: SKU: SEMG531 Download PDF

Variant:
  • SEMG531 - Compact Safety Light Curtain with Integrated Monitoring Features
Regular price Now $803.00
Regular price BEFORE   $0.00 Sale price Now $803.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure efficient workplace safety with these versatile light curtains Equipped with essential features such as safety operating mode, restart inhibit, and contactor monitoring, these curtains can be effortlessly customized to suit your needs Their streamlined design ensures that the safety field extends fully to the edges of the housing, making them perfect for tight spaces during installation.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Optical Range 0.25 ... 6 m
 Housing Length (L) 249 mm
 Safety Field Height (SFH) 250 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Opening Angle ± 2.5 °
 Sensor Type Emitter
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) 75 mA
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 5-pin
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Finger Protection yes
 Scope of functions Basic function
