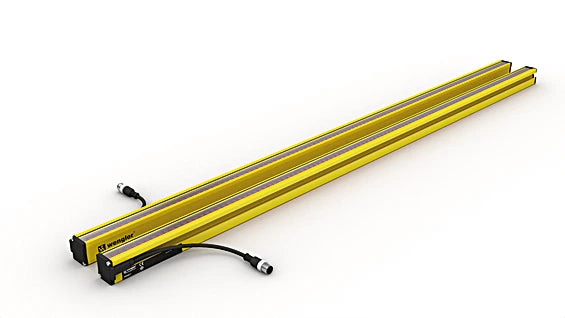

SEMG437 - Compact Safety Light Curtain Set for Efficient Finger Protection

SEMG437 - Compact Safety Light Curtain Set for Efficient Finger Protection

SKU: SEMG437   Download PDF

Select a Variant:
  • SEMG437 - Compact Safety Light Curtain Set for Efficient Finger Protection
Qty:
Now $4,059.00   Web pricing policy
BEFORE   $0.00 Now $4,059.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Ensure your workspace is safe with these efficient safety light curtains, designed to manage essential tasks with ease Featuring standard protection modes like basic function protection, restart inhibit, and protection monitoring, these curtains can be effortlessly configured to meet your needs Their protective field extends fully to the edge of the housing without protruding, allowing for reliable safety even in tight spaces.

Included with your purchase is an adequate mounting angle ZEMX001 for straightforward installation.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Range 0.25 ... 6 m
 Housing Length (L) 1,060 mm
 Safety Field Height (SFH) 1,061 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 16.5 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Safety Category (EN ISO 13849-1) 4
 Performance Level (EN ISO 13849-1) PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEMX001 mounting
 Emitter SEMG537
 Receiver SEMG637
 Function Finger Protection yes
 Scope of functions Basic function
