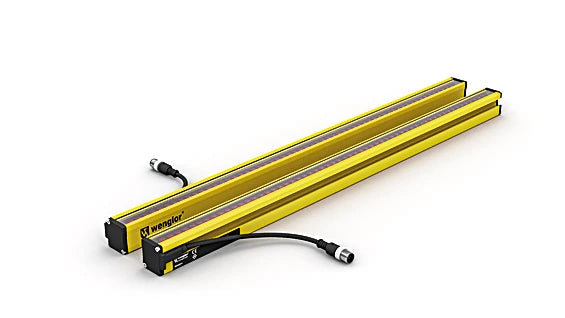

SEMG434 - Compact Safety Light Curtain with Basic Functions & Standard Features

SEMG434 - Compact Safety Light Curtain with Basic Functions & Standard Features

SKU: SEMG434   Download PDF

Select a Variant:
  • SEMG434 - Compact Safety Light Curtain with Basic Functions & Standard Features
Qty:
Now $2,866.00   Web pricing policy
BEFORE   $0.00 Now $2,866.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience peace of mind with these reliable safety light curtains, expertly designed to handle fundamental tasks with ease Equipped with essential features such as basic function protection mode, restart inhibit, and monitoring of protective status, these curtains can be effortlessly configured to meet your needs Their protective field reaches the end of the housing, making them ideal for tight spaces without any protrusions.

Additionally, the necessary mounting angle ZEMX001 is included in the package for straightforward installation.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

Specifications:

 Range: 0.25 ... 6 m
 Housing Length (L): 609 mm
 Safety Field Height (SFH): 610 mm
 Resolution: 14 mm
 Light Source: Red Light
 Wavelength: 630 nm
 Max. Ambient Light: 10,000 Lux
 Opening Angle: ± 2.5 °
 Sensor Type: Set
 Supply Voltage: 19.2 ... 28.8 V DC
 Response Time: 11.6 ms
 Temperature Range: -25 ... 55 °C
 Storage temperature: -25 ... 60 °C
 Number of safety outputs (OSSDs): 2
 Safety Output Voltage Drop: < 2.3 V
 PNP Safety Output / Switching Current: 300 mA
 Number of Signal Outputs: 1
 Signal Output Voltage Drop: < 2.5 V
 Signal Output / Switching Current: 100 mA
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Housing Material: Aluminum, powder-coated
 Optic Cover: Plastic, PC
 Degree of Protection: IP65, IP67
 Connection: M12 × 1
 Cable Length: 300 mm
 Safety-relevant Data:
 ESPE Type (EN 61496): 4
 Safety Category (EN ISO 13849-1): 4
 Performance Level (EN ISO 13849-1): PL e
 PFHD: 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1): 20 a
 Safety Integrity Level (EN 61508): SIL3
 Safety Integrity Level (EN 62061): SILCL3
 General Data: Scope of delivery: ZEMX001 mounting, Scope of delivery (Emitter; Receiver): SEMG534; SEMG634, Function Finger Protection: yes, Scope of functions: Basic function
 Standards and certificates:
 Connection Diagram:
 Ctrl. Panel:
 Dimensioned Picture:
