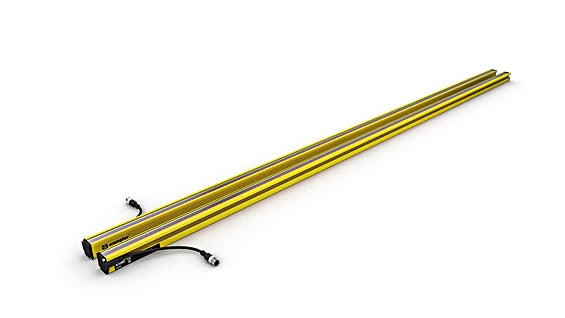

SEMG422 - Safety Light Curtain Set for Efficient Hand Protection

SEMG422 - Safety Light Curtain Set for Efficient Hand Protection

SKU: SEMG422   Download PDF

Select a Variant:
  • SEMG422 - Safety Light Curtain Set for Efficient Hand Protection
Qty:
Now $4,849.00   Web pricing policy
BEFORE   $0.00 Now $4,849.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing an effective solution for safety needs: these light curtains are designed to tackle essential tasks with confidence They come equipped with standard features such as basic function protection mode, restart inhibit, and protection monitoring, all of which can be configured with ease Ideal for tight spaces, the protective field extends right to the end of the housing without any overhang, ensuring reliable safety even in compact installations.

Plus, an appropriate mounting angle, ZEMX001, is included for convenience.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

    •Hand Protection.

Specifications:

 Range 0.25 ... 14 m
 Housing Length (L) 1,812 mm
 Safety Field Height (SFH) 1,827 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 14.9 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65 IP67
 Connection M12 × 1
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Safety Category (EN ISO 13849-1) 4
 Performance Level (EN ISO 13849-1) PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEMX001 mounting
 Scope of delivery (Emitter; Receiver) SEMG522; SEMG622
 Function Hand Protection yes
 Scope of functions Basic function
