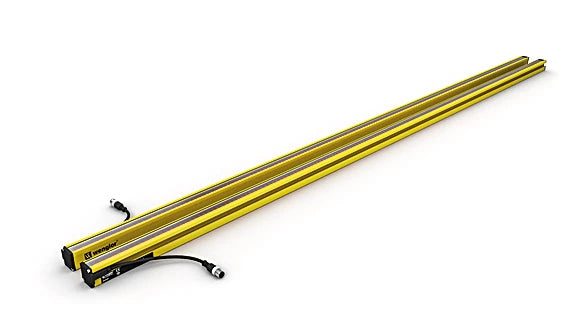

SEMG421 - Compact Safety Light Curtain Set with Easy Configuration

SKU: SKU: SEMG421 Download PDF

Variant:

SEMG421 - Compact Safety Light Curtain Set with Easy Configuration

Now $45.20

~~BEFORE $0.00~~ Now $45.20

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our versatile safety light curtains, expertly designed to tackle fundamental tasks with ease With standard features such as basic function protection mode, restart inhibit, and protection monitoring, these curtains can be conveniently configured to suit your specific needs Their protective field extends seamlessly to the edge of the housing, ensuring reliable coverage even in tight installation spaces.

Included in the package is the appropriate mounting angle ZEMX001 for effortless setup.

Features and Benefits:

•Easy configuration via wiring.

•Slim design for easy integration.

•Quick alignment through visible red light.

•Protection field over the entire length of the housing for an installation without protrusion.

•Protection for hand area in machinery and automation environments.

Specifications:

Range	0.25 ... 14 m
Housing Length (L)	1,662 mm
Safety Field Height (SFH)	1,687 mm
Resolution	30 mm
Light Source	Red Light
Wavelength	630 nm
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Set
Supply Voltage	19.2 ... 28.8 V DC
Response Time	14.1 ms
Temperature Range	-25 ... 55 °C
Storage temperature	-25 ... 60 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	< 2.3 V
PNP Safety Output / Switching Current	300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	100 mA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III
Housing Material	Aluminum, powder-coated
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Connection	M12 × 1
Cable Length	300 mm
Safety-relevant Data	{'ESPE Type (EN 61496)': '4', 'Safety Category (EN ISO 13849-1)': '4', 'Performance Level (EN ISO 13849-1)': 'PL e', 'PFHD': '1,60 × E-8 1/h', 'Mission Time TM (EN ISO 13849-1)': '20 a', 'Safety Integrity Level (EN 61508)': 'SIL3', 'Safety Integrity Level (EN 62061)': 'SILCL3'}
Scope of delivery	ZEMX001 mounting
Function Hand Protection	yes
Scope of functions	Basic function
