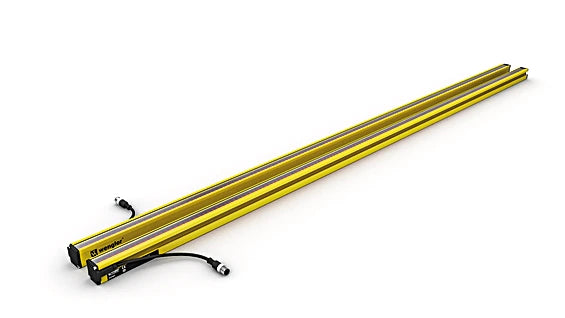

SEMG420 - Compact Safety Light Curtain Set with Standard Protection Features

SEMG420 - Compact Safety Light Curtain Set with Standard Protection Features

SKU: SEMG420   Download PDF

Select a Variant:
  • SEMG420 - Compact Safety Light Curtain Set with Standard Protection Features
Qty:
Now $4,192.00   Web pricing policy
BEFORE   $0.00 Now $4,192.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the ultimate solution for safety applications with these reliable light curtains Engineered to efficiently handle all essential tasks, they feature easy-to-configure standard functions including basic protection mode, restart inhibition, and protective monitoring The protective field extends seamlessly to the edge of the housing, ensuring effective coverage even in tight spaces Additionally, the package comes with an appropriate mounting angle (ZEMX001) for straightforward installation.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

    •Hand Protection.

Specifications:

 Range: 0.25 ... 14 m
 Housing Length (L): 1,512 mm
 Safety Field Height (SFH): 1,527 mm
 Resolution: 30 mm
 Light Source: Red Light
 Wavelength: 630 nm
 Max. Ambient Light: 10,000 Lux
 Opening Angle: ± 2.5 °
 Sensor Type: Set
 Supply Voltage: 19.2 ... 28.8 V DC
 Response Time: 13.2 ms
 Temperature Range: -25 ... 55 °C
 Storage temperature: -25 ... 60 °C
 Number of safety outputs (OSSDs): 2
 Safety Output Voltage Drop: < 2.3 V
 PNP Safety Output / Switching Current: 300 mA
 Number of Signal Outputs: 1
 Signal Output Voltage Drop: < 2.5 V
 Signal Output / Switching Current: 100 mA
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Housing Material: Aluminum, powder-coated
 Optic Cover: Plastic, PC
 Degree of Protection: IP65, IP67
 Connection: M12 × 1
 Cable Length: 300 mm
 Safety-relevant Data ESPE Type (EN 61496): 4
 Safety Category (EN ISO 13849-1): 4
 Performance Level (EN ISO 13849-1): PL e
 PFHD: 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1): 20 a
 Safety Integrity Level (EN 61508): SIL3
 Safety Integrity Level (EN 62061): SILCL3
 Scope of delivery: ZEMX001 mounting
 Scope of delivery (Emitter; Receiver): SEMG520; SEMG620
 Function Hand Protection: yes
 Scope of functions: Basic function
