SEMG419 - Safety Light Curtain Set with Basic Protection Features

SEMG419 - Safety Light Curtain Set with Basic Protection Features

SKU: SKU: SEMG419 Download PDF

Variant:
  • SEMG419 - Safety Light Curtain Set with Basic Protection Features
Regular price Now $3,865.00
Regular price BEFORE   $0.00 Sale price Now $3,865.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

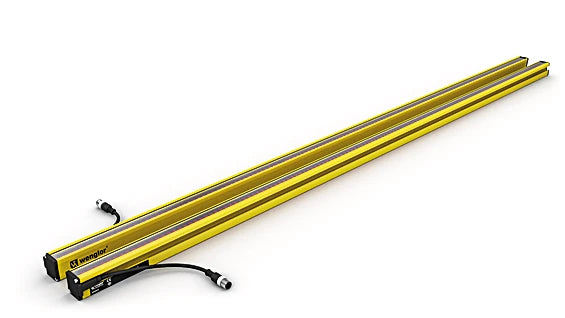

Enhance your safety measures with these versatile safety light curtains, designed to efficiently address fundamental tasks Featuring standard functions such as protection mode, restart inhibition, and monitoring capabilities, these curtains can be effortlessly tailored to meet your needs Their protective field extends seamlessly to the edge of the housing, ensuring effective protection even in tight spaces.

Included in the package is the ZEMX001 mounting angle, providing you with the essential tools for installation These light curtains are your reliable solution for safety in various environments.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

    •Hand Protection.

Specifications:

 Range 0.25 ... 14 m
 Housing Length (L) 1,362 mm
 Safety Field Height (SFH) 1,387 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 12.4 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65/IP67
 Connection M12 × 1
 Cable Length 300 mm
 ESPE Type (EN 61496) 4
 Safety Category (EN ISO 13849-1) 4
 Performance Level (EN ISO 13849-1) PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEMX001 mounting
 Scope of delivery (Emitter; Receiver) SEMG519; SEMG619
 Function Hand Protection yes
 Scope of functions Basic function
