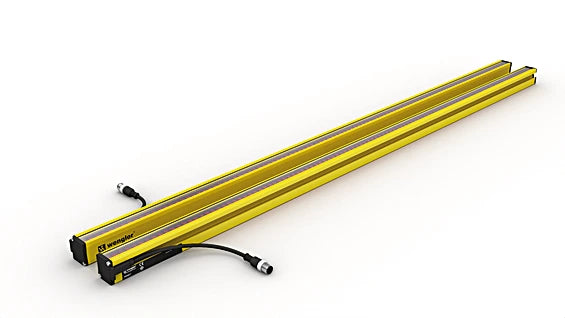

SEMG417 - Safety Light Curtain Set with Adjustable Protection Features

SEMG417 - Safety Light Curtain Set with Adjustable Protection Features

SKU: SEMG417   Download PDF

Select a Variant:
  • SEMG417 - Safety Light Curtain Set with Adjustable Protection Features
Qty:
Now $32.10   Web pricing policy
BEFORE   $0.00 Now $32.10 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our reliable safety light curtains, expertly engineered to tackle essential protection tasks Equipped with standard features such as basic function protection mode, restart inhibit, and protection monitoring, these curtains are straightforward to customize for your needs The protective field seamlessly extends to the limits of the housing, ensuring optimal protection even in tight spaces.

Additionally, the necessary mounting angle ZEMX001 is included with your purchase for easy installation.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

    •Hand Protection.

Specifications:

 Optical Data - Range 0.25 ... 14 m
 Housing Length (L) 1,062 mm
 Safety Field Height (SFH) 1,087 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Electrical Data - Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 10.8 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Mechanical Data - Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1
 Cable Length 300 mm
 Safety-relevant Data - ESPE Type (EN 61496) 4
 Safety Category (EN ISO 13849-1) 4
 Performance Level (EN ISO 13849-1) PL e
 PFHD 1.60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 General Data - Scope of delivery ZEMX001 mounting
 Function Hand Protection yes
 Scope of functions Basic function
