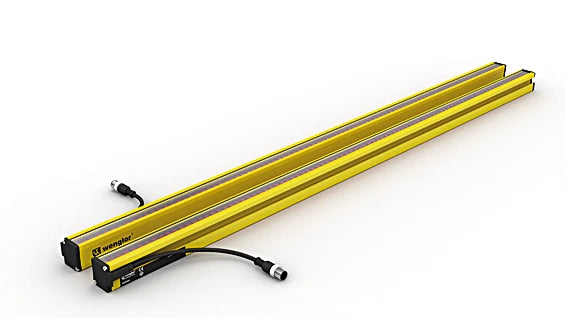

SEMG416 - Versatile Safety Light Curtain Set for Confined Spaces

SEMG416 - Versatile Safety Light Curtain Set for Confined Spaces

SKU: SEMG416 Download PDF

Variant:
  • SEMG416 - Versatile Safety Light Curtain Set for Confined Spaces
Now $29.90
BEFORE   $0.00 Now $29.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the perfect solution for safety with our reliable light curtains, expertly designed to handle a variety of essential tasks Equipped with standard functions including protection mode, restart inhibition, and monitoring capabilities, these curtains can be effortlessly configured to meet your needs The protective field extends seamlessly to the edge of the housing, allowing for efficient safety measures even in tight spaces.

Plus, the package includes the appropriate mounting angle (ZEMX001) to streamline installation.

Features and Benefits:

    •Easy configuration via wiring.

    •Slim design for easy integration.

    •Quick alignment through visible red light.

    •Protection field over the entire length of the housing for an installation without protrusion.

    •Hand Protection.

Specifications:

 Optical Range 0.25 ... 14 m
 Housing Length (L) 912 mm
 Safety Field Height (SFH) 927 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 9.9 ms
 Temperature Range -25 ... 55 °C
 Storage temperature -25 ... 60 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop < 2.3 V
 PNP Safety Output / Switching Current 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, powder-coated
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1
 Cable Length 300 mm
 Safety-relevant Data ESPE Type (EN 61496) 4
 Safety Category (EN ISO 13849-1) 4
 Performance Level (EN ISO 13849-1) PL e
 PFHD 1,60 × E-8 1/h
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEMX001 mounting
 Scope of delivery (Emitter; Receiver) SEMG516; SEMG616
 Function Hand Protection yes
