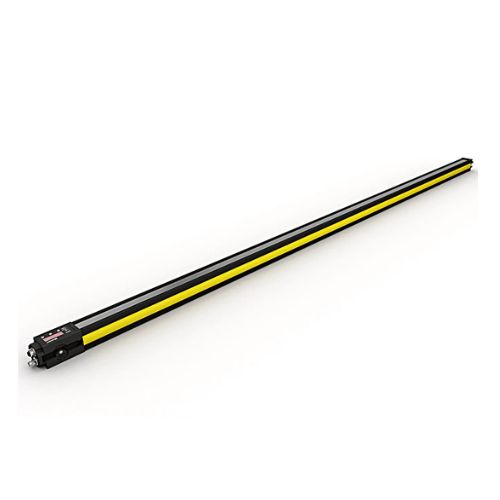

    SEFG661 - Compact Safety Light Curtain with Easy Integration & Visibility

    SEFG661 - Compact Safety Light Curtain with Easy Integration & Visibility

    SKU: SEFG661   Download PDF

    Select a Variant:
    • SEFG661 - Compact Safety Light Curtain with Easy Integration & Visibility
    Qty:
    Now $3,366.00   Web pricing policy
    BEFORE   $0.00 Now $3,366.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Introducing our innovative safety light curtain, designed for seamless integration into various systems due to its smart mounting technology and compact design The visible red light and signal strength indicator make the alignment of the emitter and receiver straightforward With the intuitive wTeach2 software, configuring settings and conducting diagnostics via the IO-Link interface is a breeze You can easily save your configurations to a microSD card for quick duplication across multiple devices.

    This safety light curtain also features comprehensive muting functions, ensuring a customized solution for efficiently and safely managing the transport of objects in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range 0.25 ... 20 m
     Housing Length 1760 mm
     Safety Field Height 1662 mm
     Resolution 30 mm
     Light Source Red Light
     Max Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption ≤ 350 mA
     Response Time 17.2 ms
     Temperature Range -30 ... 55 °C
     Storage Temperature -30 ... 70 °C
     Number of Safety Outputs 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     ESPE Type 4
     Performance Level Cat. 4 PL e
     PFHD ≤ 1.8 × 10-8
     Mission Time 20 a
     Safety Integrity Level SIL3
     Safety Integrity Level (EN 62061) SILCL3
