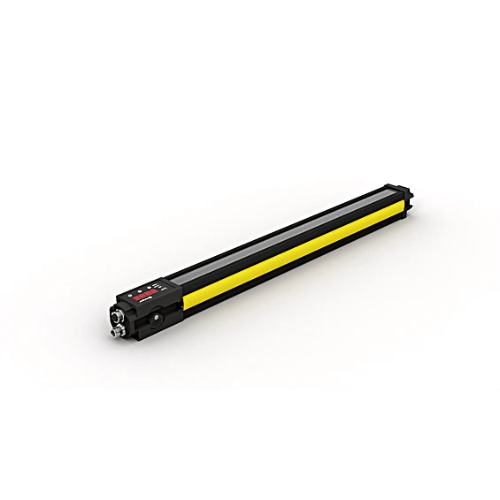

    SEFG655 - Flexible Safety Light Curtain with Red Alignment Indicator

    SEFG655 - Flexible Safety Light Curtain with Red Alignment Indicator

    SKU: SEFG655   Download PDF

    Select a Variant:
    • SEFG655 - Flexible Safety Light Curtain with Red Alignment Indicator
    Qty:
    Now $23.00   Web pricing policy
    BEFORE   $0.00 Now $23.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Experience seamless integration with the safety light curtain, designed with a thoughtful mounting system and a compact design The visible red light aids in easy alignment between the emitter and receiver, while the signal strength indicator adds convenience The intuitive wTeach2 software streamlines settings and diagnostics via the IO-Link interface, making adjustments a breeze You can also save configurations to a microSD card for quick replication across multiple units.

    With a variety of muting options, this system provides optimal safety solutions for efficiently moving objects in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range: 0.25 ... 20 m
     Housing Length (L): 859 mm
     Safety Field Height (SFH): 760 mm
     Resolution: 30 mm
     Light Source: Red Light
     Max. Ambient Light: 10,000 Lux
     Opening Angle: ± 2.5 °
     Sensor Type: Receiver
     Supply Voltage: 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V): ≤ 350 mA
     Response Time: 11.8 ms
     Temperature Range: -30 ... 55 °C
     Storage temperature: -30 ... 70 °C
     Number of safety outputs (OSSDs): 2
     Safety Output Voltage Drop: ≤ 2.3 V
     PNP Safety Output/Switching Current: ≤ 300 mA
     Number of Signal Outputs: 1
     Signal Output Voltage Drop: < 2.5 V
     Signal Output/Switching Current: < 100 mA
     Short Circuit Protection: yes
     Overload Protection: yes
     Interface: IO-Link V1.1
     Protection Class: III
     Housing Material: Aluminum, anodised
     Optic Cover: Plastic, PC
     Degree of Protection: IP65, IP67
     Connection: M12 × 1; 8-pin
     ESPE Type (EN 61496): 4
     Performance Level (EN ISO 13849-1): Cat. 4 PL e
     PFHD: ≤ 1.8 × 10-8
     Mission Time TM (EN ISO 13849-1): 20 a
     Safety Integrity Level (EN 61508): SIL3
     Safety Integrity Level (EN 62061): SILCL3
