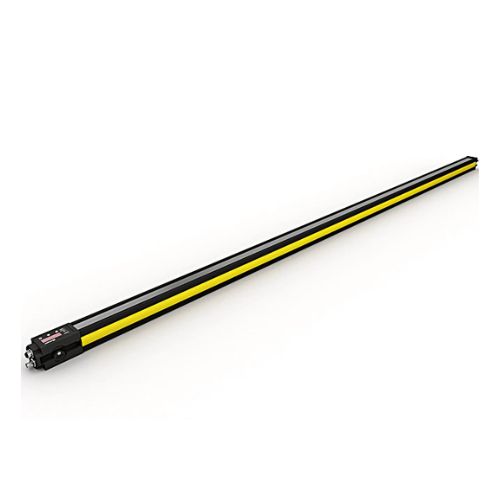

    SEFG641 - Versatile Safety Light Curtain with Easy Setup and IO-Link Functionality

    SEFG641 - Versatile Safety Light Curtain with Easy Setup and IO-Link Functionality

    SKU: SEFG641   Download PDF

    Select a Variant:
    • SEFG641 - Versatile Safety Light Curtain with Easy Setup and IO-Link Functionality
    Qty:
    Now $5,454.00   Web pricing policy
    BEFORE   $0.00 Now $5,454.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Experience seamless integration with the safety light curtain, designed for adaptable installation in various systems Its compact housing and innovative mounting technology allow for easy setup The emitter and receiver alignment is enhanced by a visible red light indicator and a signal strength display for straightforward operation Utilizing the user-friendly wTeach2 software, adjusting settings and performing diagnostics via the IO-Link interface is a breeze.

    Users can conveniently save configurations to a microSD card for quick replication across multiple units With a range of blanking and muting options, this light curtain provides a tailored solution for safely managing the movement of objects in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Optical Data - Range 0.25 ... 7 m
     Housing Length (L) 1,760 mm
     Safety Field Height (SFH) 1,662 mm
     Resolution 14 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Electrical Data - Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 27 ms
     Response time (special) 40 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Mechanical Data - Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     Safety-relevant Data - ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
     General Data - Scope of delivery ZEFX001 mounting
     Function - Finger Protection yes
     Scope of functions Muting and blanking
     Output IO-Link yes
