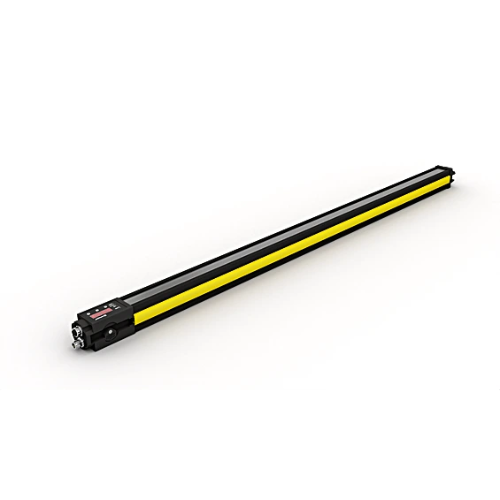

    SEFG640 - Flexible Safety Light Curtain with User-Friendly Setup

    SEFG640 - Flexible Safety Light Curtain with User-Friendly Setup

    SKU: SEFG640   Download PDF

    Select a Variant:
    • SEFG640 - Flexible Safety Light Curtain with User-Friendly Setup
    Qty:
    Now $5,125.00   Web pricing policy
    BEFORE   $0.00 Now $5,125.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Enhance your safety protocols with this innovative safety light curtain Its compact design and versatile mounting technology make it easy to integrate into various systems Alignment is made simple with a visible red light and a signal strength indicator, facilitating precise setup of the emitter and receiver The intuitive wTeach2 software allows for effortless configuration and diagnostics through the IO-Link interface.

    Plus, you can conveniently save settings to a microSD card for quick application on multiple units With a range of blanking and muting options, this safety curtain provides tailored solutions to securely manage object transport in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range 0.25 ... 7 m
     Housing Length (L) 1,610 mm
     Safety Field Height (SFH) 1,511 mm
     Resolution 14 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 25.2 ms
     Response time (special) 37.3 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
     Scope of delivery ZEFX001 mounting
     Function Finger Protection yes
     Scope of functions Muting and blanking
     Output IO-Link yes
